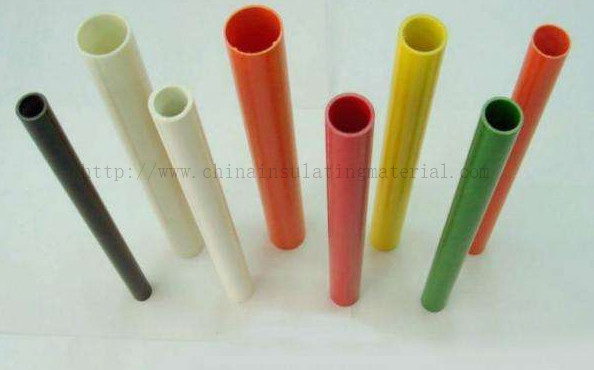

FRP Pultruded Profile Composite Round Tube Insulation Material

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
Frp pultruded profile composite round tube
Material
Fiberglass Reinforced Plastic & Resin
Maximum Voltage
20KV~100KV
Thermal Rating
200
Product Name
Fiberglass Winding Tube Rod
Resin Type
Polyester / Epoxy Resin
Fiber Type
E-Glass
Diameter
1mm ~ 100mm & Custom
Certificate
ISO9001, SGS, ASTM
Classification
Inorganic Insulation Material
Type
Anti-Corrosion Pultrusion FRP Rods & Tube
Production Capacity
2000meter/Day

Product Description

Processing Technique: FRP Pultrusion production is a continuous production process to produce fiberglass reinforced polymer profiles of any length and constant section. Reinforcement fibers may be roving, continuous mat, woven robing, carbon or others. The fibers are impregnated with polymer matrix (resin, minerals, pigments, additives) and passed through a pre-forming station that produces the stratification necessary to give the profile the desired properties. After the pre-forming step, the resin-impregnated fibers are pulled through a heated die to polymerize the resin.

Key Properties

Corrosion resistance: Resistant to acid, alkalis, salt, and organic solvents; avoids rusting and rotting.
Light weight and high intensity: Density is 1/4 of steel, but intensity exceeds aluminum and common carbon steel.
Inflaming Retarding: Oxygen index above 32; meets engineering fire resistance safety requirements.
Collision & Fatigue Resistance: Keeps original shape after repeated bending.
Age Resistance: Service life more than 20 years with high intensity retention.
Easy Maintenance: Bright colors mixed in resin, no painting needed.

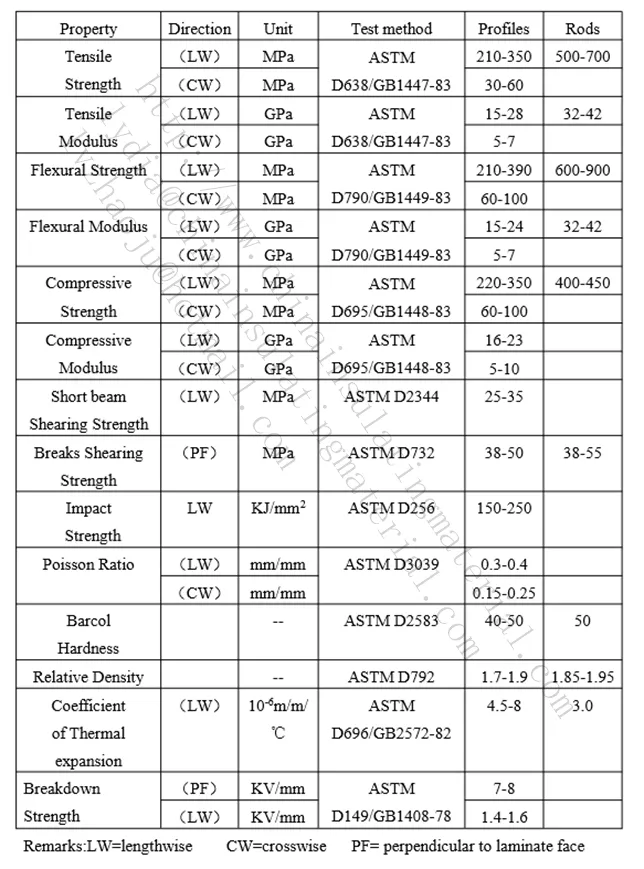

Technical Indicators

Pressure grade Breakdown voltage (V) Volume resistivity Temperature resistance Flame retardancy
Average Minimum
4.0KV 4000 3000 1011 -40ºC~200ºC UL1441 VW-1
7.0KV 7000 5000 1011 -40ºC~200ºC UL1441 VW-1

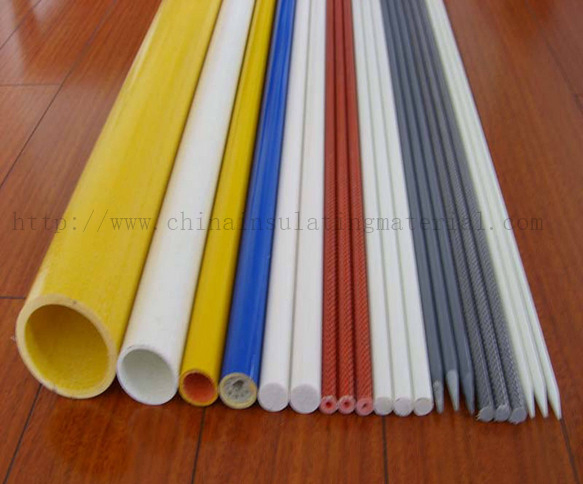

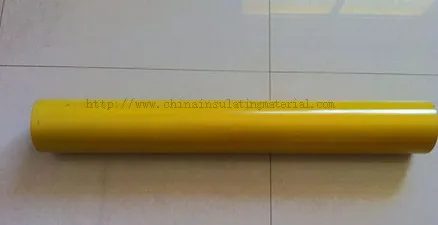

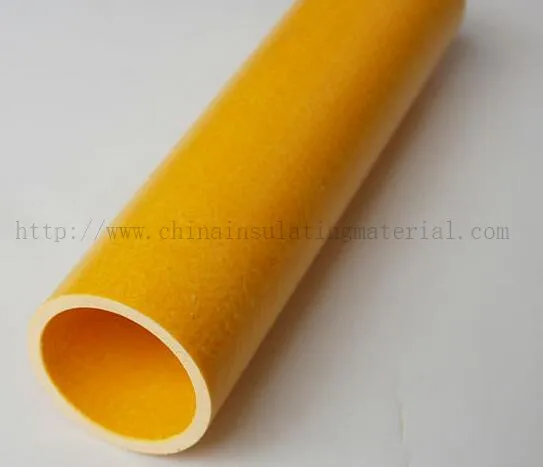

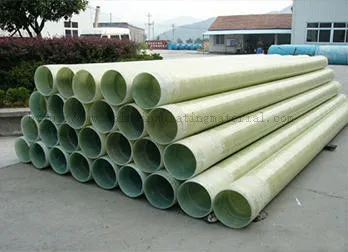

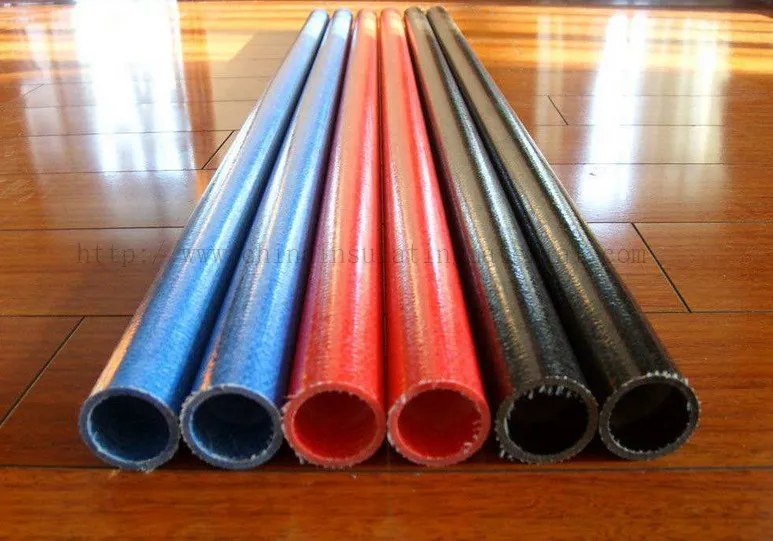

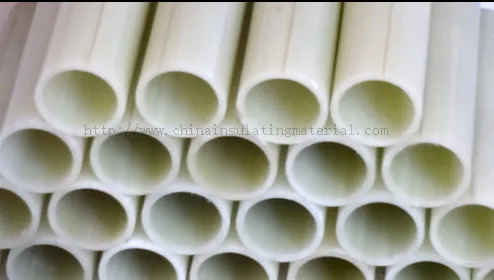

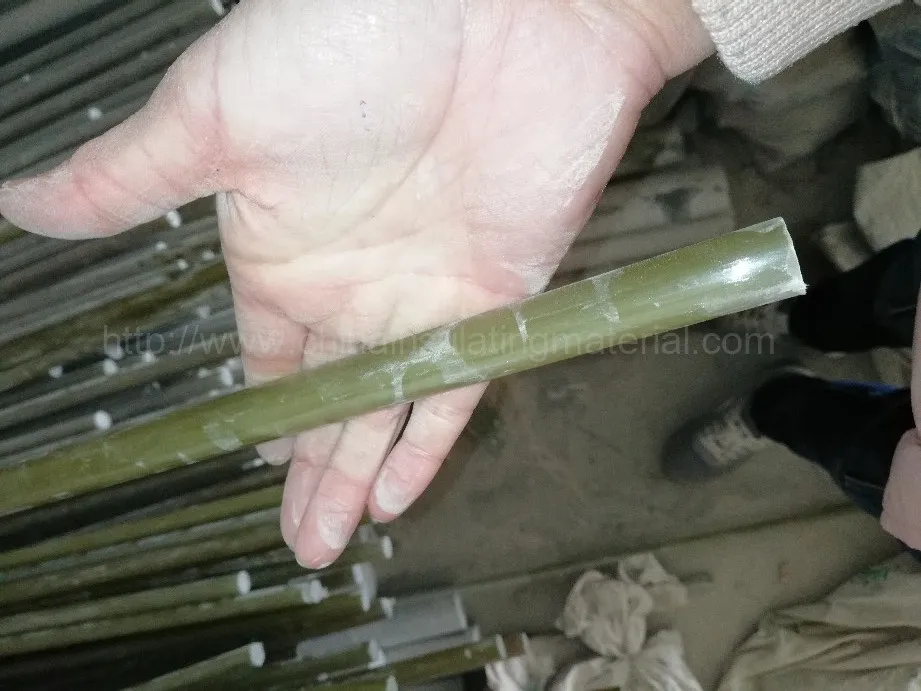

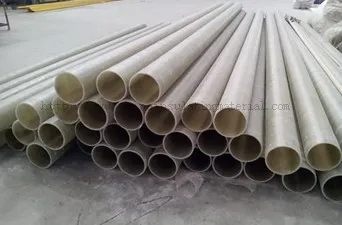

Product Showcase

Packaging & Delivery

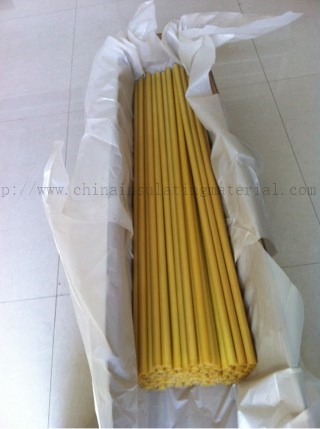

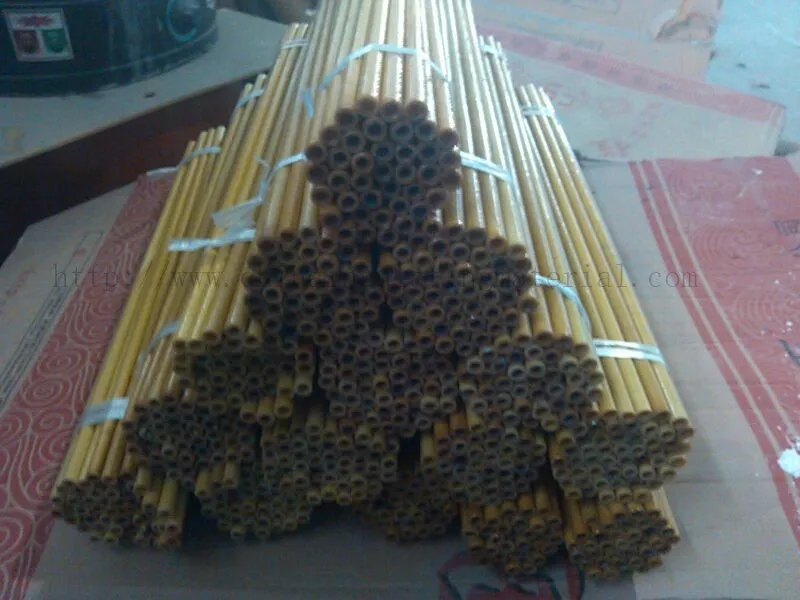

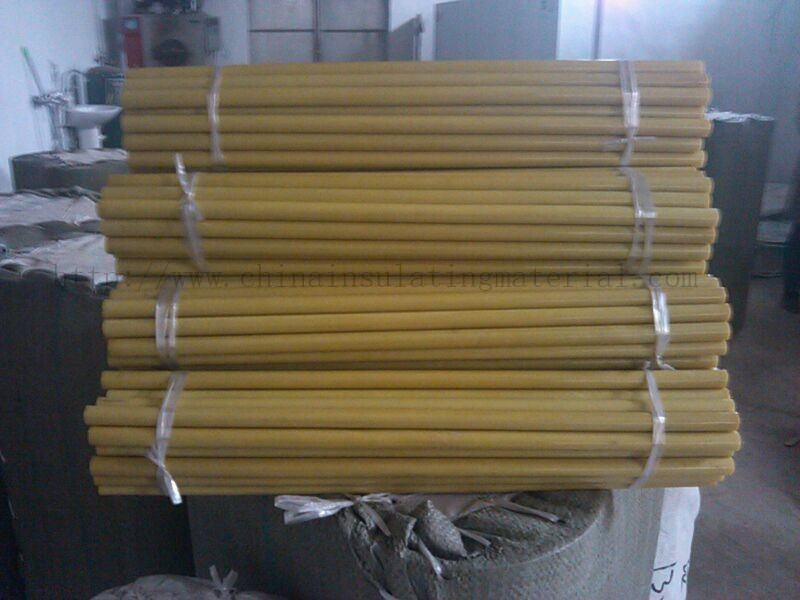

Packaging Details: Packed by bubble membrane, carton, pallet, or according to customer requirement.

Delivery Time: 10-15 days after receiving deposit.

Frequently Asked Questions

1. Are you a Trading Company or Manufacturing Factory?
We are a manufacturer and trading company, providing professional services for overseas customers.
2. Can I get samples for free?
We can supply a few pieces of FREE samples if we have stock. You only need to cover the freight cost.
3. What is the standard delivery time?
Generally 10-15 days based on MOQ. For a 20ft container, it normally takes 30-35 days.
4. How do you guarantee product quality?
We strictly follow the ISO9001:2015 quality control system and have a professional QC team for final inspections.
5. What are the available payment terms?
Mainly T/T, L/C at sight, Western Union, and Alipay.
6. Do you offer OEM services?
Yes, we accept all OEM orders. Just contact us with your design for a reasonable price.
