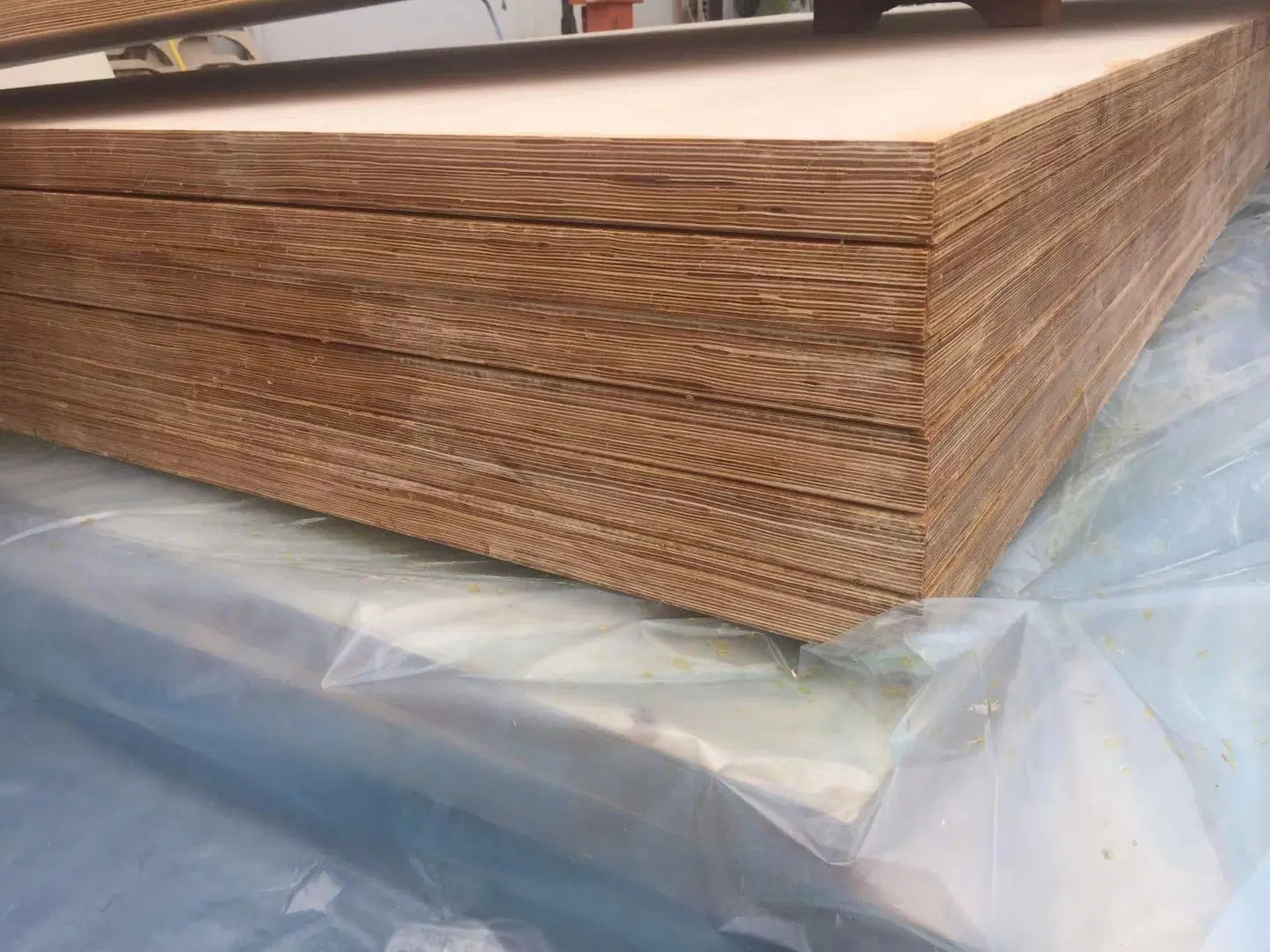

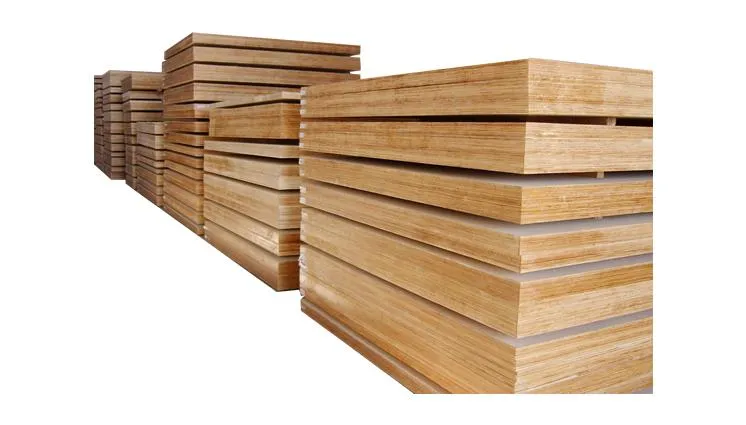

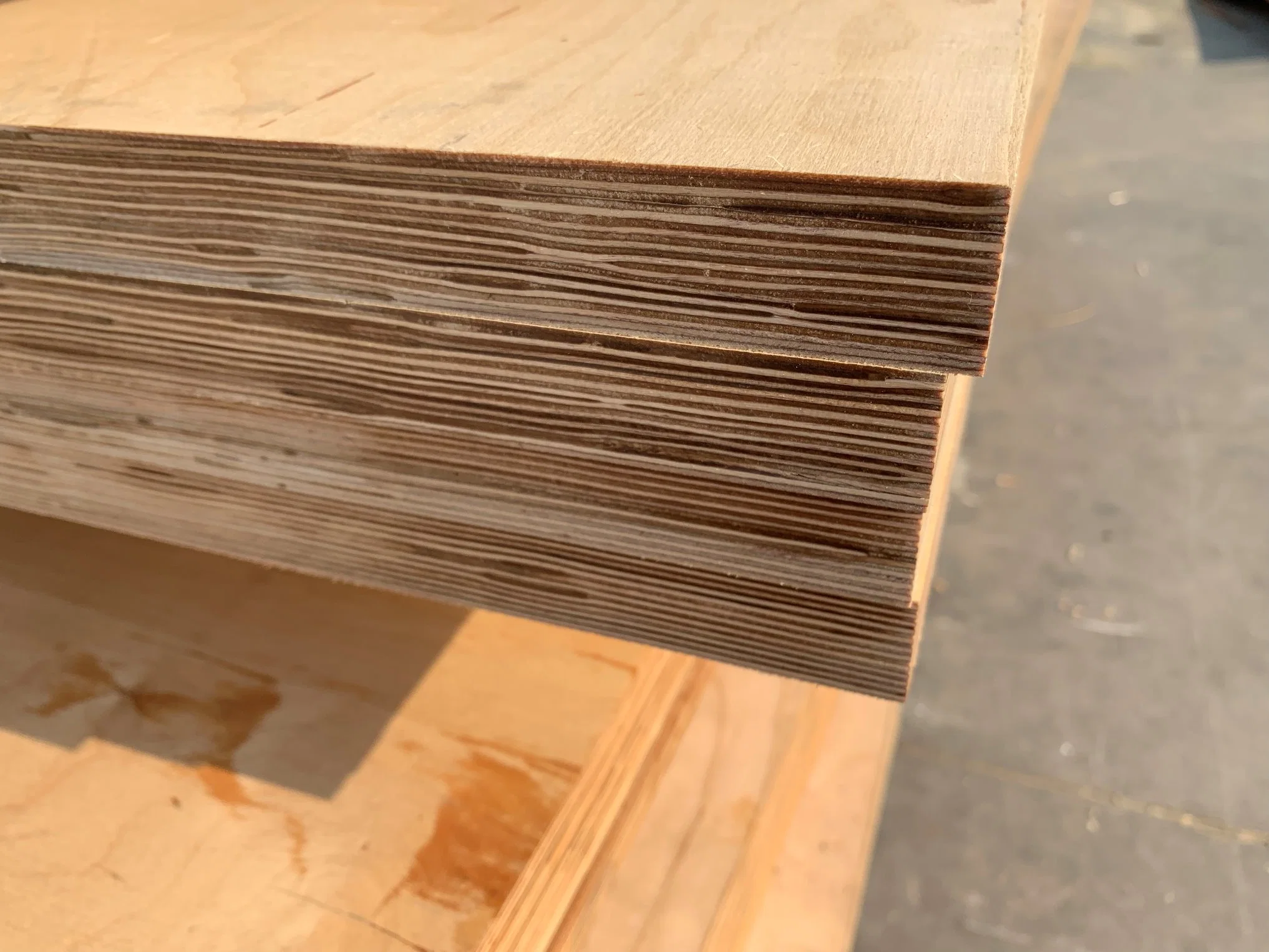

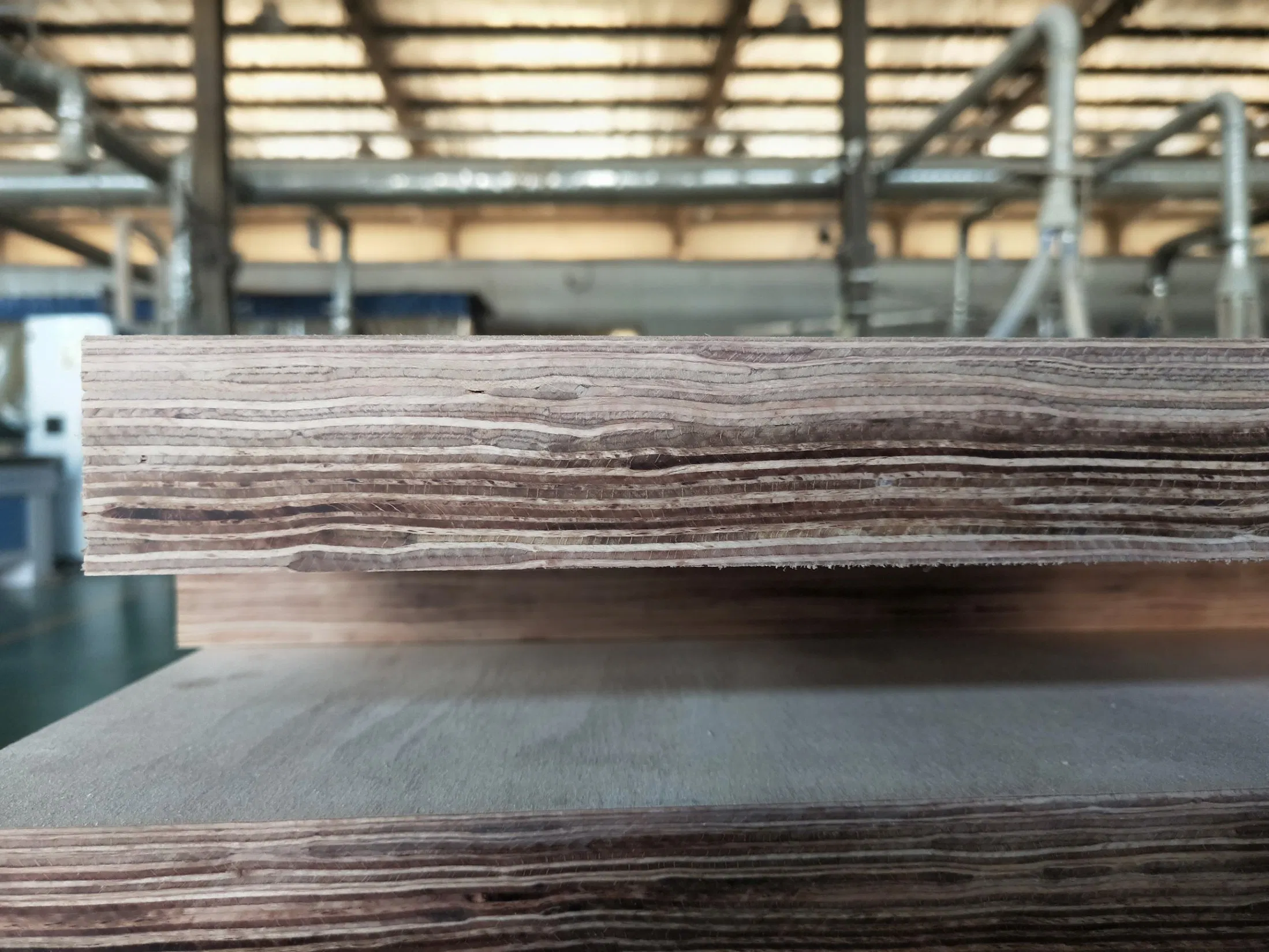

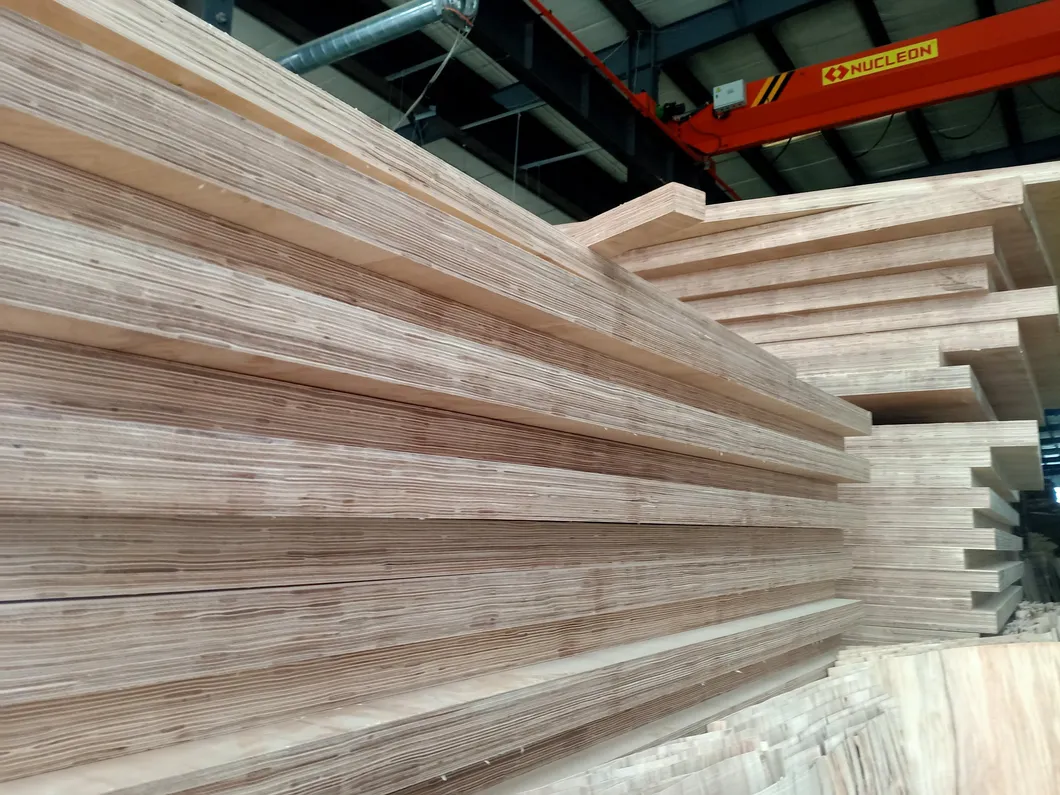

Electrical laminated wood is an essential insulation and supporting material widely utilized in transformers and instrument transformers. It boasts exceptional mechanical strength and superior compatibility with transformer oil, capable of long-term operation in 105ºC transformer oil environments.
Commonly used for pressure plates, spacer blocks in oil-immersed transformers, and clamps in instrument transformers, this material serves as an efficient replacement for steel plates, insulating paper shells, and epoxy paperboards. This substitution significantly reduces both the overall weight of the transformer and material costs.

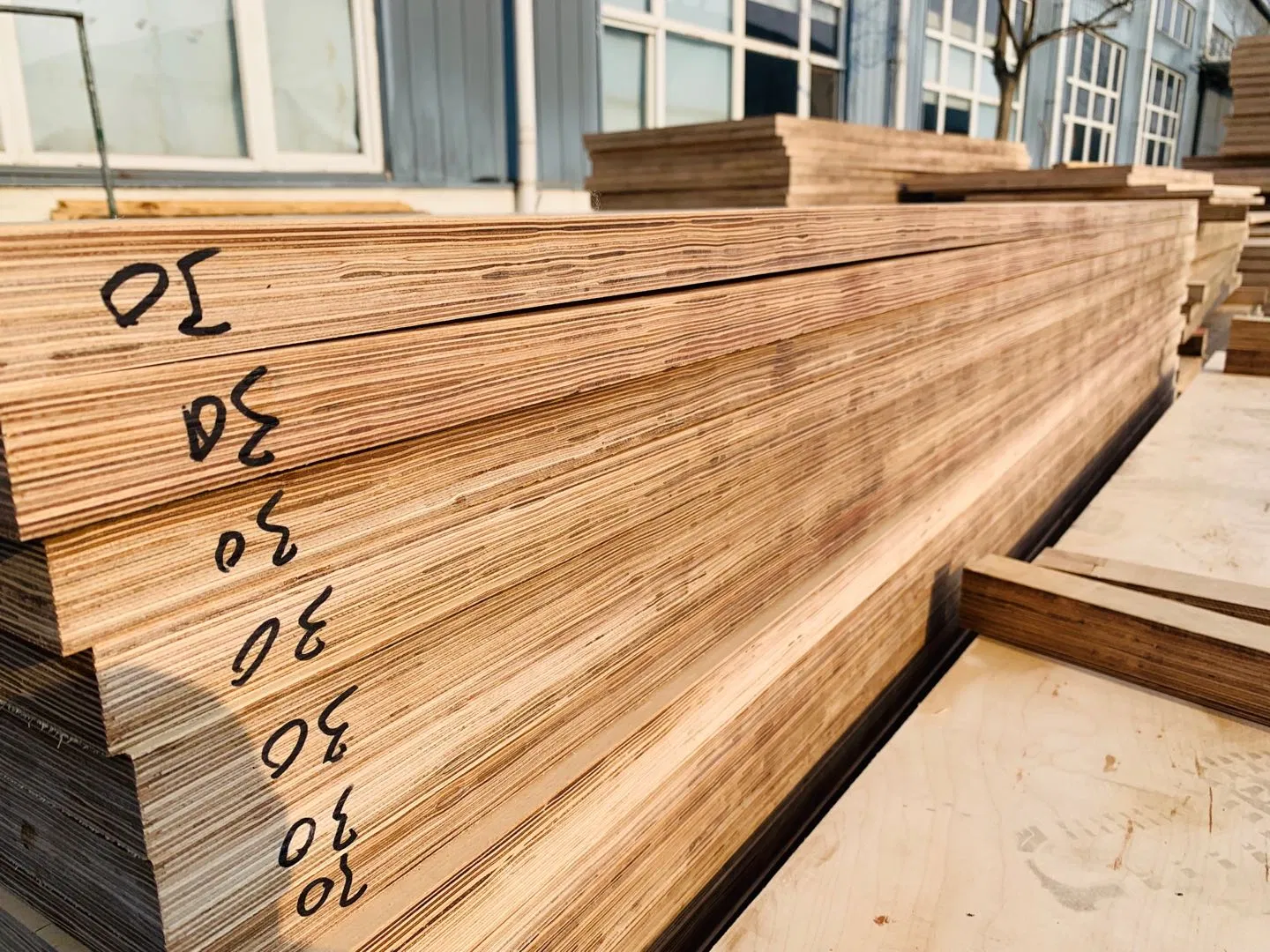

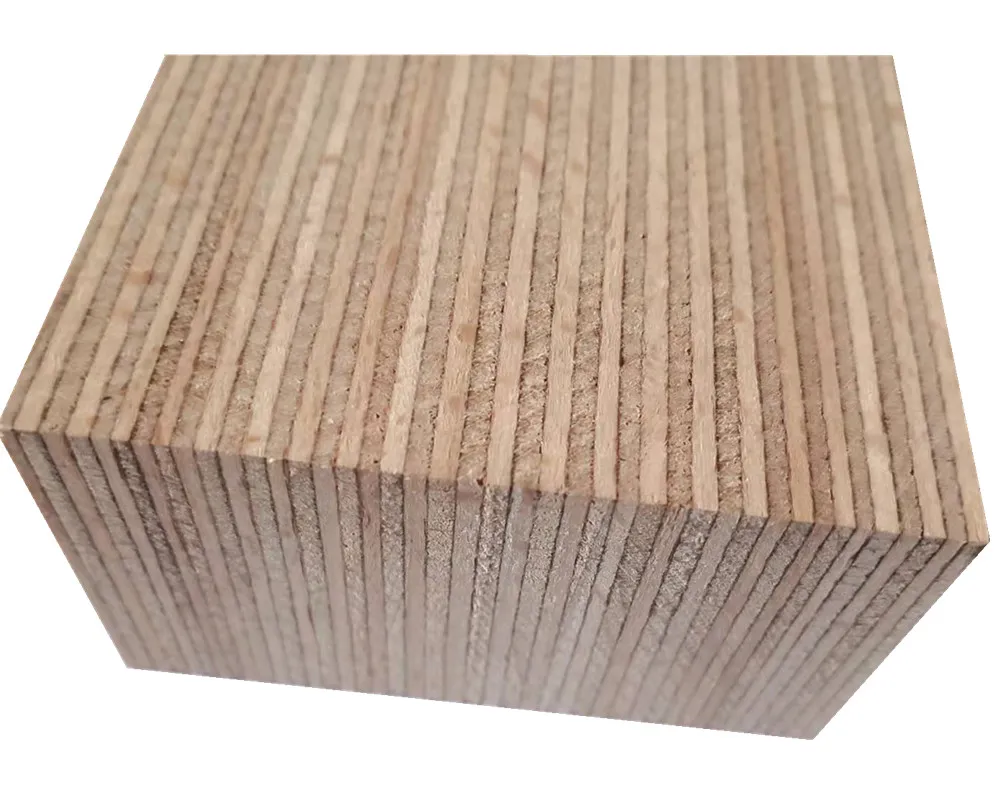

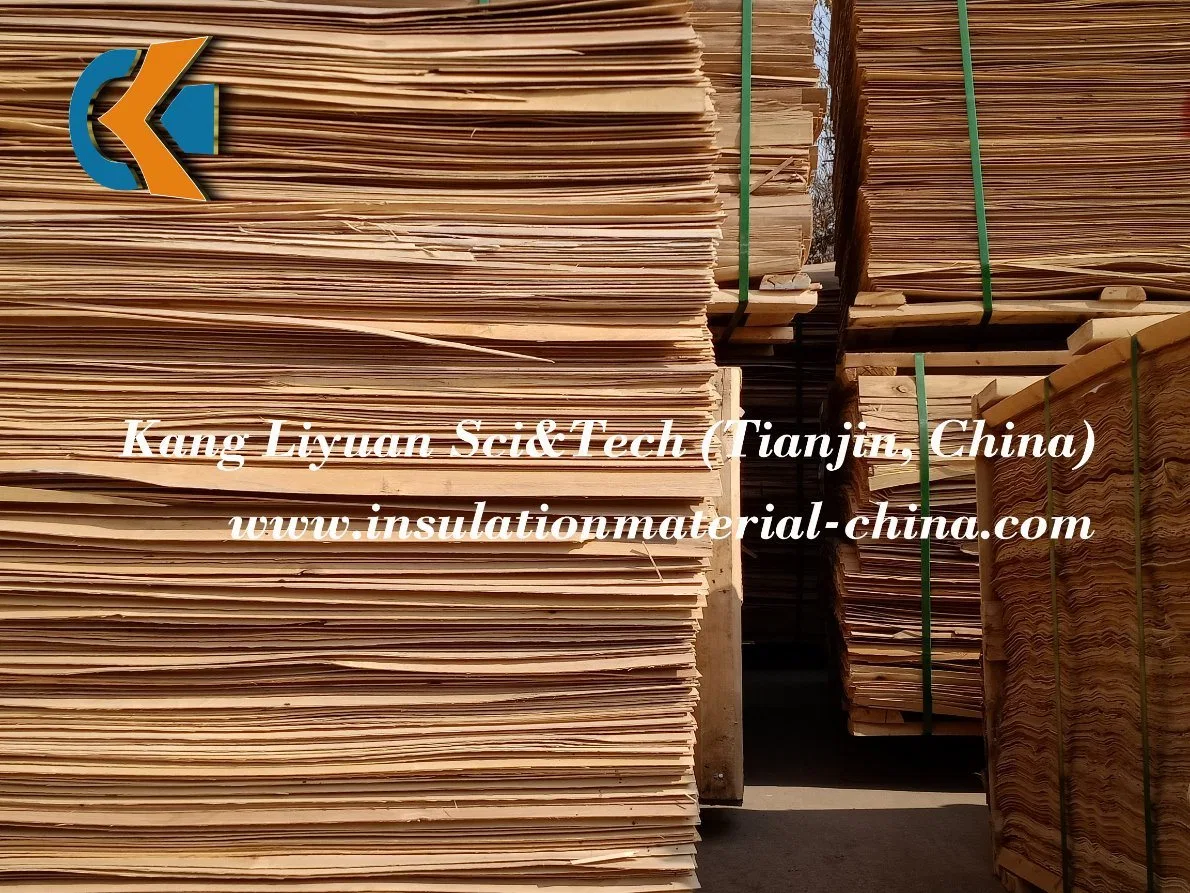

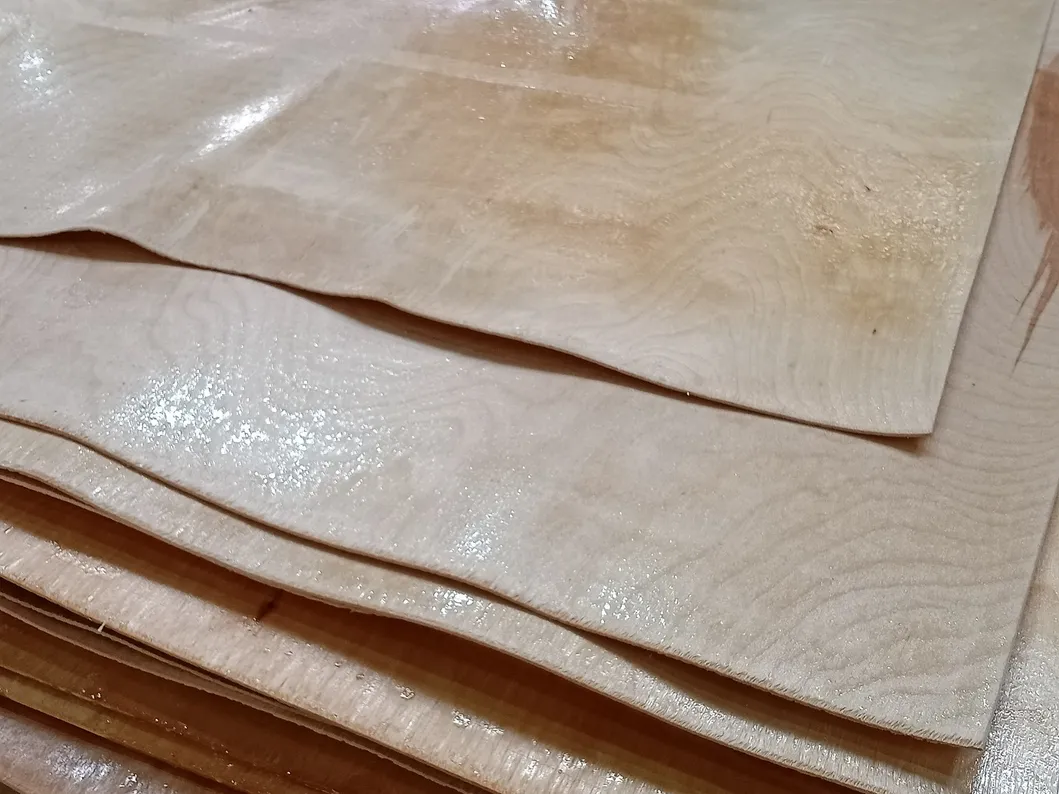

Premium Raw Materials: Crafted from high-quality thin veneers of birch, stained wood, and other premium timber. The product is treated with specialized insulating glue and processed under high-temperature and high-pressure conditions to ensure maximum durability.
| ITEM | DESCRIPTION |
|---|---|
| Product Name | Electrical Laminated Wood, Compression Wood, High Density Wood |
| Shape | Sheets, Block, Board, Customizable |
| Rated Voltage | 500kV |
| Density | 0.9-1.1t/m3 |
| Tensile Strength | ≥80MPa |
| Application | High Voltage, Oil-immersed transformer |
| Moisture Content | ≤6.0% |
| Heat Resistance | High Temperature Resistance 150ºC |
| Standard Sizes | 1500x1000mm, 1000x1500mm, 2000x1000mm (Customizable) |
| Shear Strength | ≥7MPa |

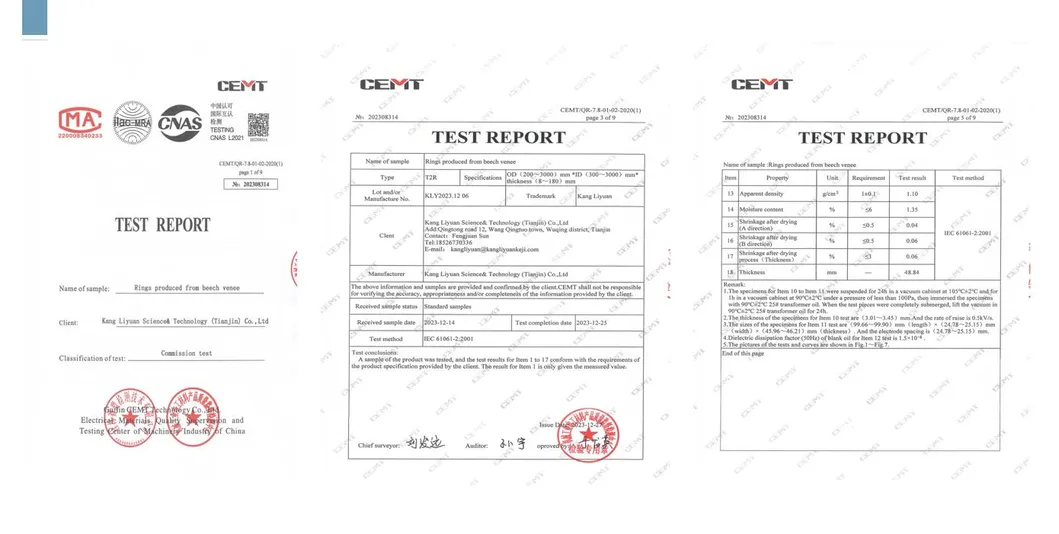

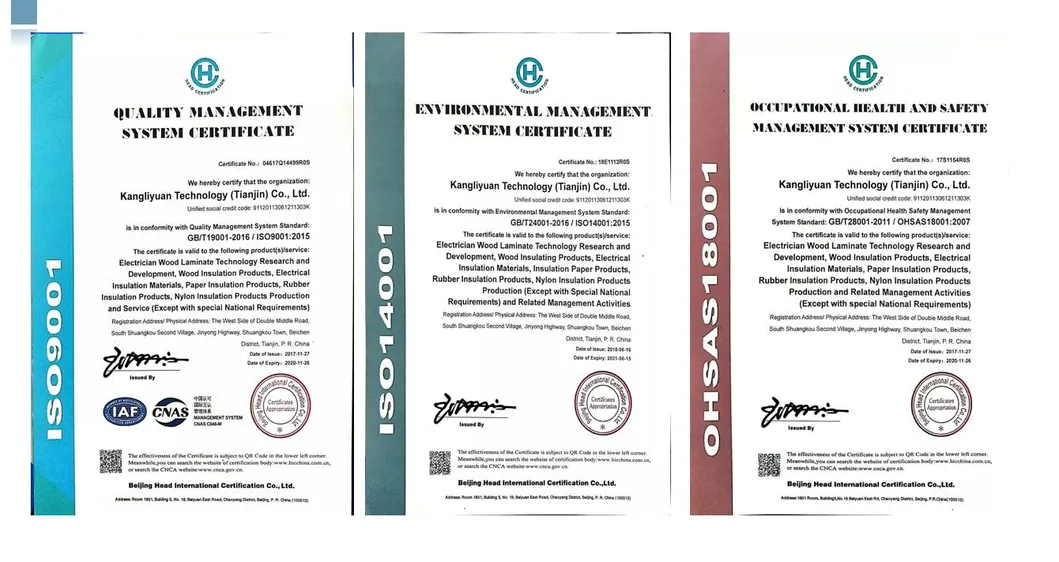

Our manufacturing process adheres to strict quality control standards from design through to final sales. We have passed rigorous quality system certifications, ensuring our products meet national, IEC, and ISO standards.

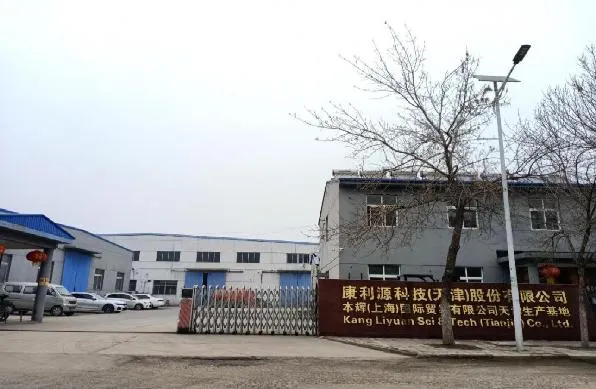

We are a leading provider of insulation materials in the North China region, specializing in birch and beech electrical laminated wood panels. Our products are widely used in electrical control fields, including oil-immersed transformers (10kV-750kV), dry-type transformers, motors, and explosion-proof electrical appliances.
