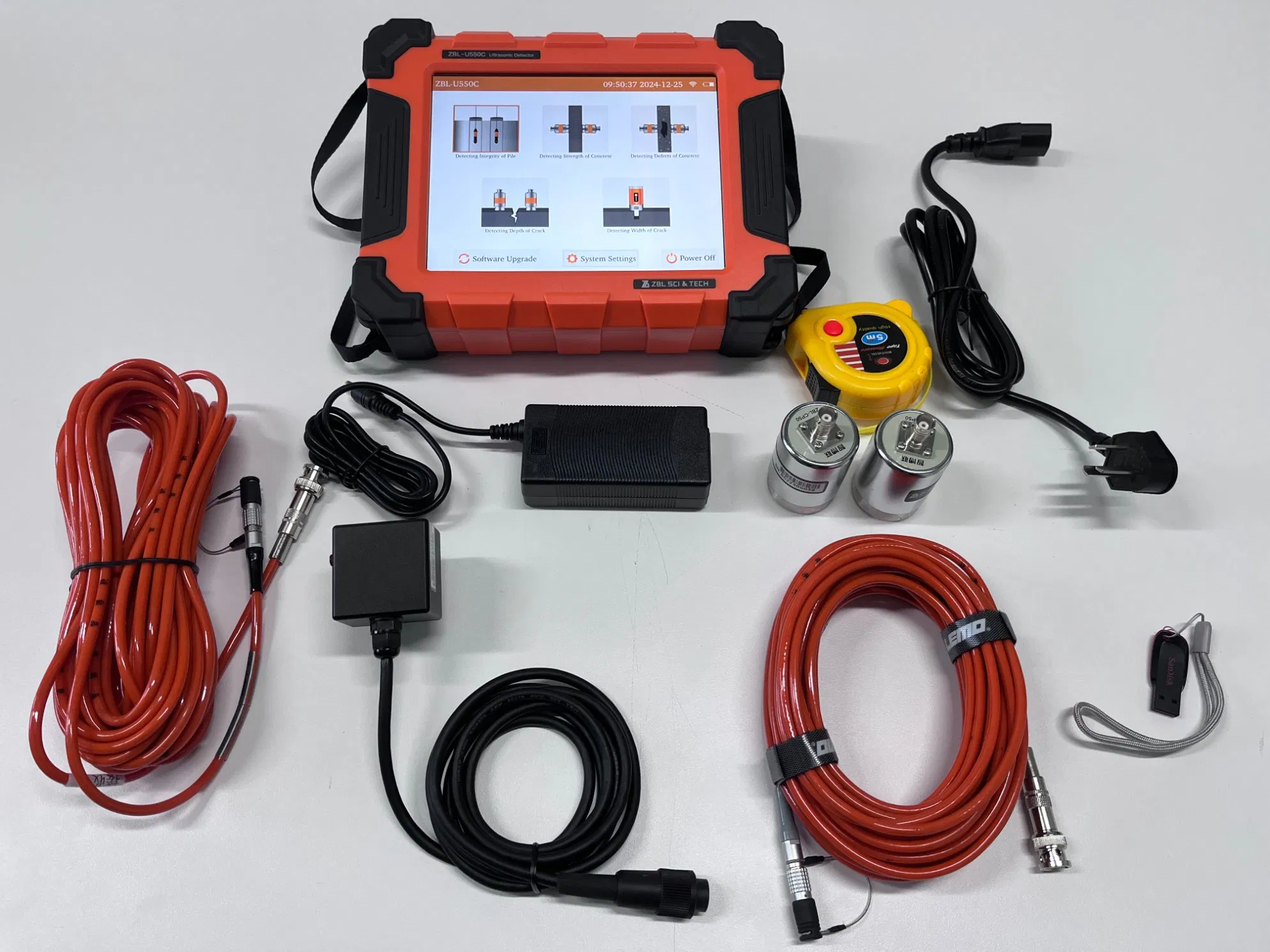

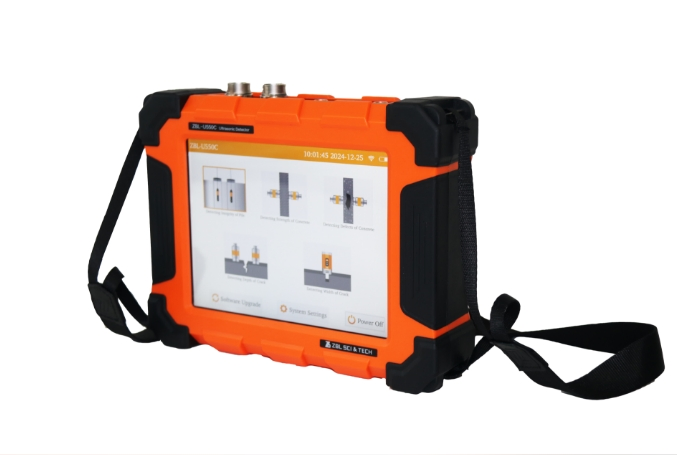

Ultrasonic Non-Destructive Testing (NDT) Device for Concrete

1 / 5

Ultrasonic Non-Destructive Testing (NDT) Device for Concrete

Customization:	Available
After-sales Service:	Factory Supply Service
Warranty:	3 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.:ZBL-U550C

Color:Orange and Black

Certificate:ISO/CE

Battery Type:Built-in Lithium Battery

Specification:7.9 kg / 50*18*40cm

Trademark:ZBL

Capacity:1000 Pieces/Month

HS Code:9031809090

Product Performance & Applications

💡 Performance Characteristics

Stable performance and high cost-effectiveness.

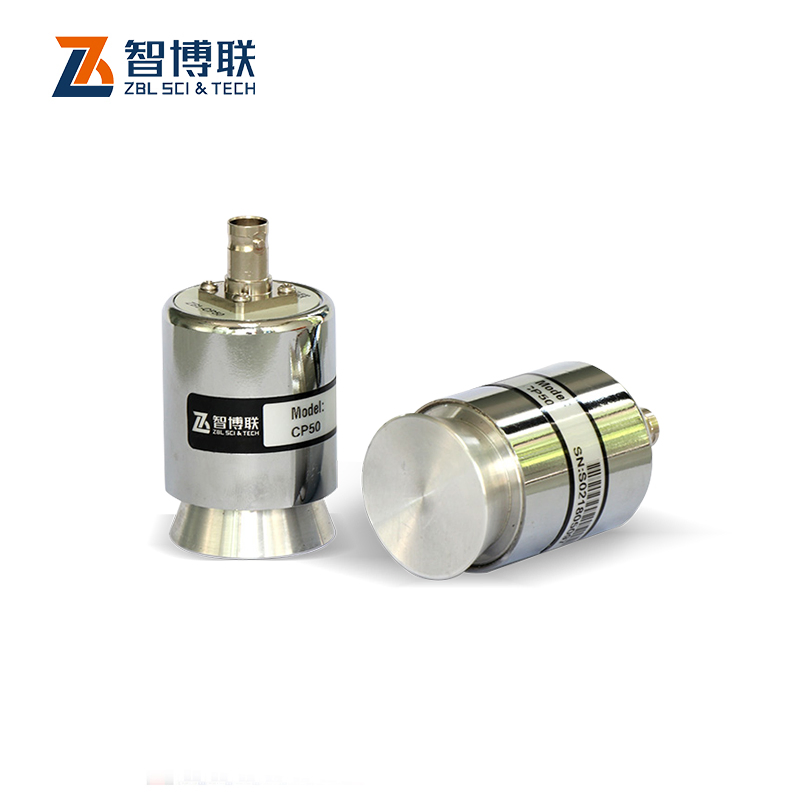

Supports piezoelectric sensors, electric spark sources, and magnetostrictive sensors.
High power transmission with low receiving noise.
Expandable impact echo thickness measurement function.

🛠 Application Areas

Ultrasonic transmission for foundation piles and continuous walls integrity.
Detection of compressive strength, crack depth, width, and concrete defects.
Geological survey and rock integrity evaluation tests.
Single-hole one-shot and two-receiver logging.
Testing non-metallic materials like rock mass and concrete.

Technical Indicators

Project	Index / U550C
Number of channels	Single send double receive
Test sections at the same time	2
Sound time measurement accuracy	0.025 μs
System maximum dynamic range	154 dB
Gain adjustment accuracy	0.5 dB
Amplitude measurement error	≤1 dB
Receiving sensitivity	≤ 10 μV
Sampling period	0.025 ~ 409.6 (μ s)
Waveform points	512 ~ 4096 options
Transmitter voltage	65V, 125V, 500V, 1000V
Bandwidth	1-500 kHz
Seam Width Resolution	Better than 0.006
Seam Width Max Error	±0.02 mm
Working hours	> 5 hours
Machine weight	1.7 kg
Monitor	8 inches TFT High Brightness

Advanced Non-Destructive Testing Devices Since 2002

A leading innovator in non-destructive testing (NDT) equipment, specializing in the R&D, manufacturing, and global distribution of high-precision inspection tools. With a dedicated in-house R&D team, we deliver cutting-edge technology designed for accuracy and durability.

Over 10 Years of Export Experience

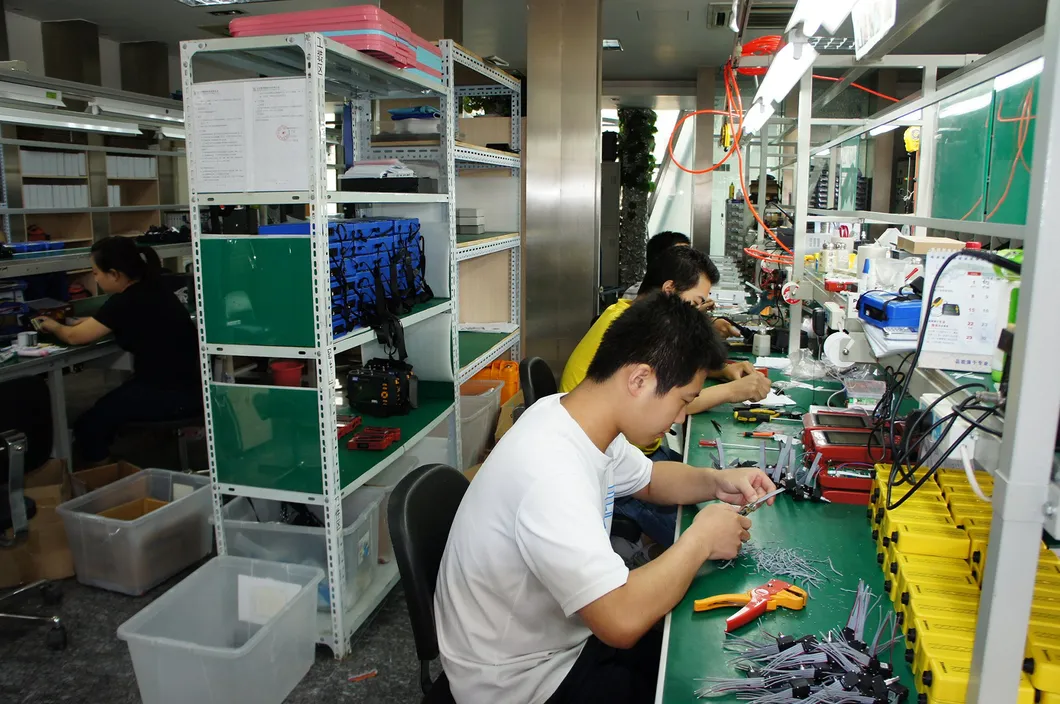

Full-Cycle Manufacturing & Strict Quality Control
CE & ISO Certified Standards
3-Year Warranty for confidence

Product range includes Advanced Rebar Detectors, Ultrasonic Testers, Pile Integrity Test (PIT) Devices, serving construction, aerospace, oil & gas industries.

Frequently Asked Questions

Q1: What types of sensors are compatible with the ZBL-U550C? A: The device supports piezoelectric sensors, electric spark sources, and magnetostrictive sensors, providing versatility for various testing environments.

Q2: How long is the battery life during field operations? A: The built-in rechargeable lithium battery provides over 5 hours of continuous working time.

Q3: Can it be used for measuring crack depths in concrete? A: Yes, it is specifically designed for detecting compressive strength, crack depth, width, and internal defects of structural concrete.

Q4: What is the maximum transmission voltage for the transmitter? A: The transmitter offers multiple voltage options, including 65V, 125V, 500V, and up to 1000V.

Q5: Is the device portable for field work? A: Yes, the machine is highly portable, weighing only 1.7kg (including battery) with a compact volume of 240 x 188 x 60 mm.

Q6: How does the device transfer data? A: It features multiple communication interfaces including a USB port, WiFi, and Bluetooth for seamless data transfer.
