Product Description

iBasic Product Information
Model NO.
SGB001
Material
Coloured Glaze
Type
Bent Tiles
Size
1340*420mm
Color
Blue
Raw Material
Alu-Zinc Steel, Natural Stone Chips, Acrylic Glue
Certificate
Soncap, SGS
Feature
Windproof, Waterproof, Heat Resistance
Production Capacity
20000 pieces/Day
Product Description
Roof Tile Technology

Stone coated metal roof tile utilizes aluminum zinc-plated steel sheet (galvalume steel) as the basement, covered by natural stone chips and secured by acrylic resin glue. This advanced construction material is popular worldwide due to three primary advantages:

1. Lightweight: Only 1/6 of the weight of traditional tiles, making it easy to transport and install.
2. Design Variety: Multiple designs and a wide array of colors are available to suit any architectural style.
3. Durability: Offers a long warranty of up to 50 years.
Roof Tile Structure
📋Technical Specifications
MaterialsGalvalume steel (Aluminum-Zinc plated steel sheet=PPGL)
Colors16 different colors, or customized color
Size1340x420mm
Effect Size1290x370mm
Thickness0.35mm, 0.40mm, 0.45mm, 0.50mm, 0.55mm
Weight2.35-3.20kgs/pc
Coverage0.5sq.m./pc
FeaturesLight Weight, Earthquake Resistant, Wind & Storm Resistant, Noise and Fire Resistant, Heat Insulation

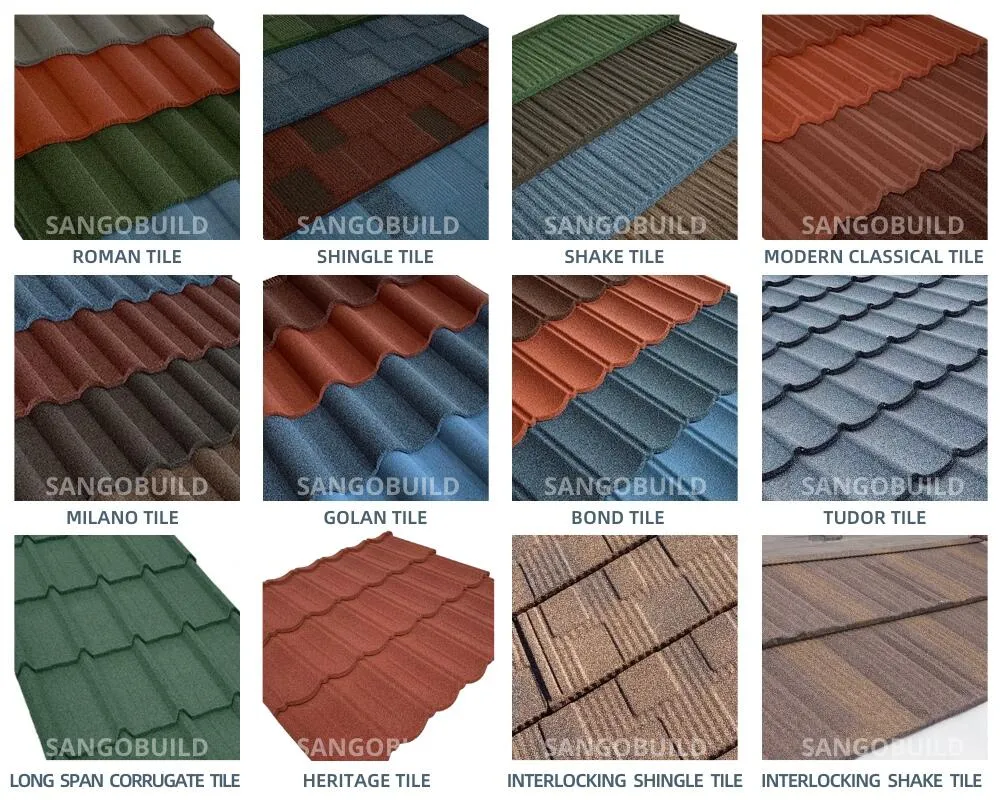

Specifications Detail
🎨Color Chart & Visuals

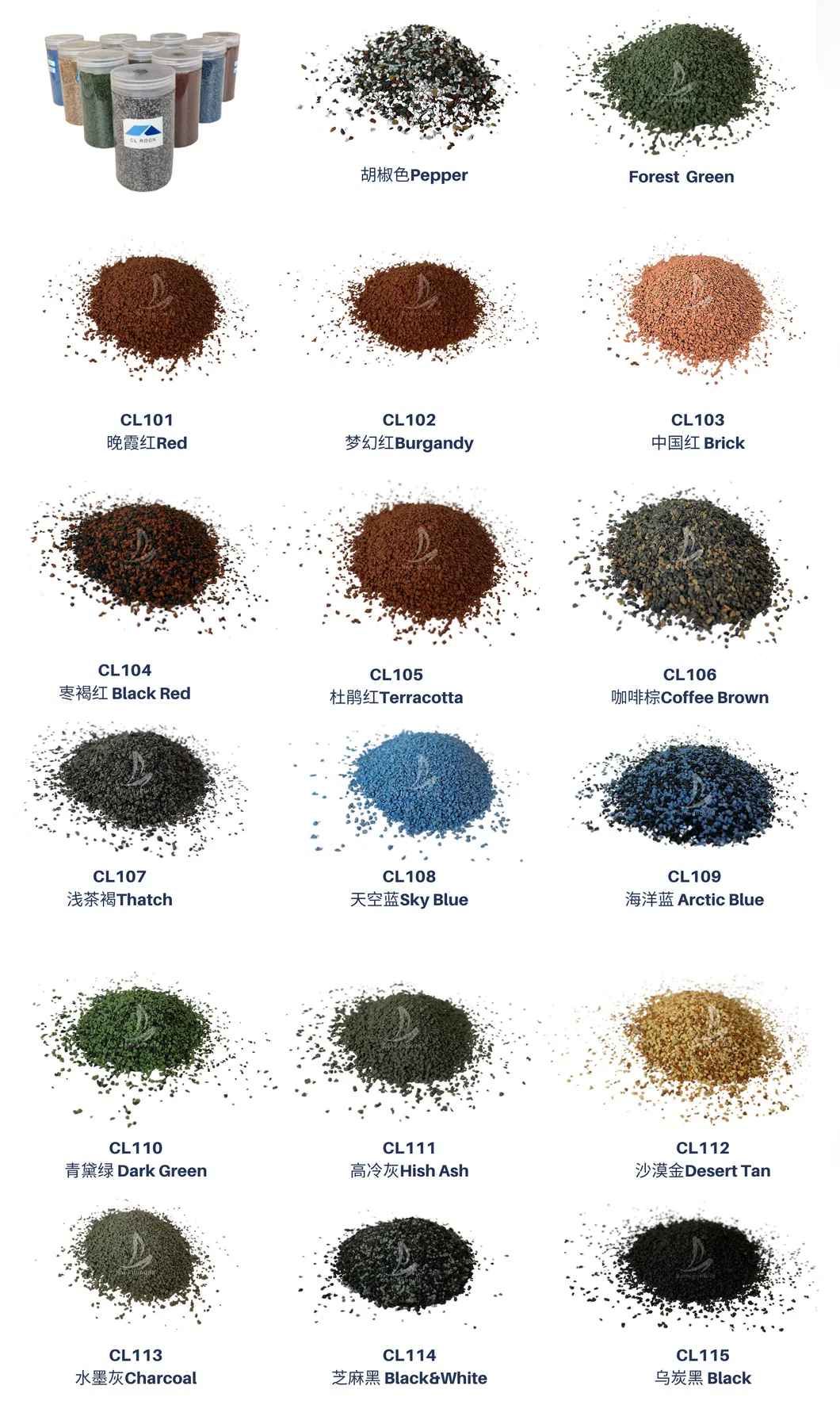

Color Chart 1 Color Chart 2
Premium Material Layers

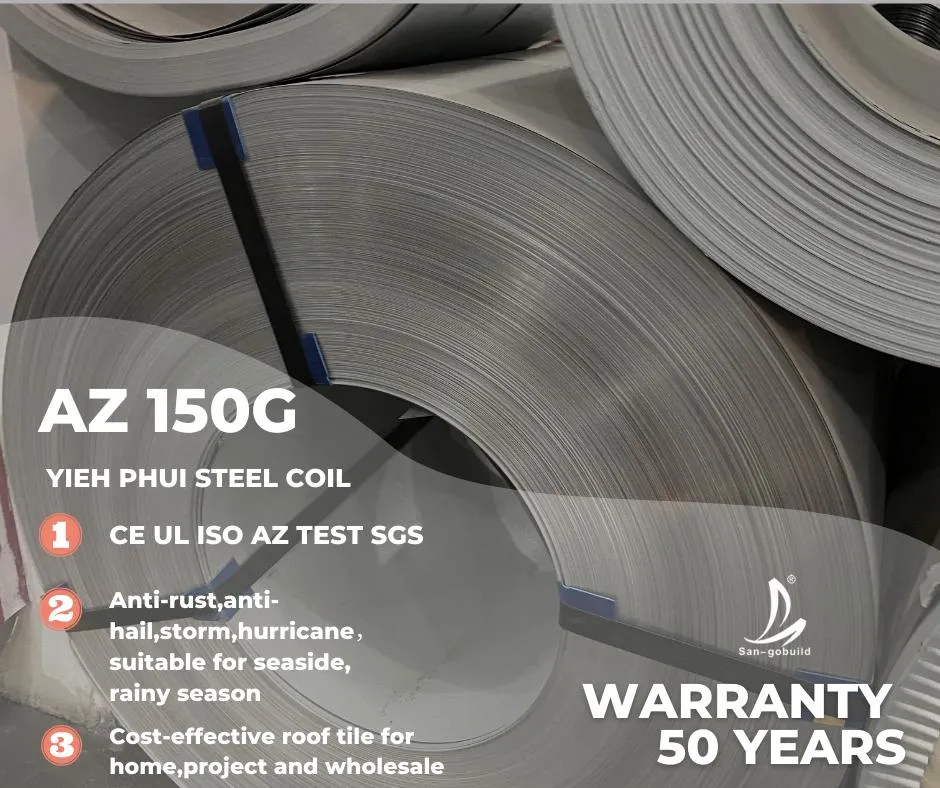

1. Qualified Galvalume Steel

Made of galvalume steel which lasts 6-9 times longer than ordinary galvanized steel.

Galvalume Steel

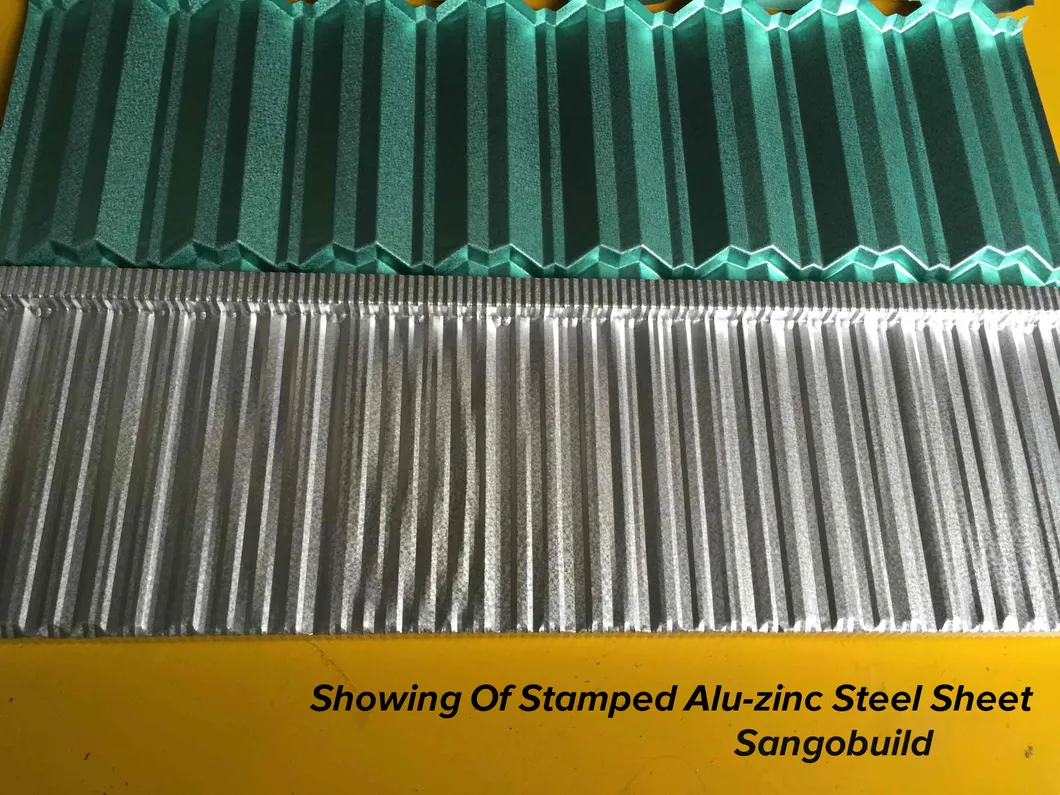

2. Fingerprint Resistant Coating

Extends product life and protects the steel during handling and installation.

Coating

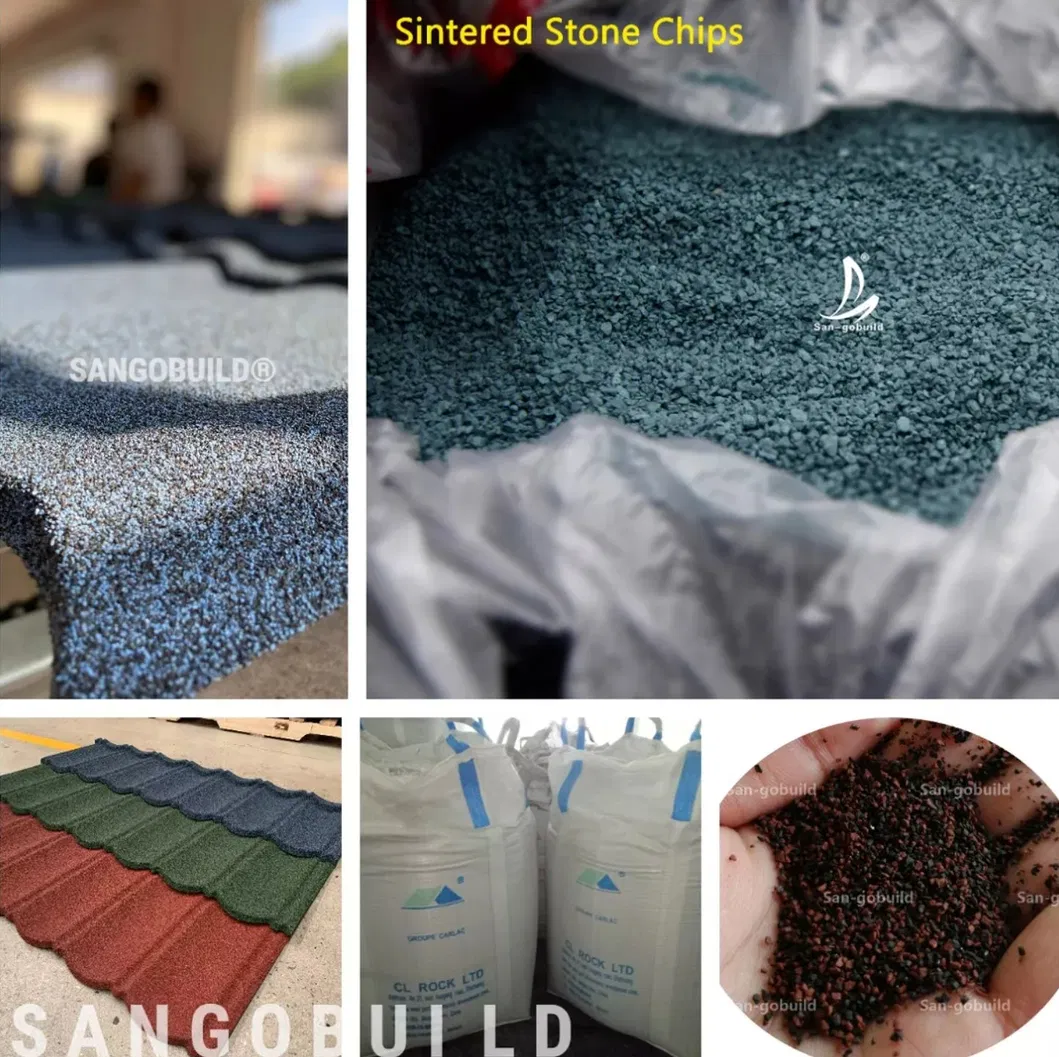

3. Natural Stone Chips

Coated with high-quality natural stone chips for excellent weather resistance and UV protection. 100% fadeless.

Stone Chips

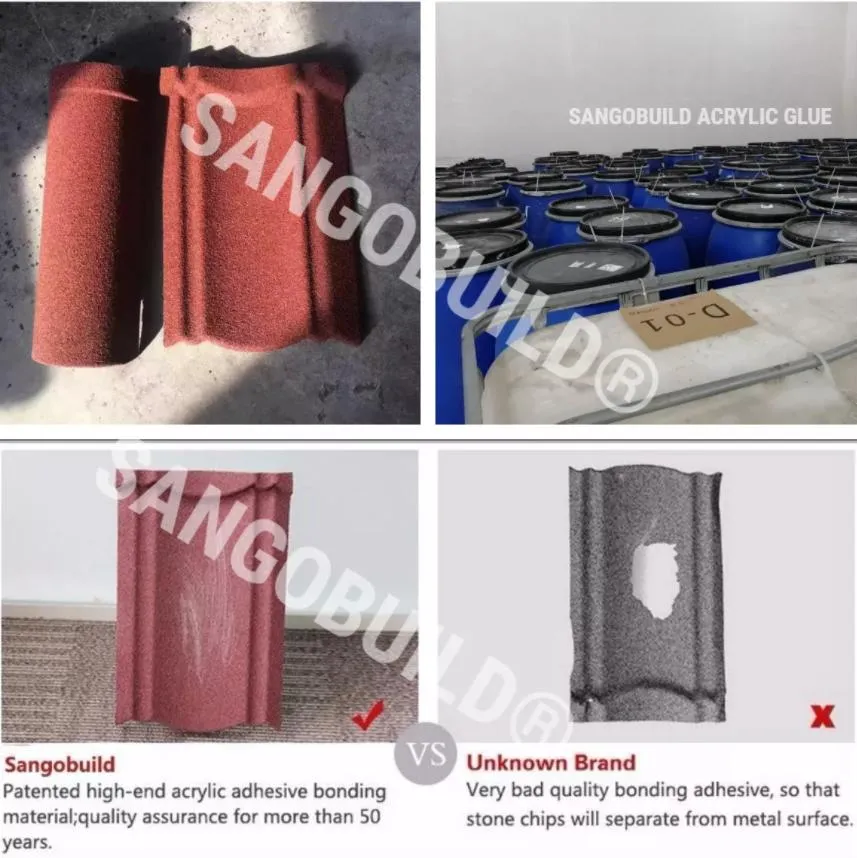

4. Pour Glue Technology

Advanced pour glue technology ensures granules stay in place and maintains color consistency.

Glue Technology
🏗Application & Quality

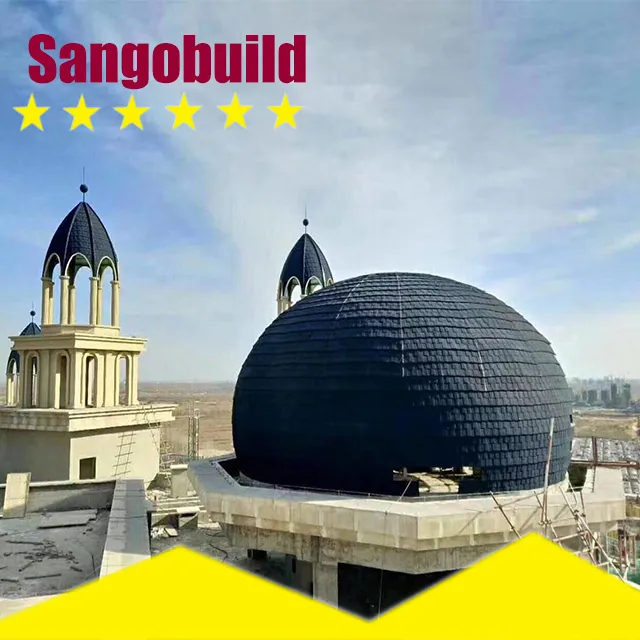

Our stone coated metal roofing products are designed for durability and aesthetic appeal. They are waterproof, heat-insulating, and fire-resistant, making them the first choice for villas, apartments, and commercial constructions. Our products have been exported globally, including Africa, America, Europe, and Southeast Asia.

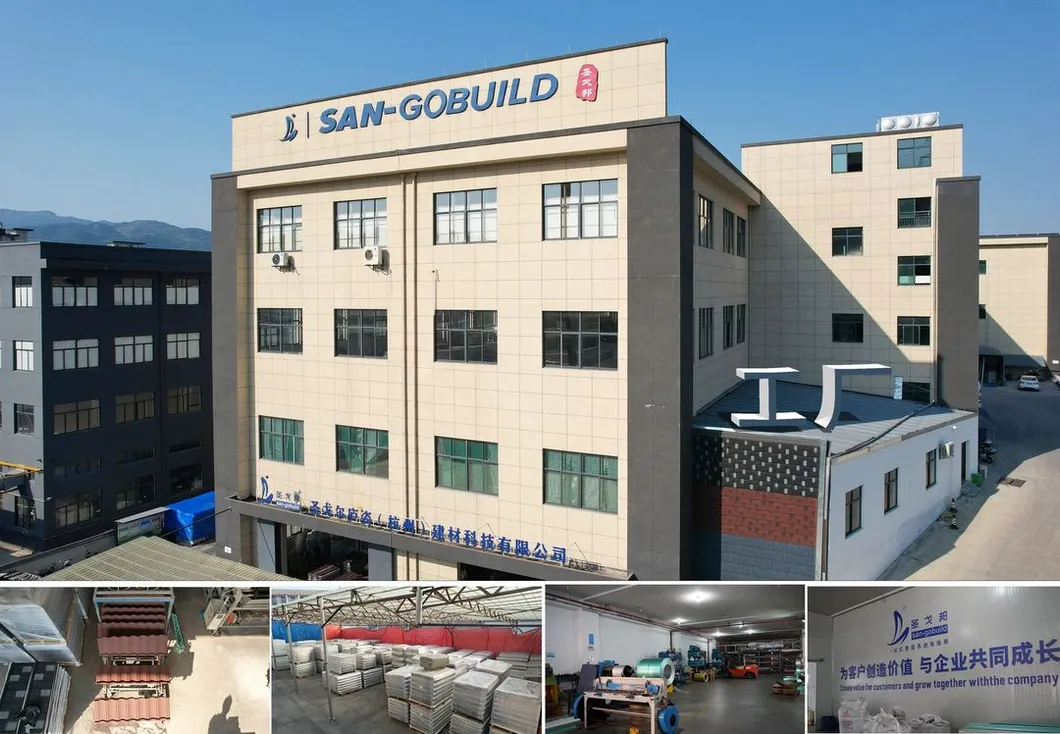

Production
Review 1
Review 2
📦Packing & Delivery

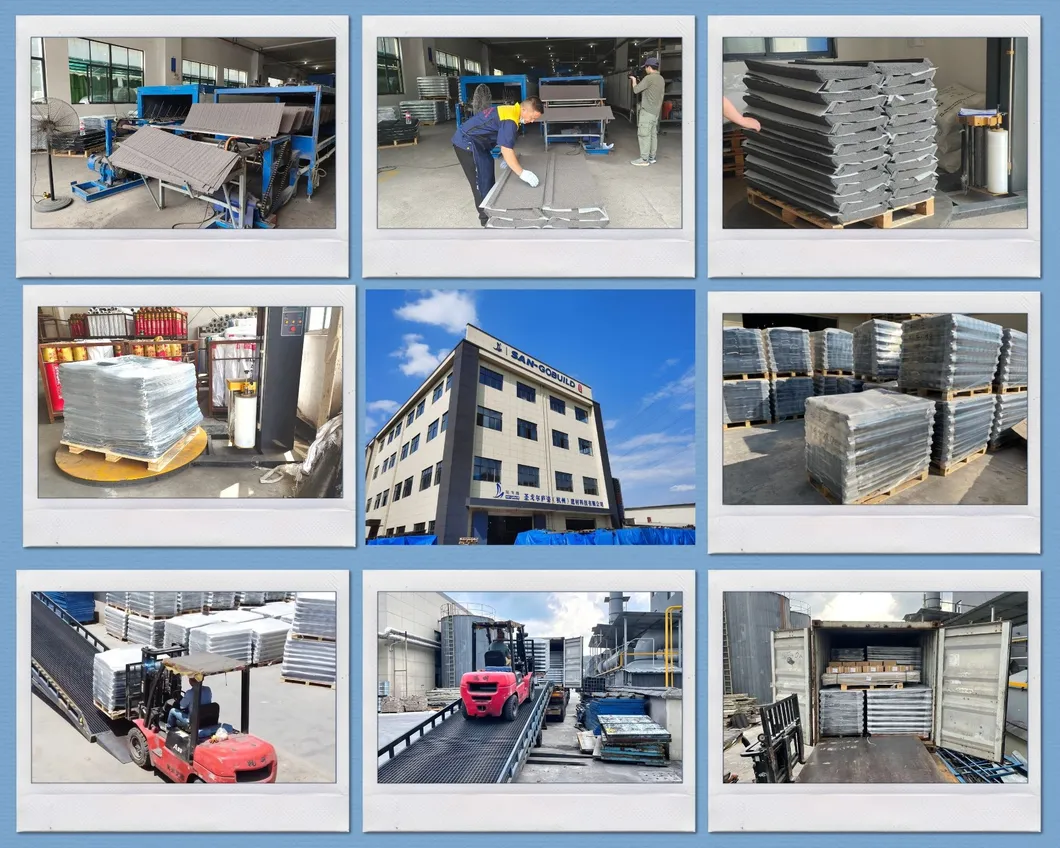

Packing 1
Packing 2

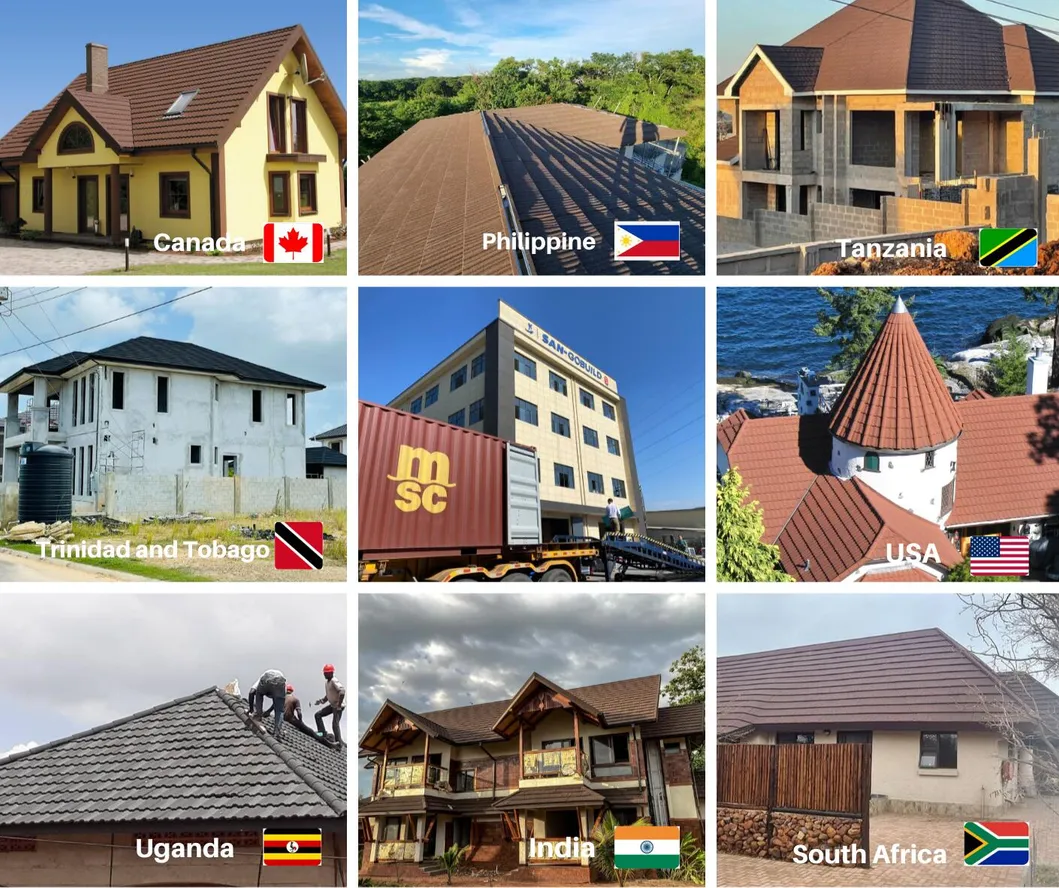

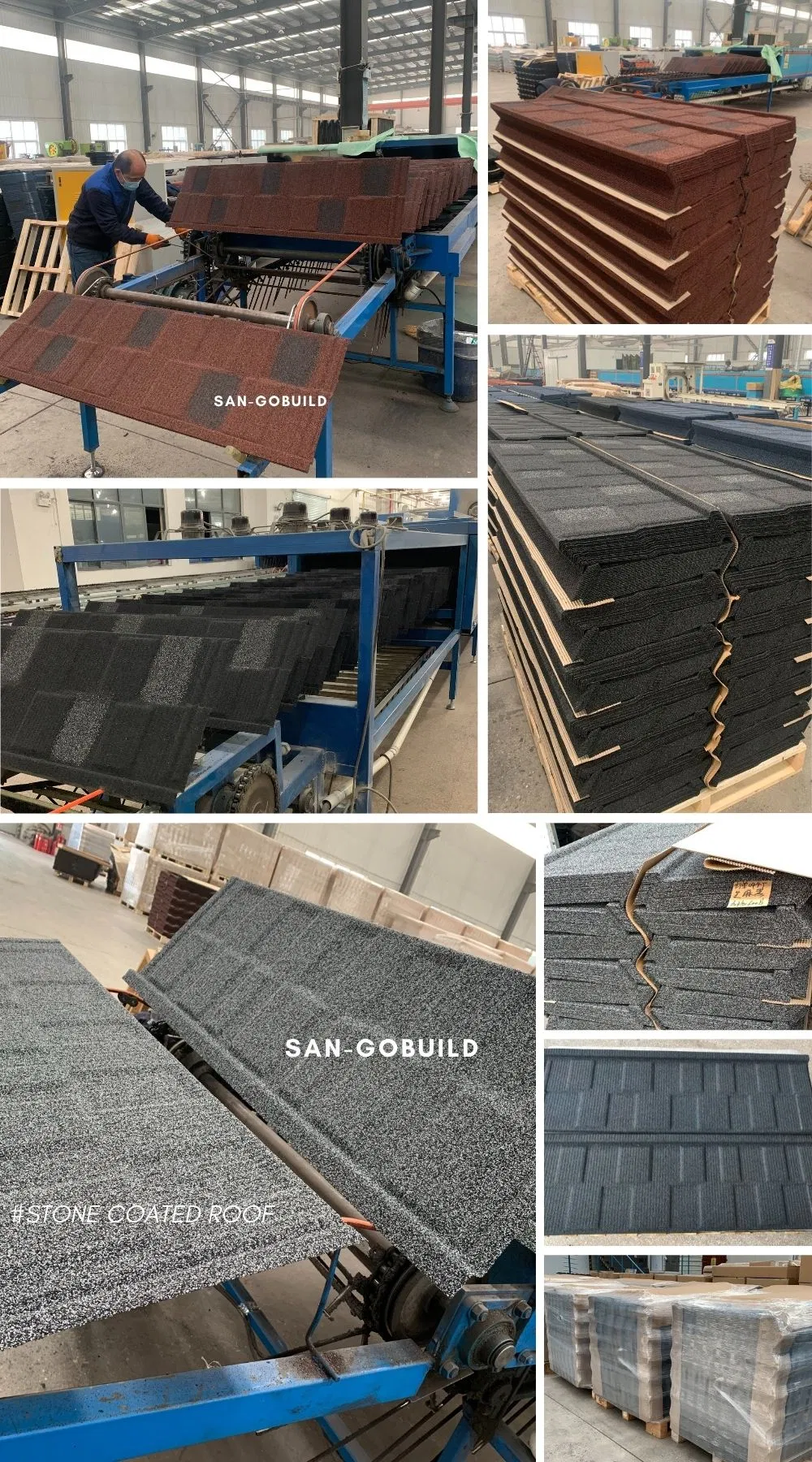

Logistics Shipment
?Frequently Asked Questions
1. Will the metal roof tile rust?
No. The Al-Zinc-coated steel coil provides superior corrosion resistance. The aluminum forms a dense layer of alumina, preventing the corrosive materials from further affecting the base metal.
2. Are metal roofs noisy during rain?
No. The stone-coated steel design naturally deadens the sound of rain and hail, providing a much quieter environment compared to non-coated metal roofs.
3. Is a metal roof hotter in summer or colder in winter?
Actually, no. Many customers report energy cost reductions. The roofing system provides excellent insulation and can even be installed over existing roofs to further enhance temperature control.
4. Is a metal roof dangerous during lightning?
No. Metal roofing is both an electrical conductor and a noncombustible material, making it a safe choice for various weather conditions.
5. Can I walk on the stone-coated roof?
Absolutely. These roofs are made of high-strength steel and are specifically designed to withstand the weight of people walking on them for maintenance or inspection.
6. What are the main benefits of this roofing system?
The system offers economical efficiency, easy installation, outstanding durability, corrosion resistance, heat resistance, and a variety of beautiful colors.
