Product Description

i
Overview
Material:
Insulation Sheet
Maximum Voltage:
<10KV
Thermal Rating:
B 130
Thickness:
0.5-10mm
Certification:
ISO, ISO9001:2008
Tensile Strength:
400MPa
Keywords:
Fr4 Fiberglass
Sample:
Free Sample
Density:
1.8-2.0g/cm3
Rated Voltage:
220V
Type:
Insulation Sheet
Dimension:
1020X1220mm, 1020X2040mm, 1220X2440mm, Customized
Packing:
Export Packaging on Pallet
Heat Resistance:
F Class
Typically Color:
Yellow, Green, Black, Customized
Production Cap:
100 Ton/Tons Per Month
D
Product Description
FR4/G10 Glass Fiber Sheet is a composite sheet material that consists of glass fabric, electrical grade epoxy resin. The epoxy material is extremely strong and stiff, has a low coefficient of thermal expansion, and has outstanding electrical properties. Epoxy resins are among the most versatile and widely used plastics in the electronics field, primarily because water absorption is virtually nil, rendering it an outstanding insulator.

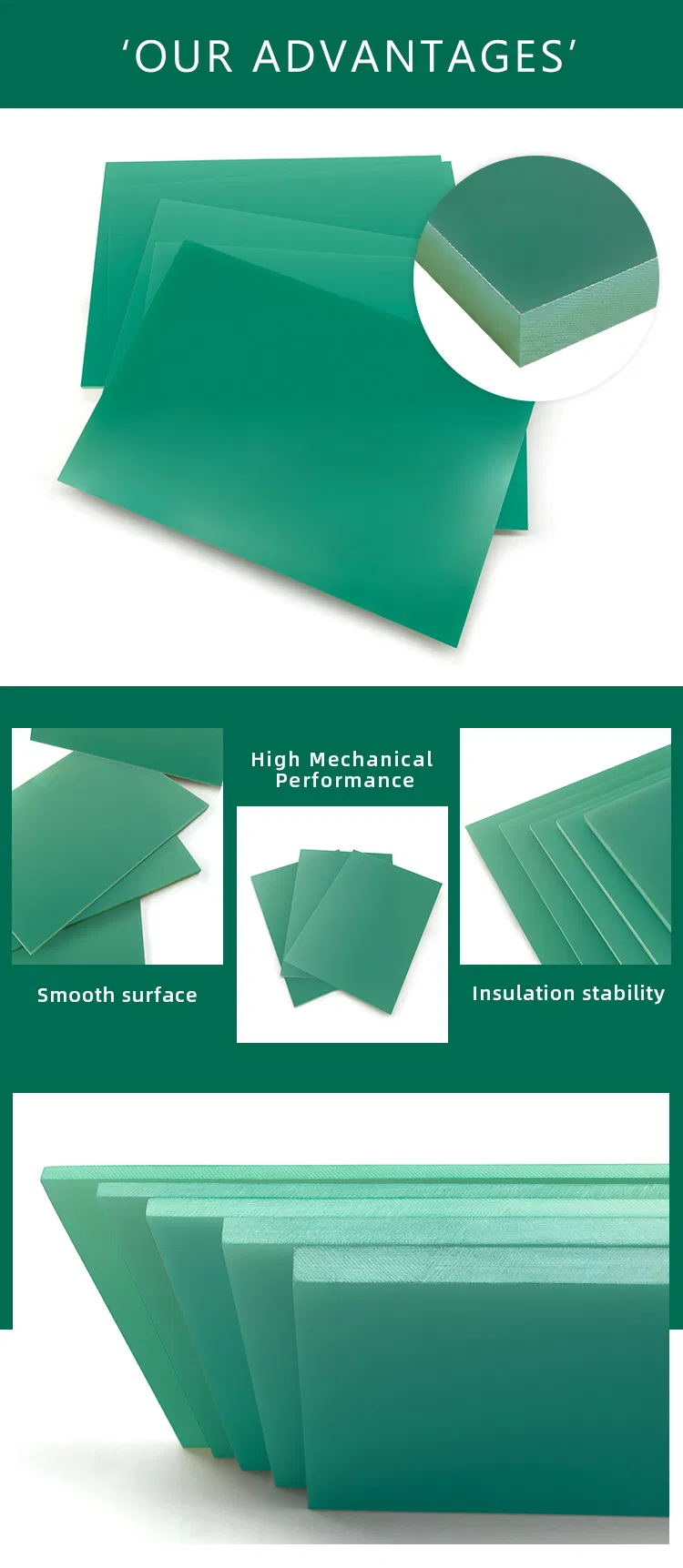

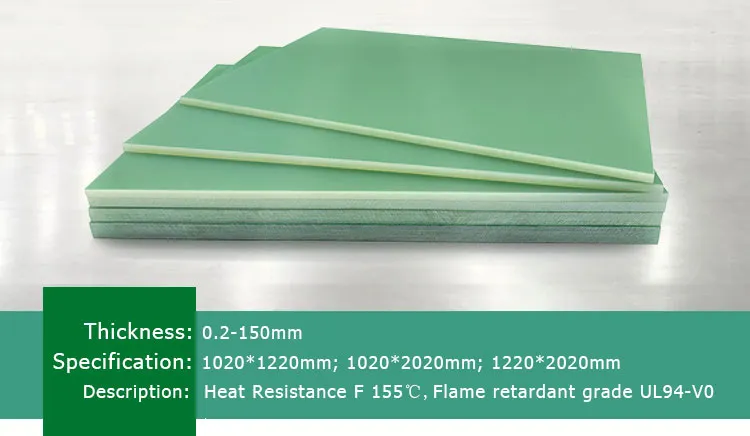

Fr4 G10 Fiberglass Epoxy Panels

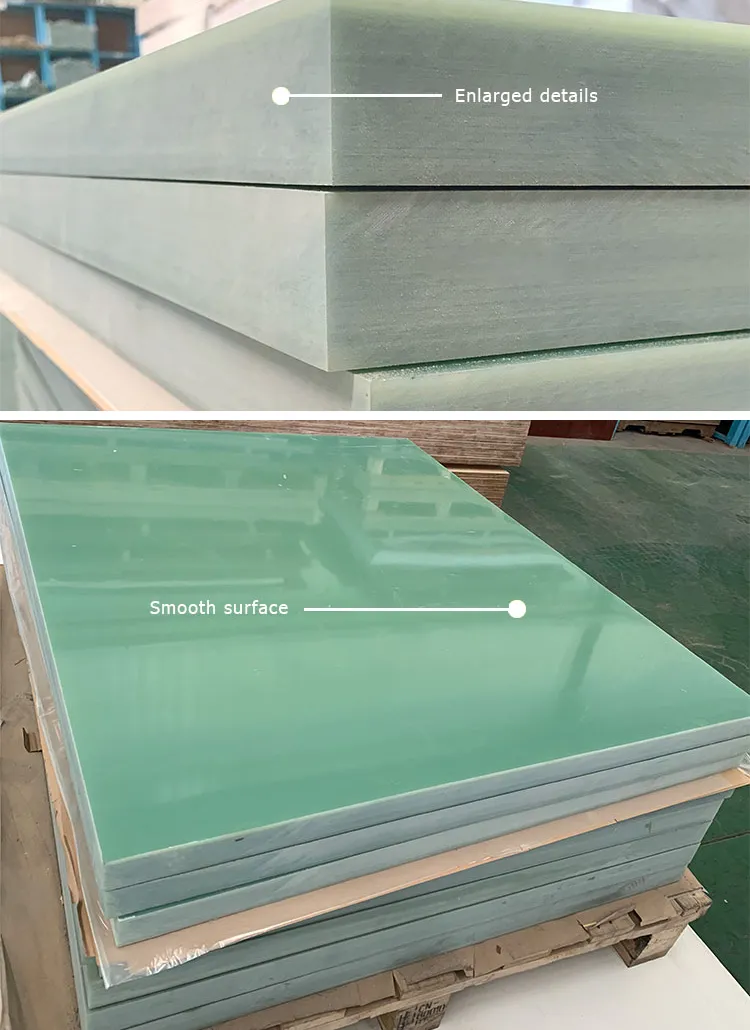

Fiberglass Epoxy Insulation
General Purpose Fr4

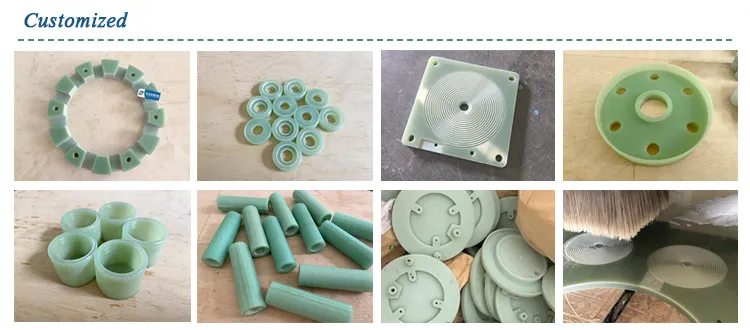

Insulation Material Details
P
Product Parameters
No. Index name Unit Value
1vertical bending strengthMPa≥340
2parallel impact strengthKJ/m2-
3water absorbencymg-
4vertical electrical strengthKv/mm13-19.5
5vertical layer voltage resistanceKV-
6parallet layer breakdown voltageKV≥35
7dielectric constant/≤5.5
8dielectric loss factor/≤0.04
9surface resistivity/-
10volume resistivityM·m-
11heat resistance grade/≥5x104
S
Packing & Shipping
Package Size:
100.00cm * 120.00cm * 20.00cm
Gross Weight:
50.000kg
Export Packing
Shipping Pallet
Professional Packaging
E
Exhibition
Product Exhibition
?
Frequently Asked Questions
How about providing samples?
Of course, we can sent you a sample for free. Customers just need to pay a little shipping charge.
What are the primary applications of FR4/G10 sheets?
It is widely used as an insulator in the electronics and electrical fields due to its high strength and near-zero water absorption.
How about the delivery time?
It depends on order quantity. Generally speaking, the delivery time will be within 3 to 7 days.
How about the packaging?
We use professional craft paper to package on plywood pallets. Special packaging requirements can also be met.
What are the available payment terms?
For orders ≤1000 USD, 100% in advance. For orders ≥1000 USD, 30% T/T in advance, balance before shipment.
Is the mass production quality guaranteed?
Yes, our warehouse staff keeps a control sample identical to yours. The production process strictly follows your requirements.
