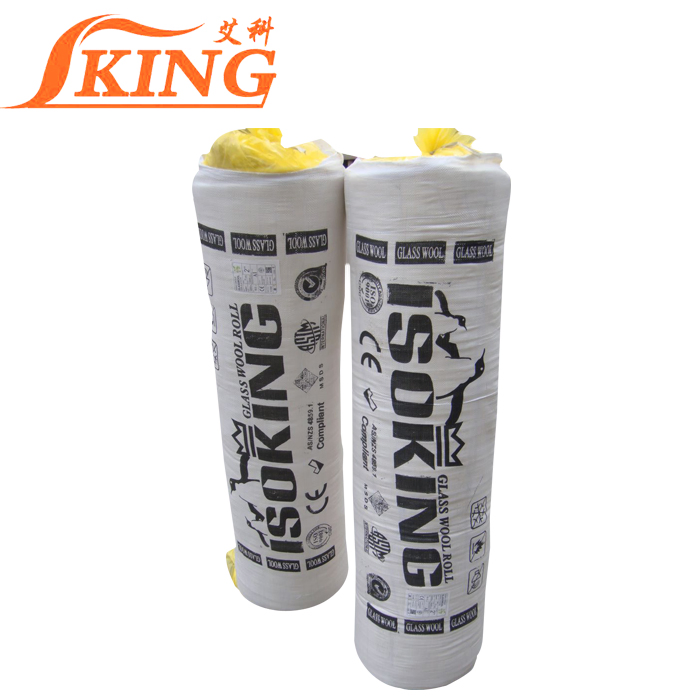

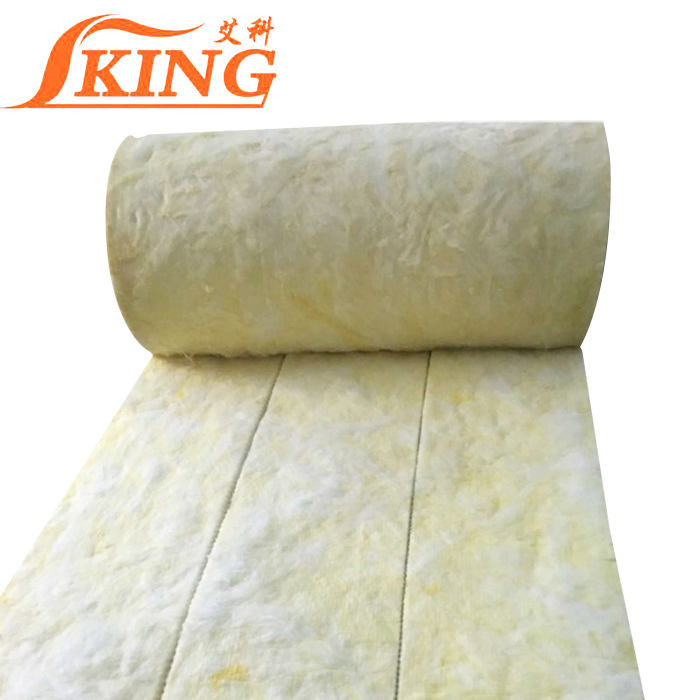

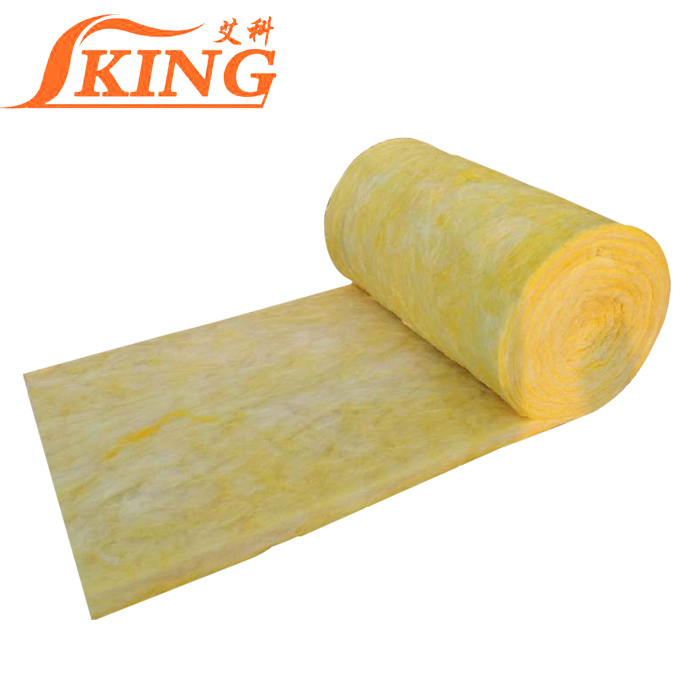

Isoking Glass Wool Blanket Heat Insulation Building Materials

Customization:	Available
After-sales Service:	1 Years
Color:	Yellow

i

Basic Information

Model NO.IK-GW096

FeatureHeat Insulation

Heat Conductivity0.032-0.042 W/M.K

CertificateCE, SGS, ISO, BV, A1, AS/NZ

Thickness25mm-200mm

Width1.2m

Working Temp.350°C

Density10-50kg/M3

MaterialGlass

Refractoriness200-450°C

Package Size120.0cm * 50.0cm * 50.0cm

Gross Weight12.000kg

P

Product Description

Building/Industry Heat, Cold, Sound & Thermal Insulation Material

Fiberglass glass wool available in Panel, Pipe, Tube, Blanket, Roll, Felt, and Board formats.

Physical Properties

Performance	Experimental Method	Technical Requirements
Shrinkage temperature	GB/T11835-1998	250 - 400
Corrosion resistance	ASTM C665	No chemical reaction
Mildew resistance	ASTM C665	Mildewproof
Moisture absorption	ASTM C1104	3-5% of weight
Combustibility	UL723 / ASTM E84	Grade A incombustible

D

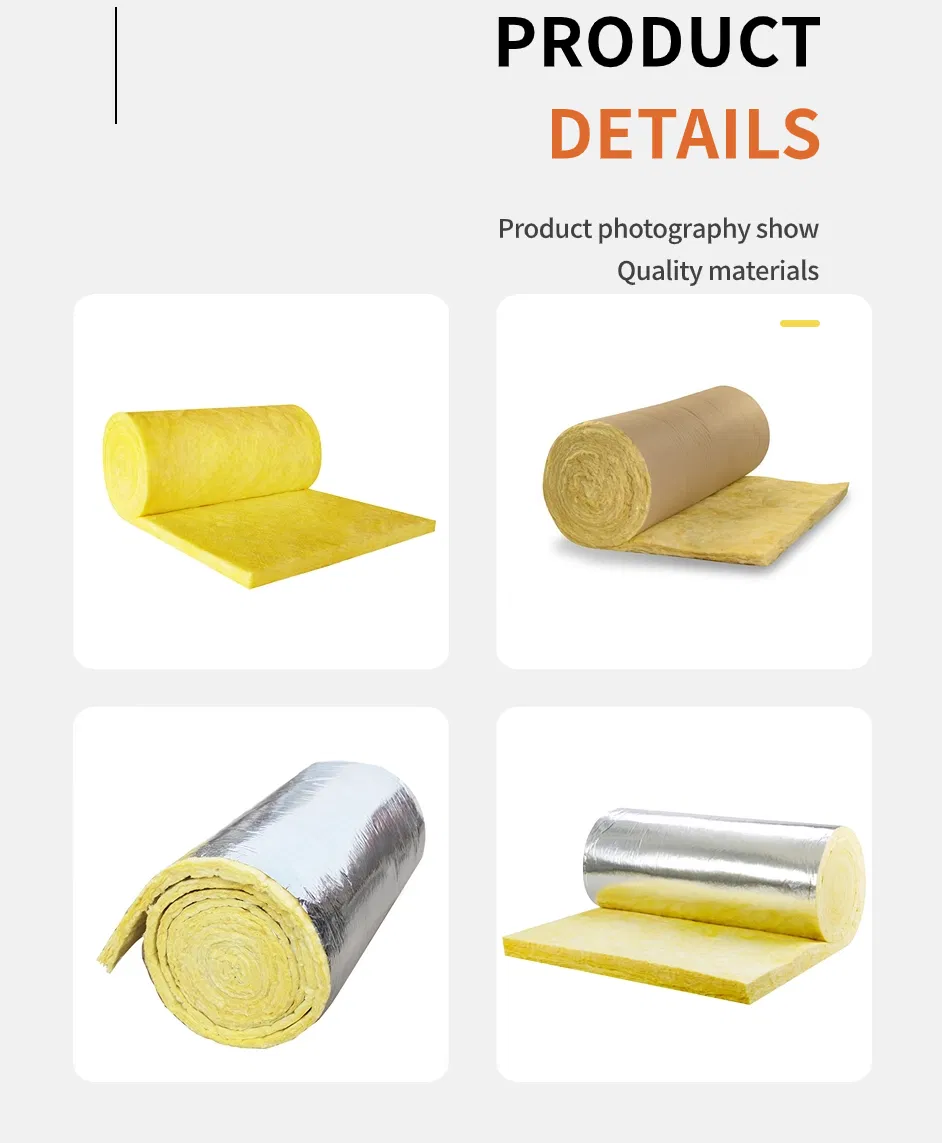

Detailed Photos & Types

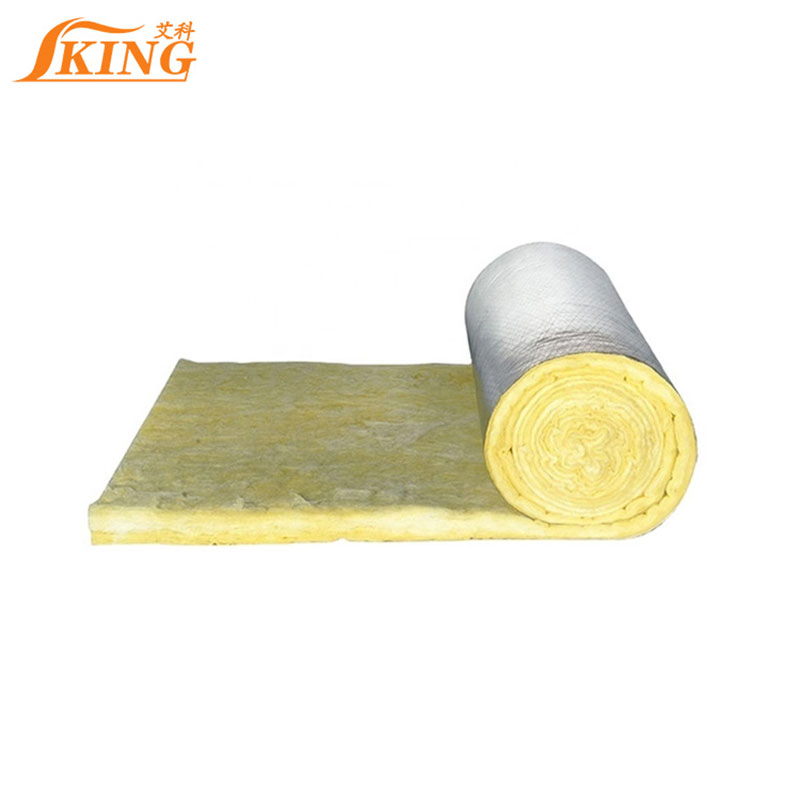

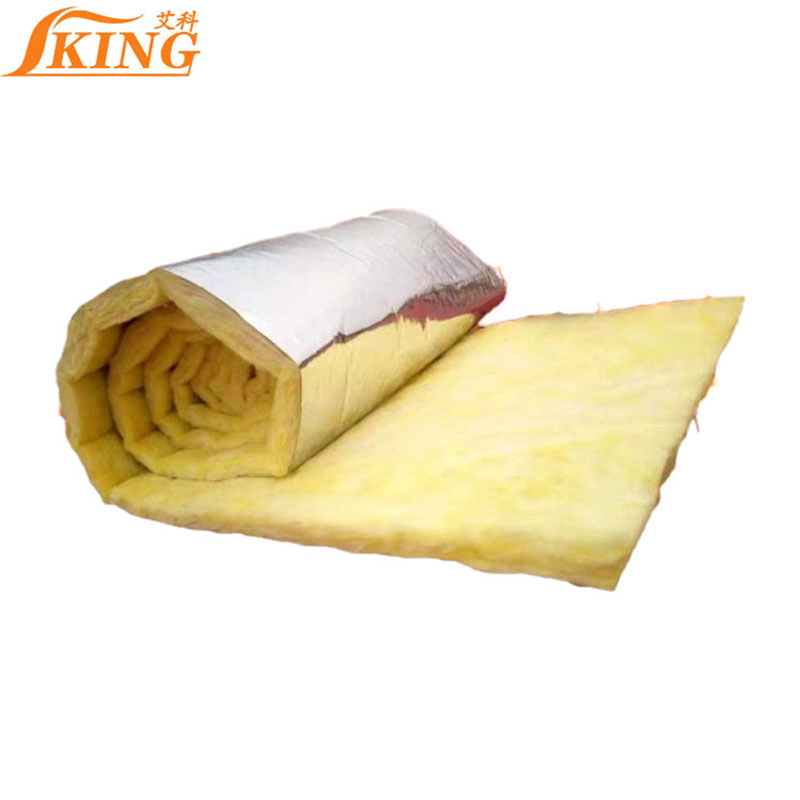

Available Veneers: Kraft paper veneer, Aluminum foil veneer, White veneer, Plain felt glass wool roll.

S

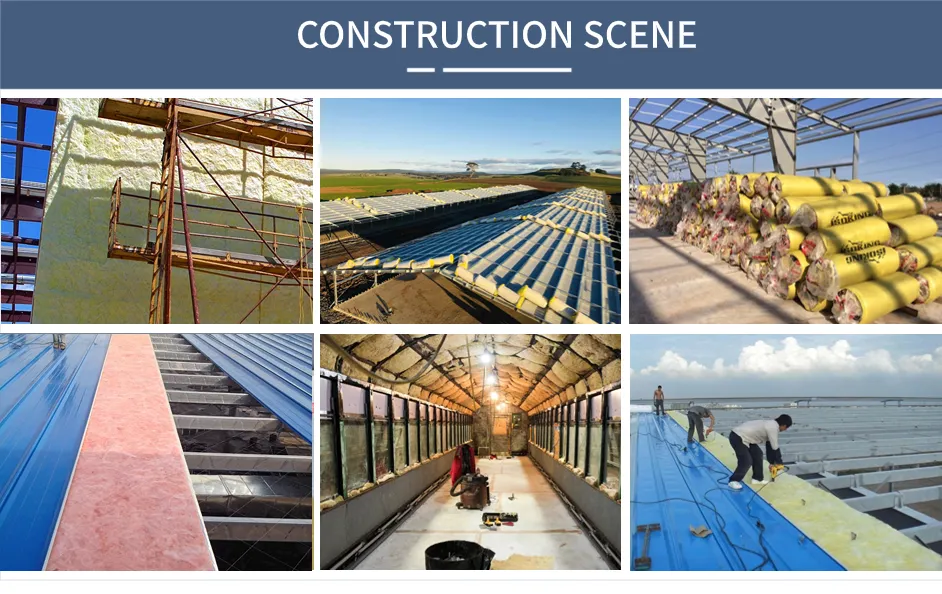

Packaging & Construction

All glass wool products use PE & PP vacuum packaging to optimize space and protection.

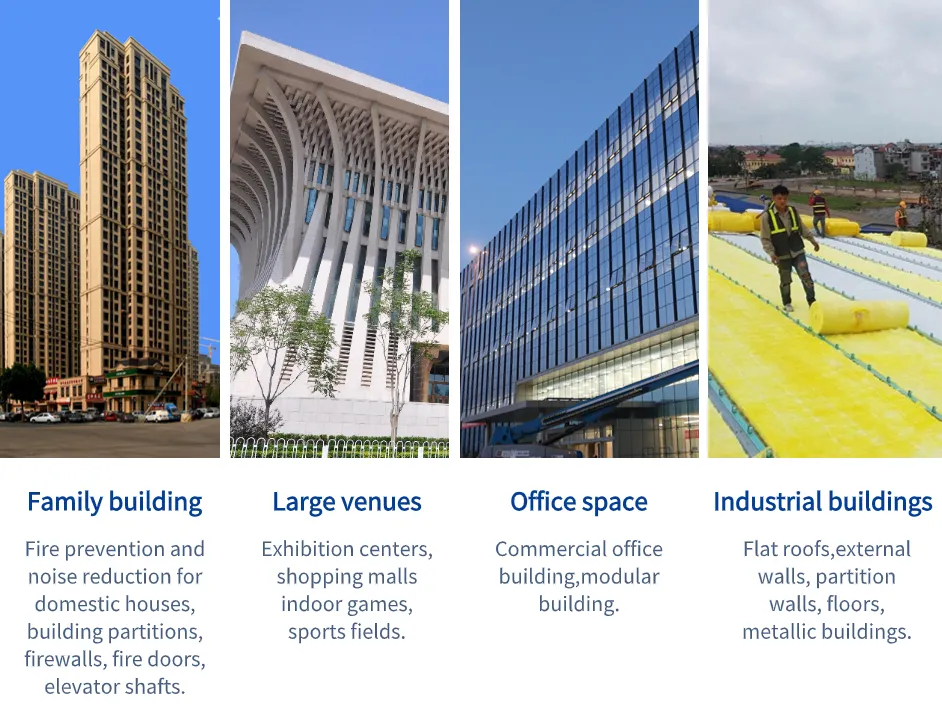

Applications: Widely used in exterior walls, air conditioning facilities, exhibition centers, shopping malls, refrigerated warehouses, indoor playgrounds, sports venues, and ceiling roof systems.

T

Technical Parameters

Item	Unit	Index	Measured Value
Bulk density	kg/m³	10-96	10-96
Fiber Diameter	µm	< 8.0	4.0-6.0
Thermal conductivity	W/m.k	0.049-0.042	0.045-0.032
Max. temperature	°C	400	410

Production Services

★ 7*24 hours service
★ Email response within 10 hours
★ 10 production lines for short delivery time
★ Full quality testing on each process

?

Frequently Asked Questions

Q1: What is the fire resistance rating of the glass wool? A: Our glass wool is a Grade A incombustible material, meeting UL723, ASTM E84, and GB8624 standards.

Q2: What are the main applications for these insulation rolls? A: They are widely used for thermal and sound insulation in exterior walls, HVAC systems, shopping malls, exhibition centers, and industrial facilities.

Q3: What thermal conductivity can I expect? A: The thermal conductivity ranges from 0.032 to 0.042 W/M.K, providing excellent heat insulation performance.

Q4: How is the product protected during shipping? A: We use PE and PP vacuum packaging to ensure the material remains dry and compact during transport.

Q5: Does the material resist moisture and mold? A: Yes, it is mildew-proof according to ASTM C665 and has a moisture resistivity of over 98.5%.

Q6: What is the maximum working temperature? A: The material can handle working temperatures up to 350-400°C safely.
