PEKA Build Materials
1 / 4

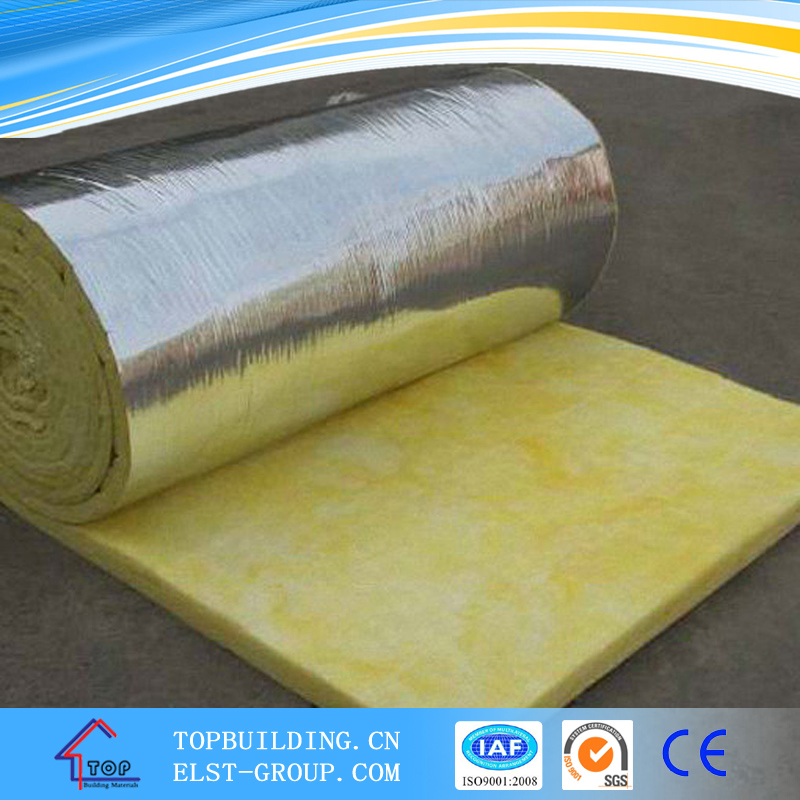

Thermal insulation fiber glass wool blanket uses high-quality fiber glass as raw material whose melting point is above 1000 ºC and has good effects on heat insulation and sound absorption.
It has good properties of fire resistance, pest proof, corrosion resistance, stable chemical property and do not contain asbestos. It is green environmental production and do no harm to human bodies.

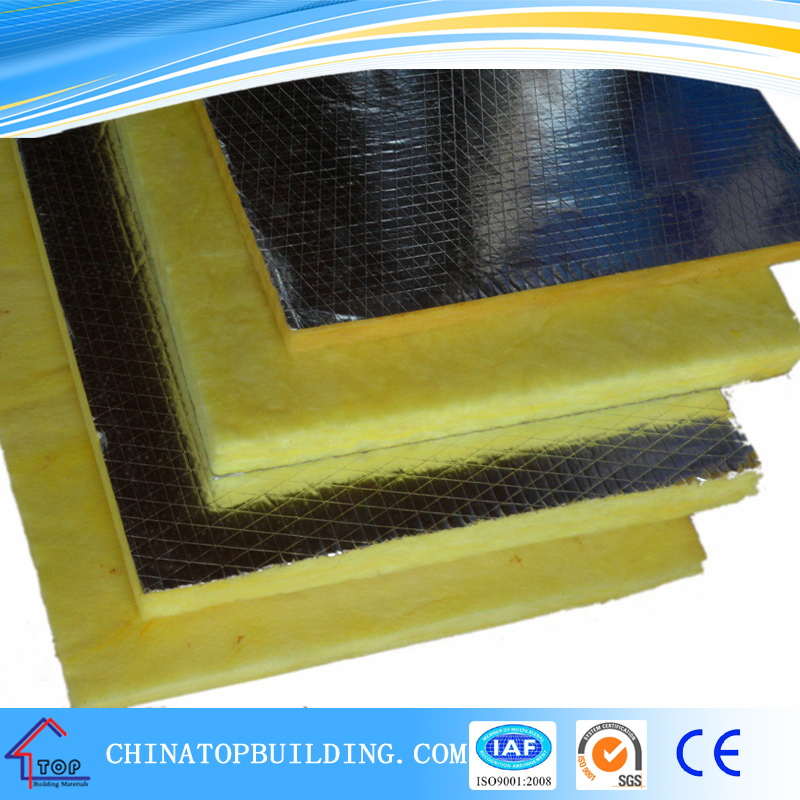

Glass Wool Board Standard Requirements:
| Standard Requirement | Specification | Deviation |
|---|---|---|
| Length | Within 25000mm | +10/-3mm |
| Width | 1200mm | +5/-3mm |
| Thickness | 40mm-150mm | ±3mm |
| Density | 20kg/m3-80kg/m3 | ±10kg/m3 |
Glass Wool Blanket Product Specifications:
| Density(kg/m3) | Width(mm) | Thickness(mm) | Length(m) | Packing/roll Vacuum package |
|---|---|---|---|---|
| 10-48 | 600 | 25-200 | 5-30 | 2roll |
| 10-48 | 1100 | 25-200 | 5-30 | 1roll (Overlapping) |
| 10-48 | 1150 | 25-200 | 5-30 | 1roll (Overlapping) |
| 10-48 | 1200 | 25-200 | 5-30 | 1roll (Overlapping) |
| 10-48 | 1250 | 25-200 | 5-30 | 1roll (Overlapping) |
Detailed Technical Index:
| Item | Unit | Index | Measured Value | Remarks |
|---|---|---|---|---|
| Bulk density | kg/m3 | 10-96 | 10-96 | GB/T 13350-2000 |
| Average fiber diameter | μm | < 8.0 | 4.0-6.0 | GB/T 13350-2000 |
| Moisture resistivity | % | > 98 | > 98.5 | JISA9512-2000 |
| Thermal conductivity | W/m.k | 0.049-0.042 | 0.045-0.032 | GB/T 13350-2000 |
| Incombustibility | - | Incombustible | Grade A | GB/T 13350-2000 |
| Sound absorption | - | - | 1.03 (24kg/m3 2000Hz) | GB/J47-83 |
| Max. working temp | °C | 400 | 410 | GB/T 13350-2000 |
