Furnace Insulation Material for Fireproof Glass Curing
Furnace Insulation Material for Fireproof Glass Curing
Furnace Insulation Material for Fireproof Glass Curing
Furnace Insulation Material for Fireproof Glass Curing
Furnace Insulation Material for Fireproof Glass Curing
1 / 5
Furnace Insulation Material for Fireproof Glass Curing
Furnace Insulation Material for Fireproof Glass Curing
Furnace Insulation Material for Fireproof Glass Curing
Furnace Insulation Material for Fireproof Glass Curing
Furnace Insulation Material for Fireproof Glass Curing

Furnace Insulation Material for Fireproof Glass Curing

Customization: Available
Certification: CE
Condition: New
Send Inquiry

Product Description

Basic Specifications

Model NO.
CFG-3060
Control System
PLC Control, Semi-Automatic, Touch Screen
Glass Thickness
3 mm - 19 mm
Warranty
One Year Warranty
Certificate
GB/T1.1-2009, GB15763.1
Package
Standard Packing
Specification
1500*3000mm
Origin
China
HS Code
8514199000

Composite Fireproof Glass Production Equipment

Composite fireproof glass polymerization furnace main components and process:
  • I. Glass cleaning process
  • II. Manual sealant strip machine application (requires special gloves)
  • III. Special roller press (hot press roller for combining glass pieces)
  • IV. Air float gluing table
  • V. Manual edge gluing station
  • VI. Stainless steel reactor (equipped with heating pump, chiller, and vacuum pump)
  • VII. Composite glass grouting table (includes peristaltic pumps and air-float lifting)
  • VIII. Semi-automatic lifting system

Main Technical Performance

Our polymerization furnace adheres to architectural safety standards GB/T1.1-2009 and GB15763.1. The system features advanced heating via PLC intelligent control, utilizing a furnace body with 3 groups of convection fans and a built-in wind forced circulation system.

Heating & Cooling Efficiency: During heating, hot air is forced through convection ducts to ensure uniformity. In the cooling stage, the system extracts hot air and introduces cold air from outside to rapidly decrease temperatures. Real-time temperature data is displayed via 3 groups of thermocouples on the touch screen interface.

Product Display

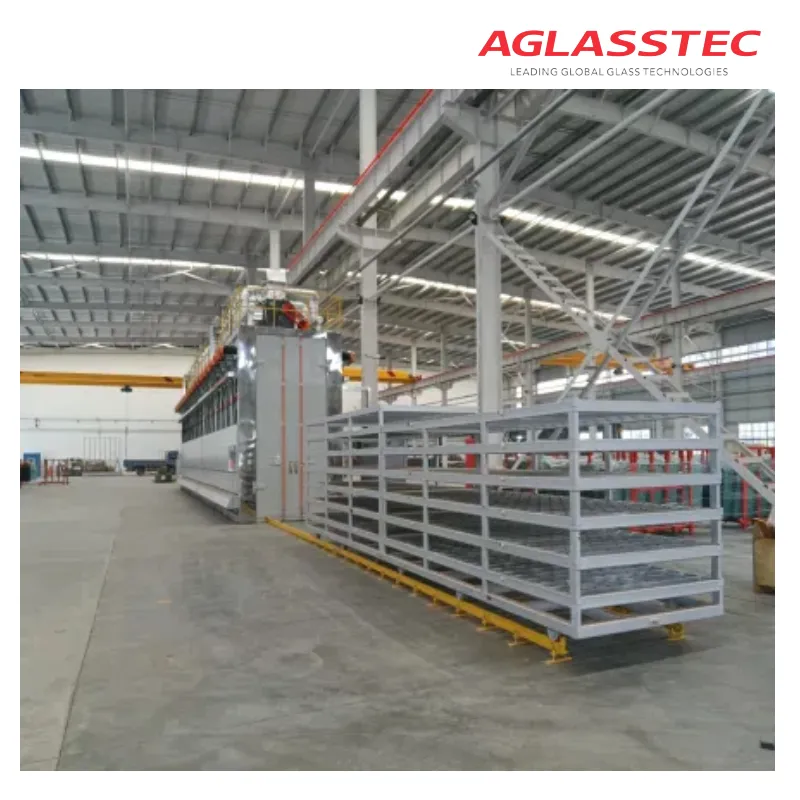

Fireproof Glass Curing Equipment
Fireproof Glass Polymerization

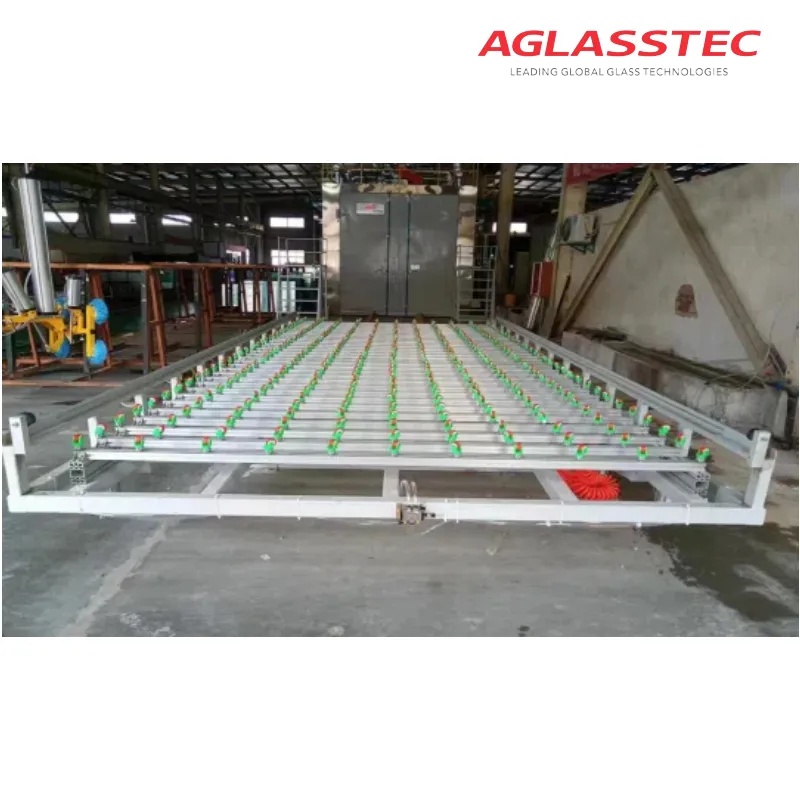

Glass Manufacturing Furnace

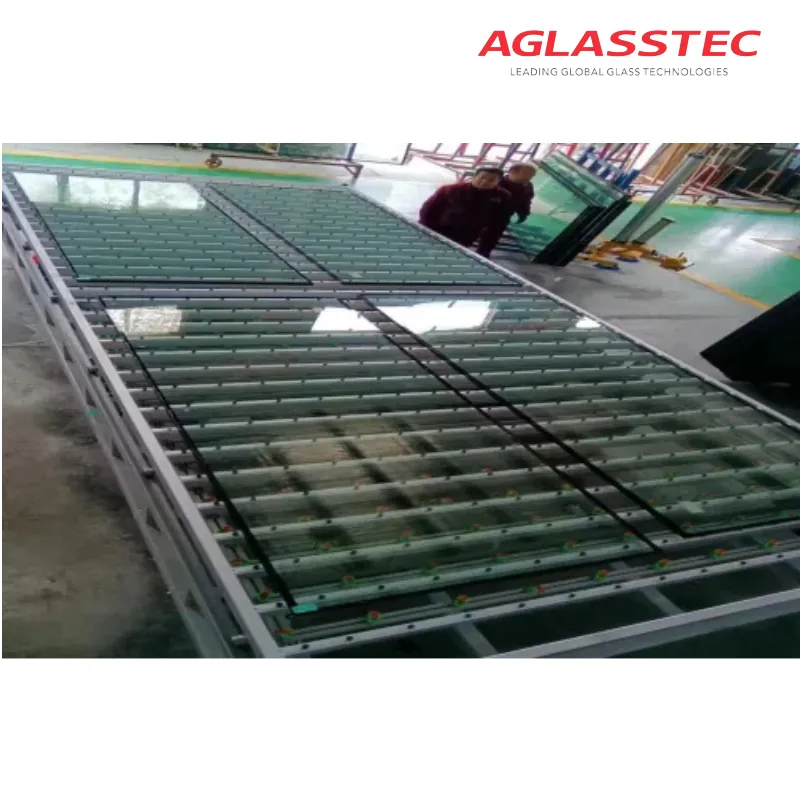

Industrial Glass Furnace

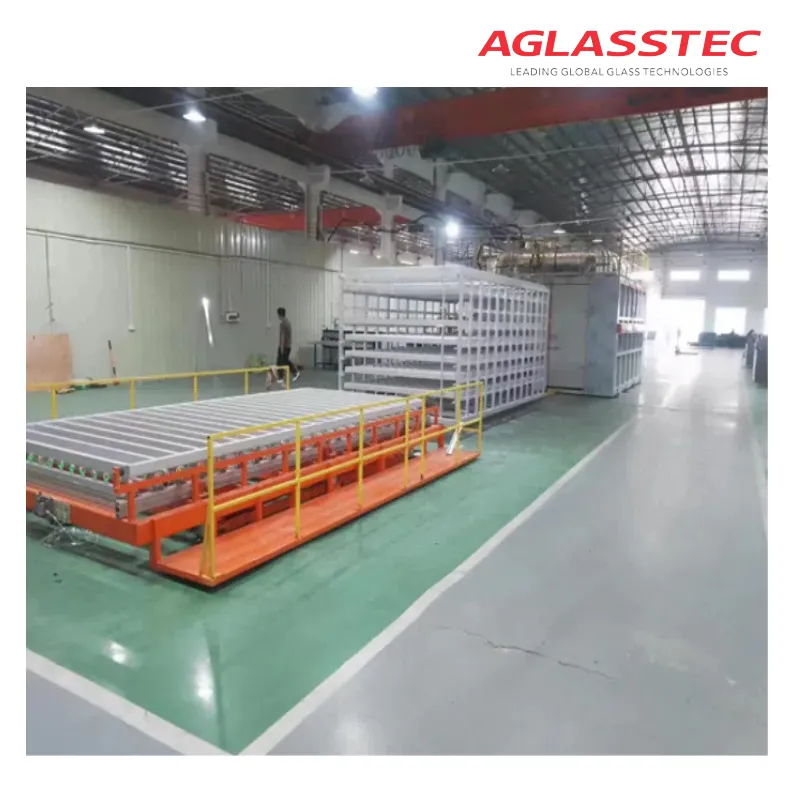

Production Line Detail

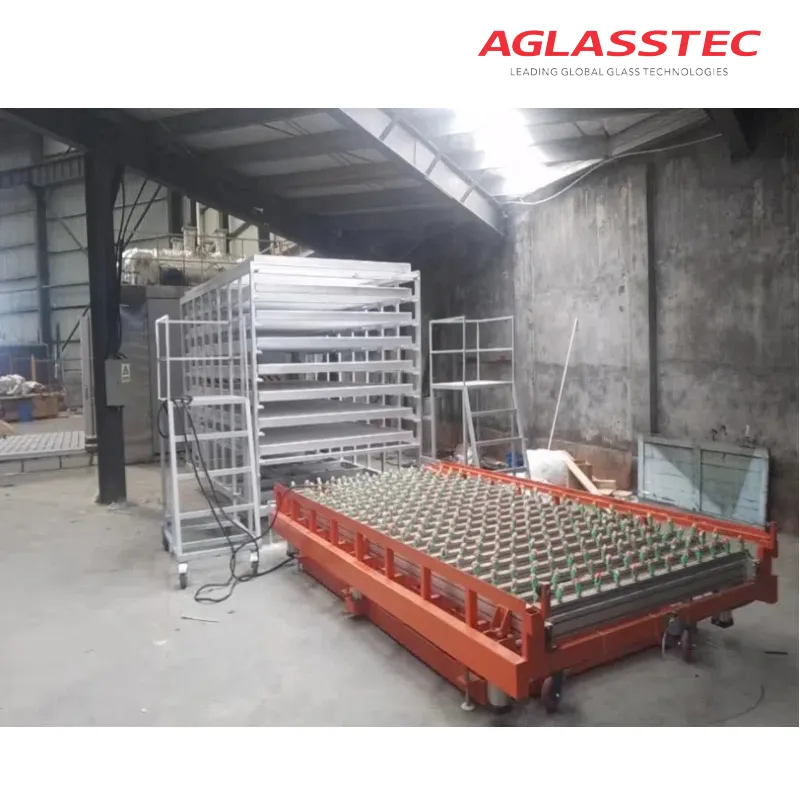

Fireproof Glass Processing

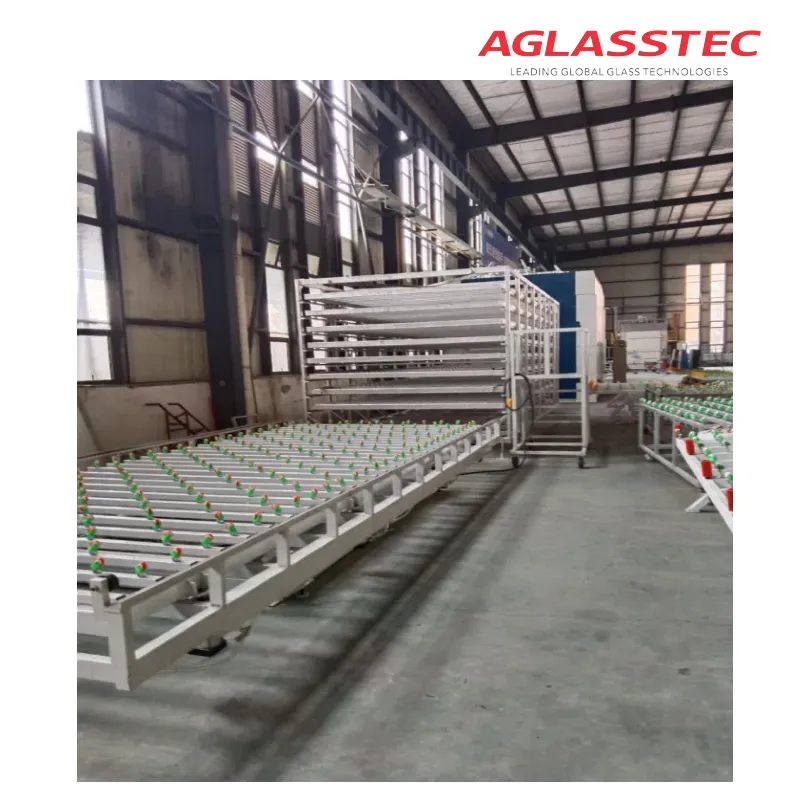

Furnace Insulation Detail

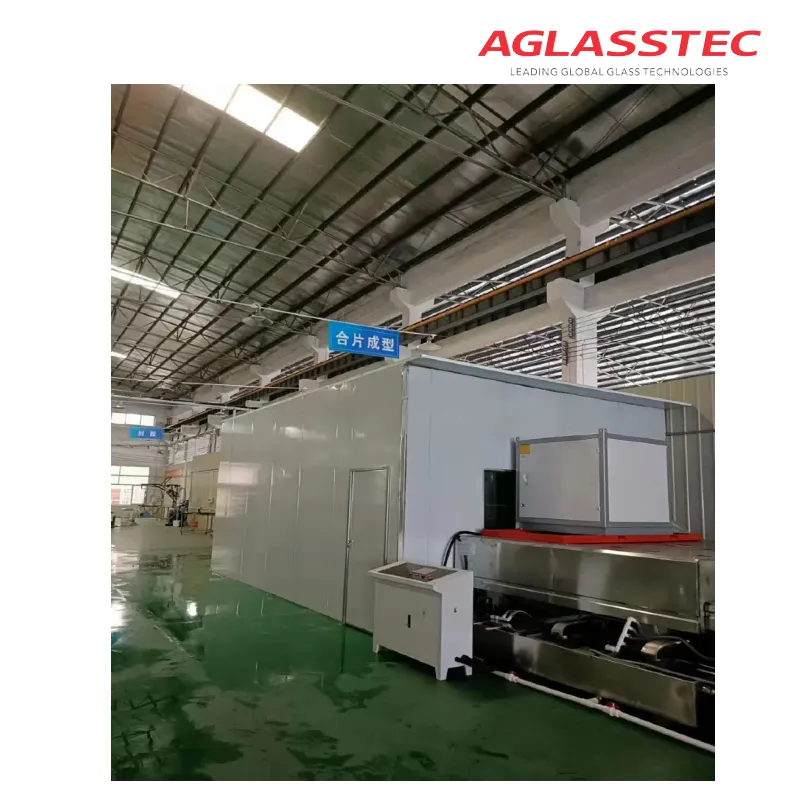

Control System Unit

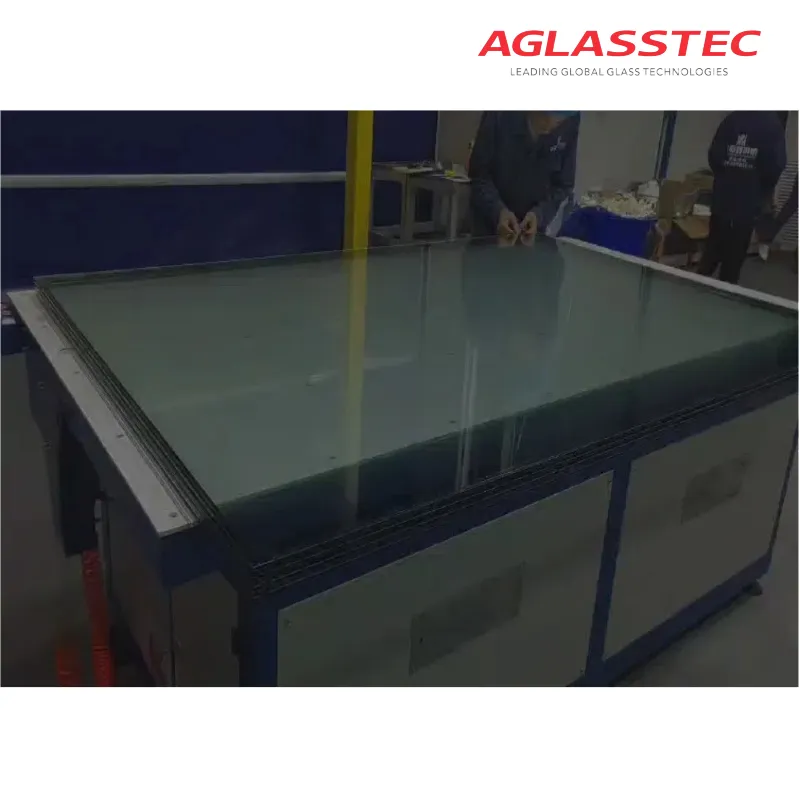

Grouting Table System

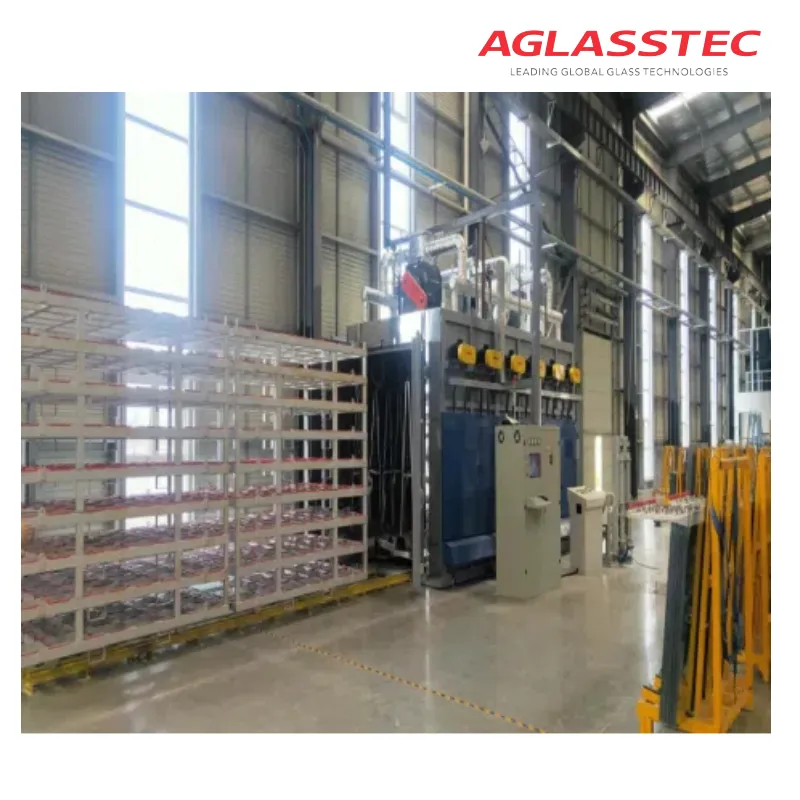

Final Product Inspection

Fireproof Function & Infusion

Infused fireproof glass consists of two or more layers of tempered glass. After sealing the gaps with specialized sealant, fire-retardant liquid is infused into the cavity. The glass then undergoes a polymerization process:

  • Temperature range: 75°C to 80°C
  • Constant temperature duration: 5 to 8 hours
  • Result: High-performance flame retardant and fire-resistant composite glass

Frequently Asked Questions

What glass thickness can this furnace process?
The equipment is designed to handle glass thicknesses ranging from 3 mm to 19 mm.
How is the furnace temperature controlled?
It uses a PLC intelligent control system with a touch screen interface and 3 groups of thermocouples for precise monitoring.
What are the safety standards for the production?
The production process and equipment comply with GB/T1.1-2009 and GB15763.1 architectural safety glass standards.
What is the curing time for infused fireproof glass?
The glass typically requires a constant temperature of 75-80°C for approximately 5 to 8 hours depending on thickness.
Does the system include cooling functions?
Yes, the furnace includes a forced air convection system that draws in cold air to improve efficiency during the cooling stage.
What components are included in the grouting system?
The grouting system includes peristaltic pumps and an air-float lifting and moving table for precise liquid infusion.
