OE Qaulity FKM & NBR Coating Gasket Material Rubber Coated Metal Material

Basic Specifications

Rubber Coating Thickness

0.02-0.1 2mm

Coating Material

FKM, NBR

Sample

Provide Free Sample in A4 Pieces

Transport Package

Pallet and Waterproof Paper

Specification

0.12-1.2mm

Trademark

CNM

Origin

China

HS Code

7219900000

Production Capacity

10000tons/Month

Product Description

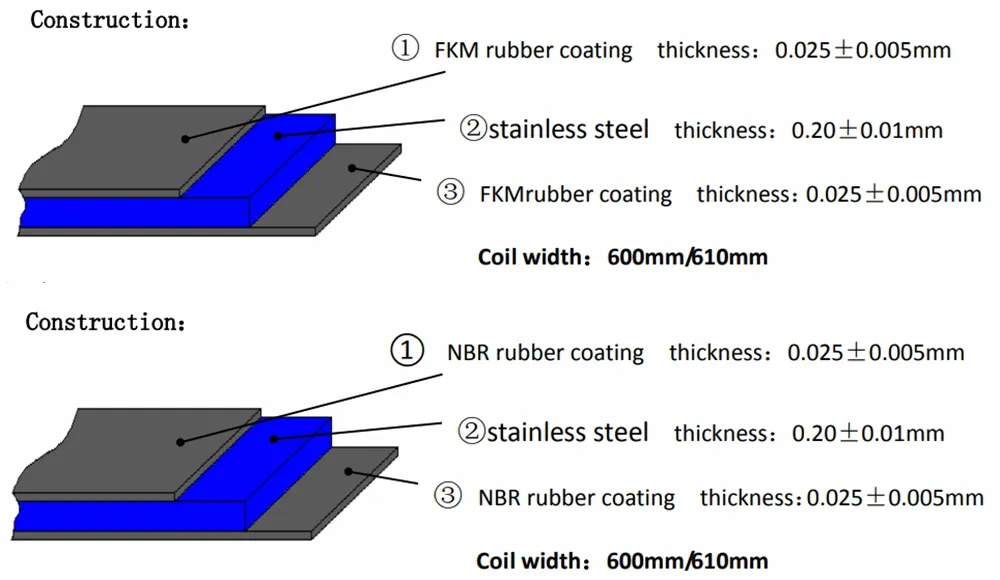

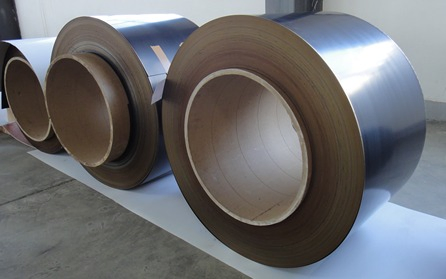

Product Dimension:
Available metal substrates thickness are between 0.2mm-0.8mm. Max width is 800mm. Rubber coating thickness is between 0.02-0.1 2mm single and double -side rubber coated metal roll material can meet the requirement of different customers.

Key Characteristics:

Excellent high and low temperature resistance: Working temperature -20ºC to 120ºC (NBR), -40ºC to 290ºC (FKM).
Superior sealability suitable for both gas and fluid environments.
Exceptional mechanical performance with tensile strength up to 100MPa.
Excellent compression, recovery, and stress relaxation performance.
Strong fluid resistance, ideal for mechanical oil, antifreeze, and coolant.
Outstanding anti-ageing properties for long-term durability.
Fine processing properties allowing for efficient continuous automatic processing.

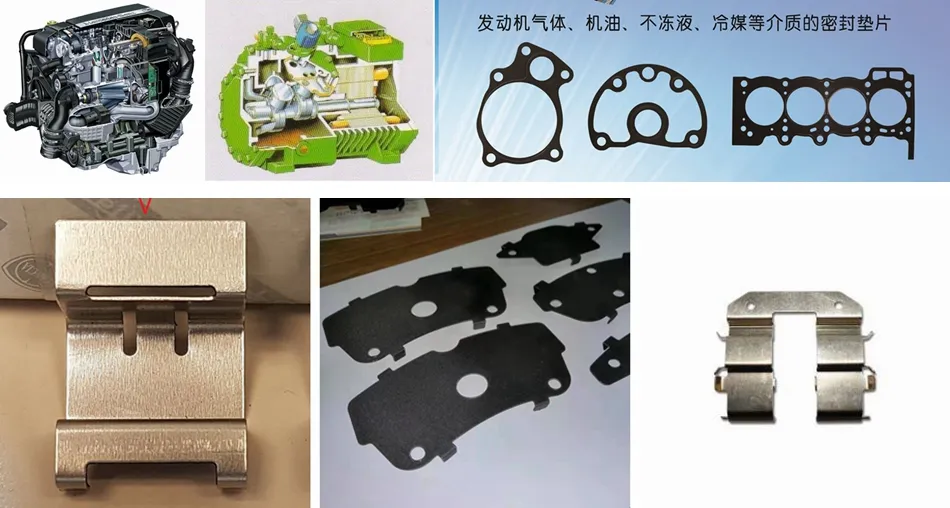

Application Areas

Rubber coated metal materials combine metal rigidity with rubber elasticity. This makes the material ideal for:

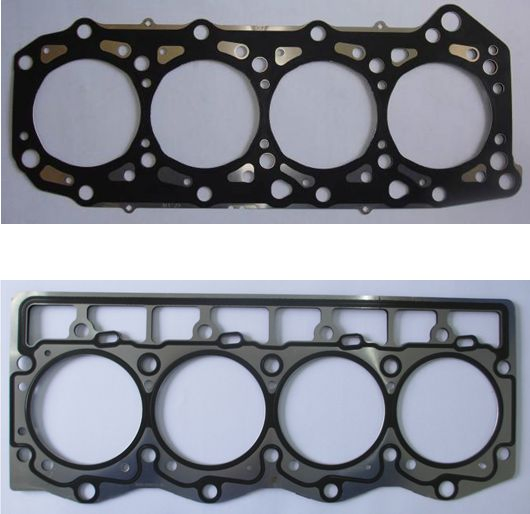

Automobile and motorcycle cylinder head gaskets.
Accessory gaskets and refrigeration components.
Compressor gaskets requiring high sealability and durability.

We are supplying 90% OE market share for sealing products in China and overseas.

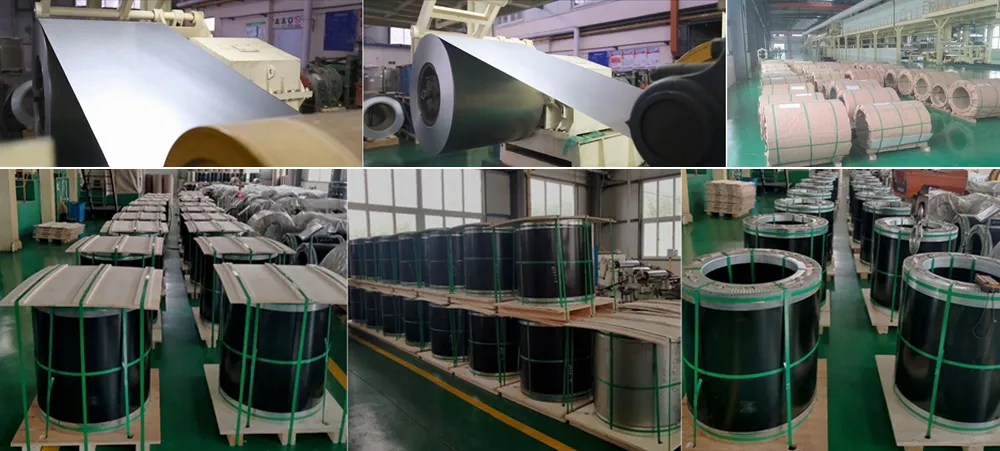

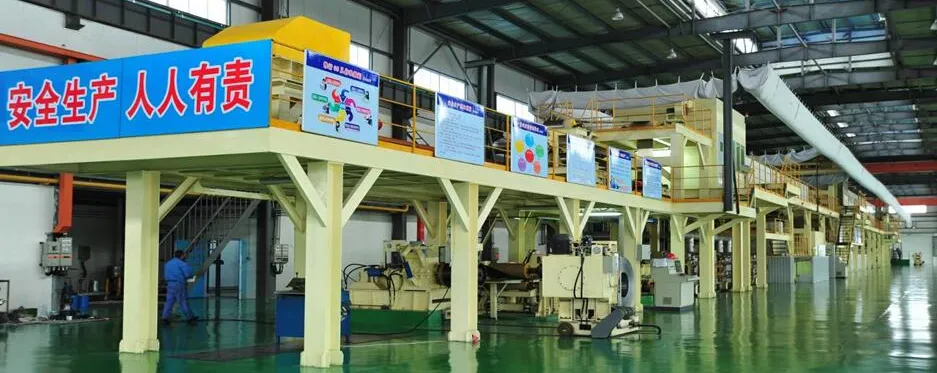

Production & Quality Control

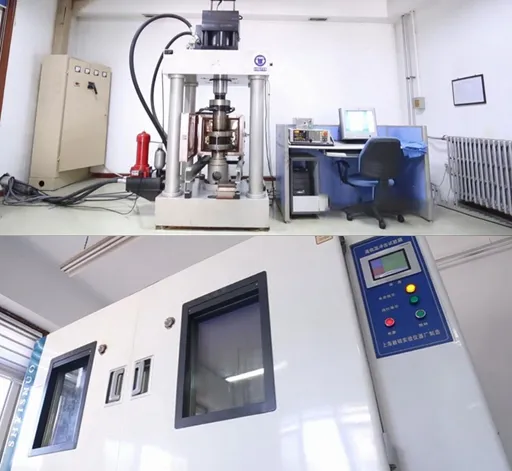

Featuring the first NBR & FKM coating steel coil production line in China. Key equipment is sourced from France, Germany, and Japan, utilizing state-of-the-art automatic production lines to ensure premium quality.

Pre-control	Marketing research
	Product development and research
	Raw material procurement
	Technological preparation
In Process Control	Manufacturing process & technological control
	Production operator control
	Equipment monitoring & environmental control
Post-action Control	Finished product inspection
	Quality problem disposal
	User feedback analysis

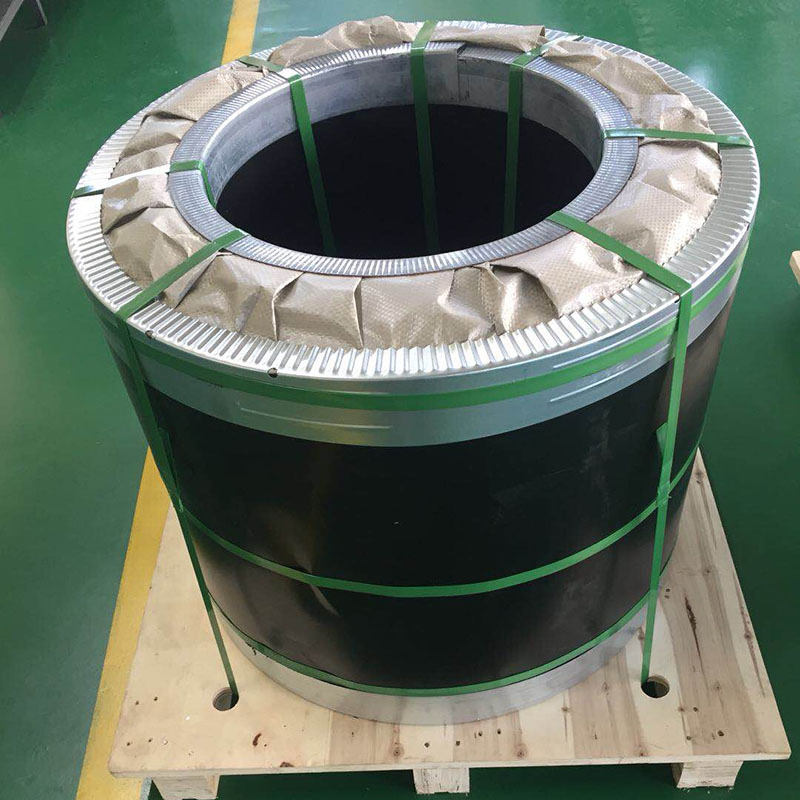

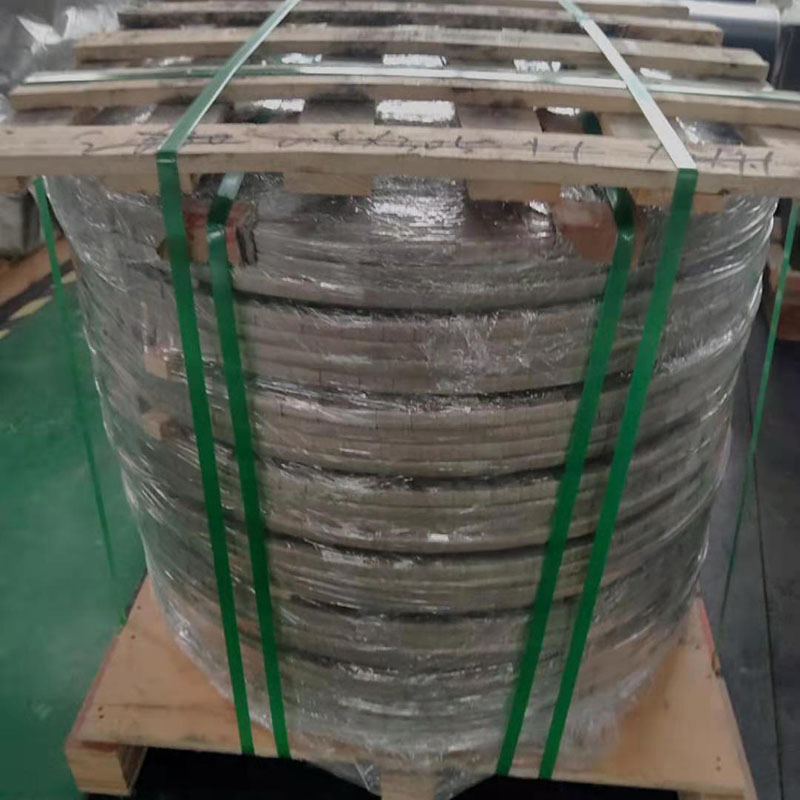

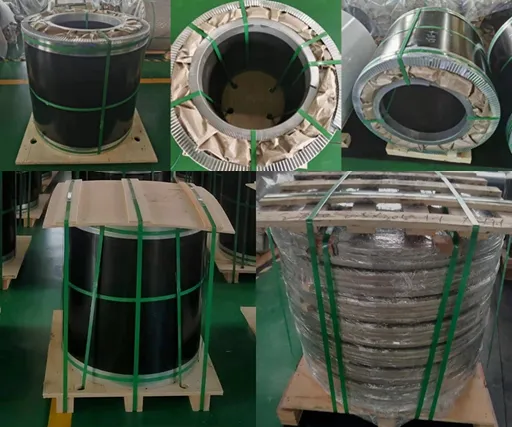

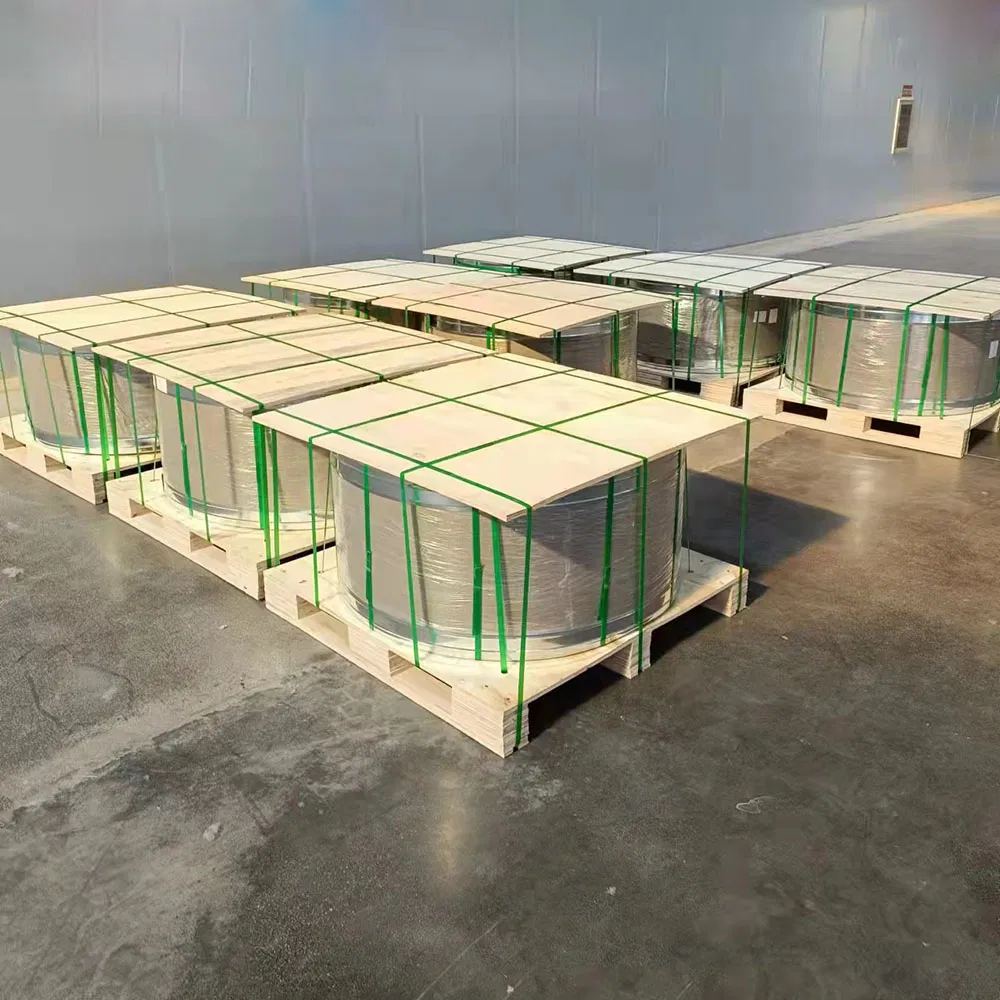

Package and Shipment

Internal & External corner protector with steel collar

Heat-sealed circumferential plastic strapping

17 mm radial steel strapping x4 arranged at 90°

Palletized on fumigated and branded wood

Internal diameter of coil: 400 mm / External: 800-900 mm

Weight of each coil: 900 - 1000 KG

Frequently Asked Questions

Can I get samples?

Sure. We usually provide existing samples. Sample charges are refundable when the order reaches a certain quantity. Usually, the freight fee is borne by the buyer.

What is the delivery time?

The standard delivery time is 20 to 30 days after receiving the T/T prepayment.

Why is the delivery status in master coil?

To save costs and provide better pricing, we suggest master coils (width above 600mm) due to export tax refund differences. We also supply slitted types if you lack slitting capacity.

What are the temperature resistance ranges for NBR and FKM?

The working temperature for NBR coating is -20ºC to 120ºC, while FKM coating can withstand -40ºC to 290ºC.

What are the main applications for these materials?

These materials are primarily used for automobile and motorcycle cylinder head gaskets, refrigeration gaskets, and compressor gaskets.

Why choose our rubber coated metal materials?

We utilize advanced equipment from Europe and Japan, maintain a rigorous quality inspection process, and provide comprehensive test reports and quality certificates for all products.
