B2 Fr ACP Aluminum Composite Panel for Mongolia ACP Building Project

1 / 5

B2 Fr ACP Aluminum Composite Panel for Mongolia ACP Building Project

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

001 Series

Surface Finishing

Coating

Panel Thickness

4mm

Aluminum Thickness

0.4mm

Function

Fireproofing, Anti-static, Anti-Bacterial

Usage

External Wall, Curtain Wall, Interior, Advertising

Certification

ASTM, ISO

Coating

PVDF

Fireproof Grade

B1 / B2 FR

Production Capacity

4,500,000 sqm/year

Origin

China

HS Code

7606125000

🔥

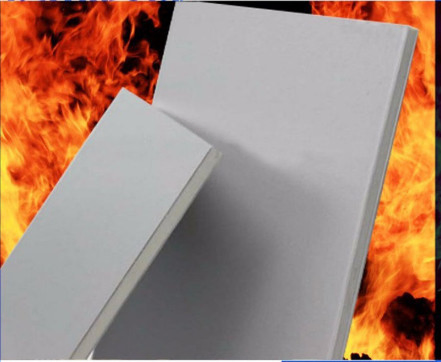

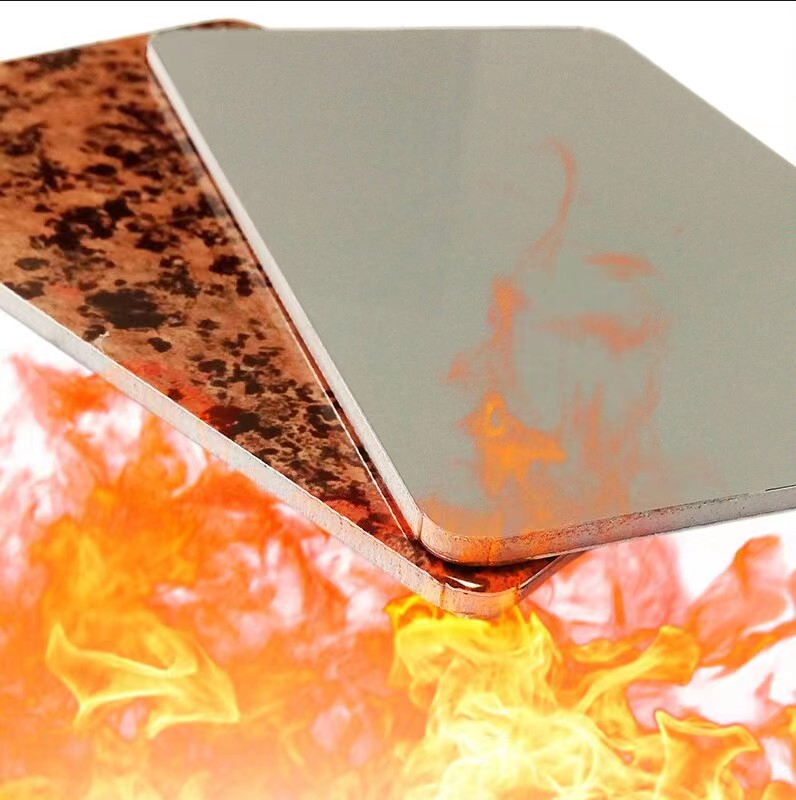

B1 Fireproof (FR) Aluminum Composite Panel

Fire-resistant Aluminum composite panel is engineered with a specialized fireproof plastic core sandwiched between two layers of premium aluminum sheets. It is a modern green building material designed for safety and durability.

The B1 Class panel contains approximately 60% flame retardant materials, primarily aluminum oxide and magnesium oxide. Under fire conditions, it maintains integrity for over 5 minutes and self-extinguishes within 10 seconds once the fire source is removed.

🏗️

Core Raw Materials

✔Aluminum Base: High strength aluminum alloy sheet
✔Core Material: Non-toxic Fire-resistant (FR) core
✔Surface Coating: Polyester or PVDF Kynar coating

📏

Technical Specifications

Parameter	Standard Values
Width	1220mm, 1250mm, 1500mm, 2000mm
Length	Customizable (Standard < 5800mm)
Panel Thickness	2mm ~ 6mm
Alu.Skin Thickness	0.21mm, 0.30mm, 0.40mm, 0.50mm
Standard Size	1220mm x 2440mm (4' x 8'); 1500mm x 3050mm (5' x 10')

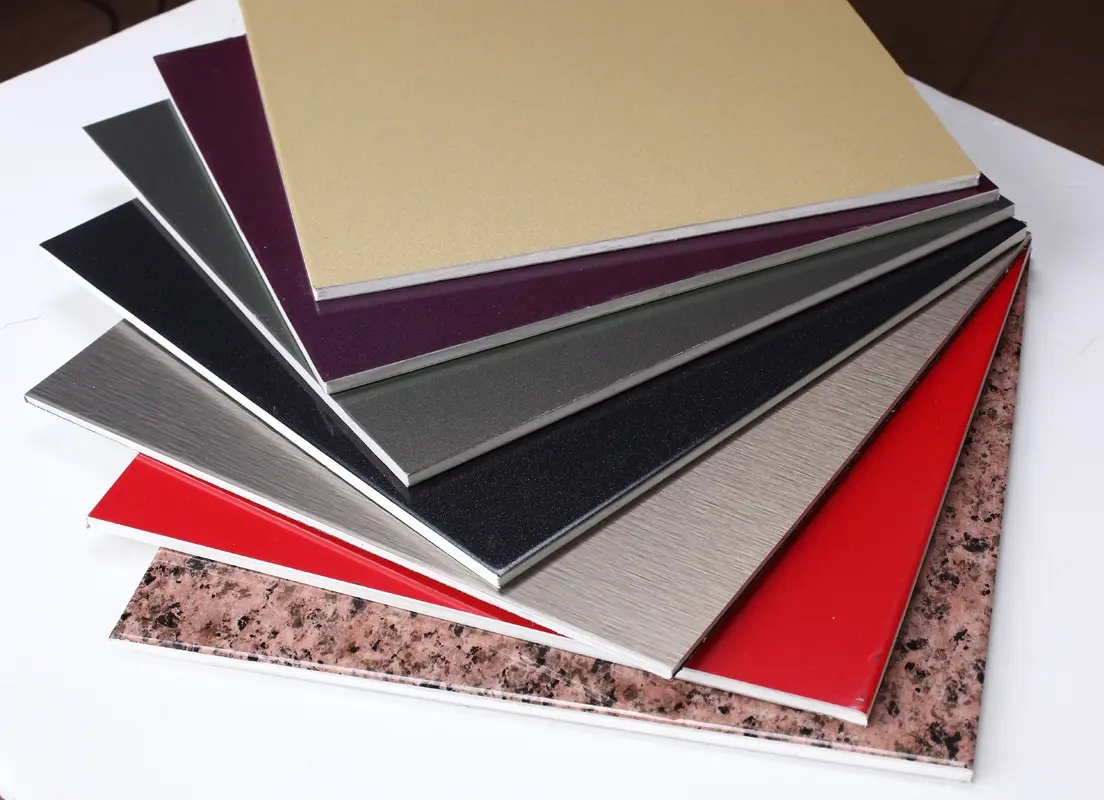

Colors	Standard 45 colors or customized

🛡️

Class B1 Burning Test Results

Test Item	Test Method	Technical Index	Result
Remaining Length After Burning (Min)	GB/T8625-88	> 0 mm	480
Remaining Length After Burning (Avg)	GB/T8625-88	≥ 150 mm	160
Temperature of Smoke	GB/T8625-88	≤ 200 ºC	78
Height of Fire	GB/T8625-88	≤ 150 mm	12
Smoke Density Grade	GB/T8627-88	< 75	9

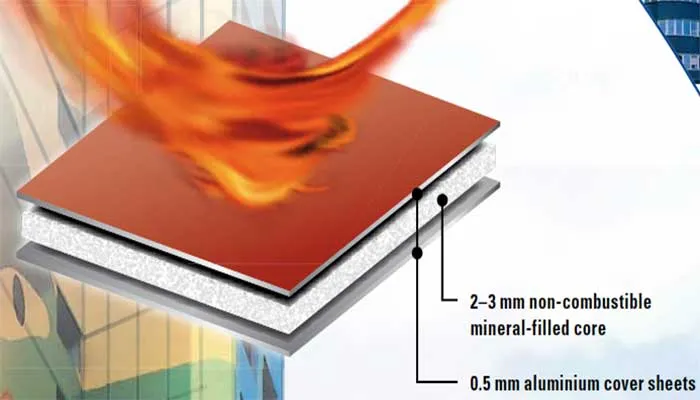

Fireproof ACP Aluminum Composite Panel Building Project

❓

Frequently Asked Questions

What is the difference between B1 and B2 fireproof grades?

B1 grade is classified as "difficult to flammability" and contains higher flame retardant content (approx 60%), while B2 is "combustible" but flame-retardant. B1 offers superior safety for high-rise buildings.

Can the panel size be customized for specific projects?

Yes, while standard sizes like 1220x2440mm are common, we can customize the length up to 5800mm and widths up to 2000mm to meet architectural requirements.

Is the coating weather-resistant?

Absolutely. PVDF (Kynar 500) coatings are highly recommended for external use as they provide excellent resistance to UV rays, industrial pollutants, and weather fading for decades.

What are the primary applications for these panels?

They are widely used for external curtain walls, interior wall decoration, airport/subway cladding, advertising signboards, and building renovations.

How does the fire-retardant core work?

The core is made of inorganic minerals like aluminum oxide. When exposed to high heat, these minerals do not support combustion and prevent the spread of flames.

What certifications do your panels hold?

Our products meet international standards including ASTM and ISO certifications, ensuring they comply with global construction safety and quality norms.
