PEKA Build Materials
1 / 5
| Model NO. | NT-8085 | Surface Finishing | Coating |
| Panel Thickness | 2mm, 3mm, 4mm | Aluminum Thickness | 0.12mm, 0.15mm, 0.18mm, 0.21mm |

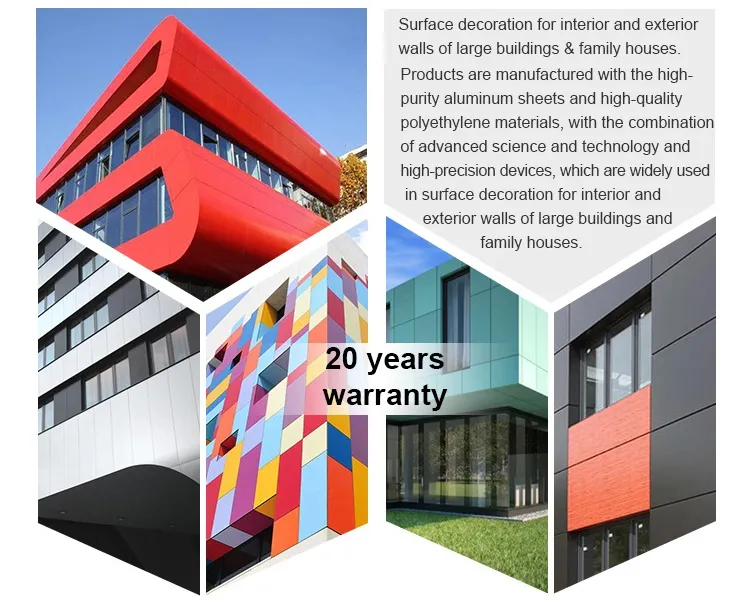

| Function | Anti-static, Anti-Bacterial, Mould-proof | Usage | External Wall, Curtain Wall, Interior, Advertising |
| Certification | CE, ASTM, ISO | Standard | GB/T 17748-2016 ISO9001, ISO14001 |
| Width Options | 1220mm, 1250mm, 1500mm | Core Material | LDPE |
| Surface Coating | PE, PVDF | Production Capacity | 21000sqm Per Day |

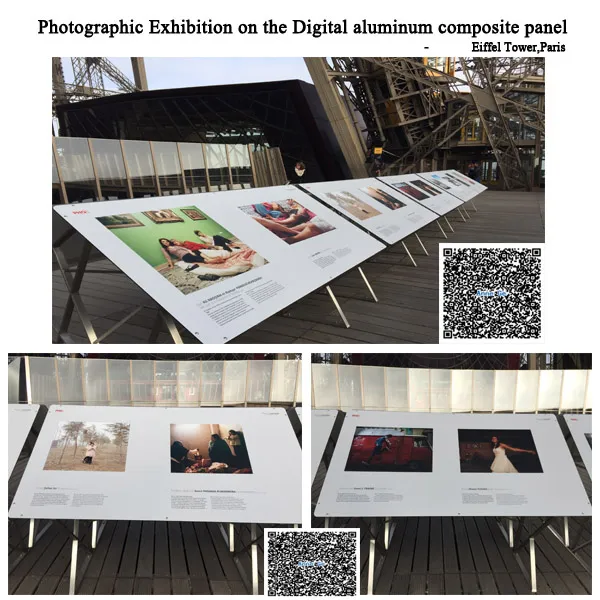

Aluminum Composite Panel (ACP) for signage comes with an optimized lacquer system designed for direct-to-substrate digital printing. It offers excellent ink adhesion, allowing for advanced printing speeds, which translates to higher output and lower operational costs.
Digital printing panels are particularly suited for digital UV flat printing, featuring a smooth glossy surface, high-definition output, and superior printing ink absorption.
| Aluminum Alloy | AA1100, AA3003, AA5005 |
| Aluminum Skin | 0.06mm to 0.50mm |
| Panel Thickness | 2mm, 3mm, 4mm, 5mm |
| Panel Width | 1220mm, 1250mm, 1500mm |
| Panel Length | 2440mm, 3050mm, 4050mm, 4880mm, 5000mm (Customized) |
| Surface Treatment | PVDF or PE coating |

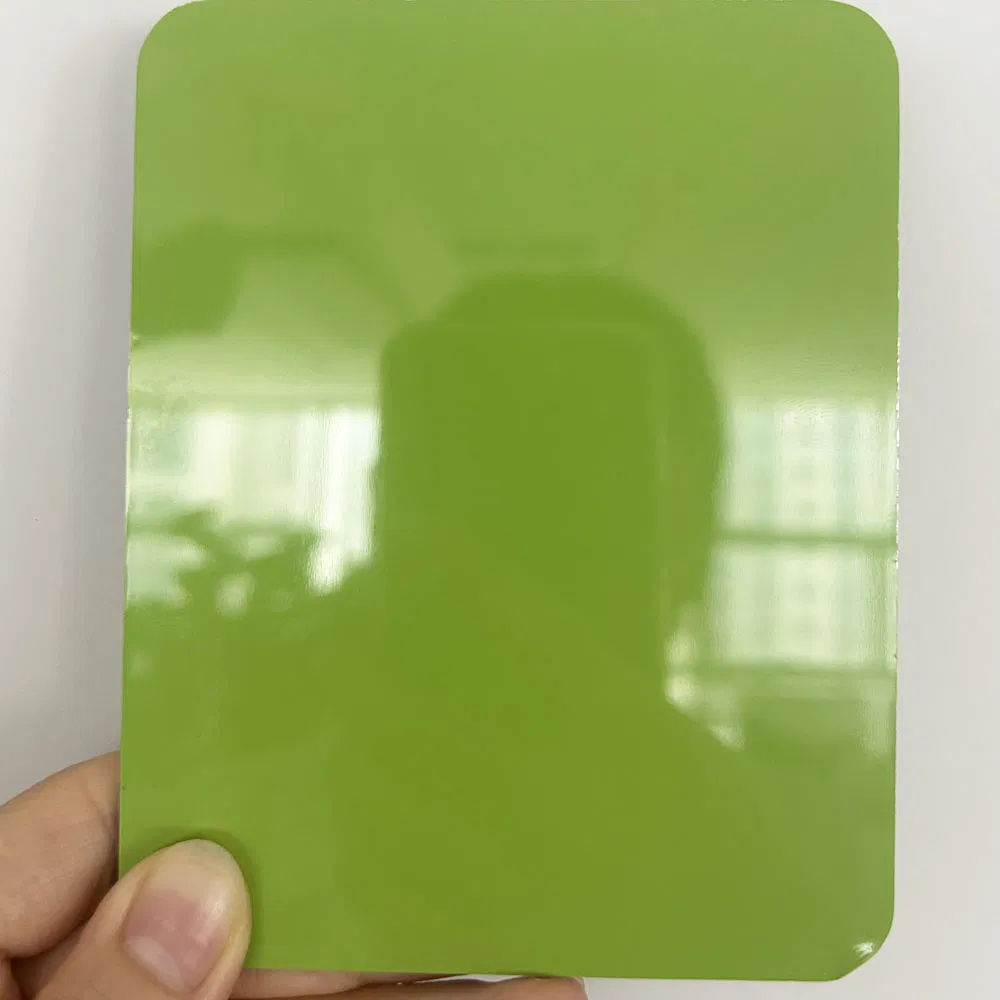

| Glossy Level | 20% - 80% |

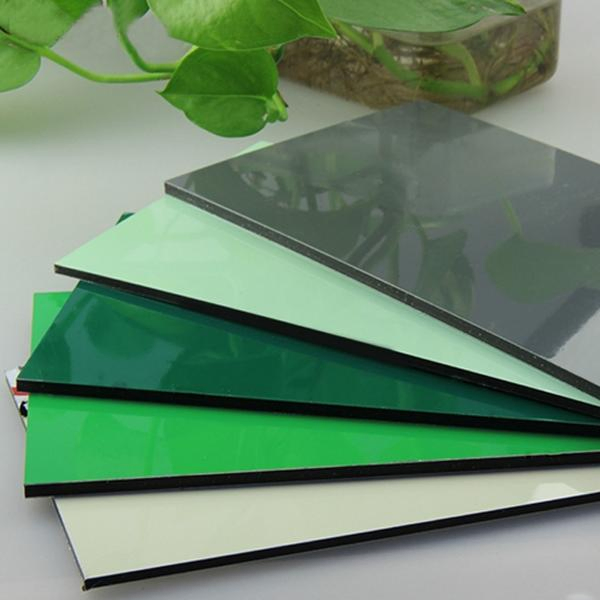

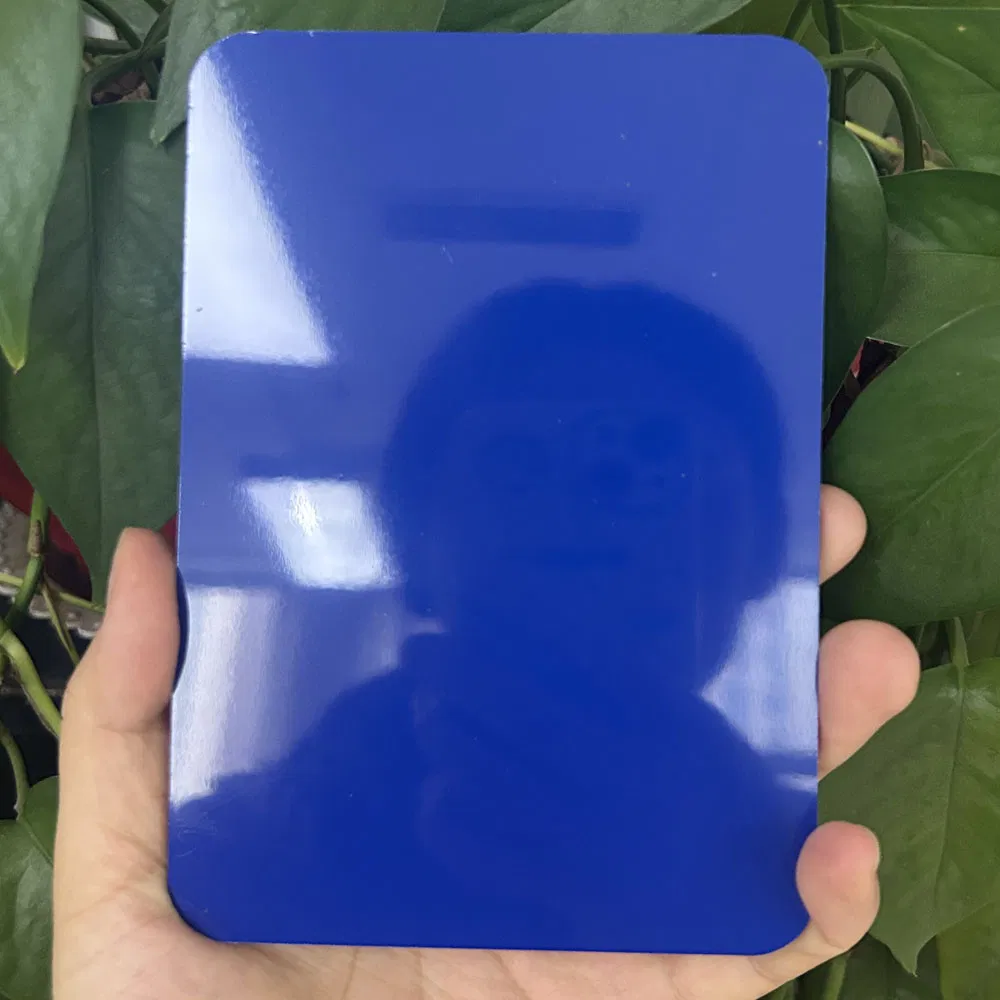

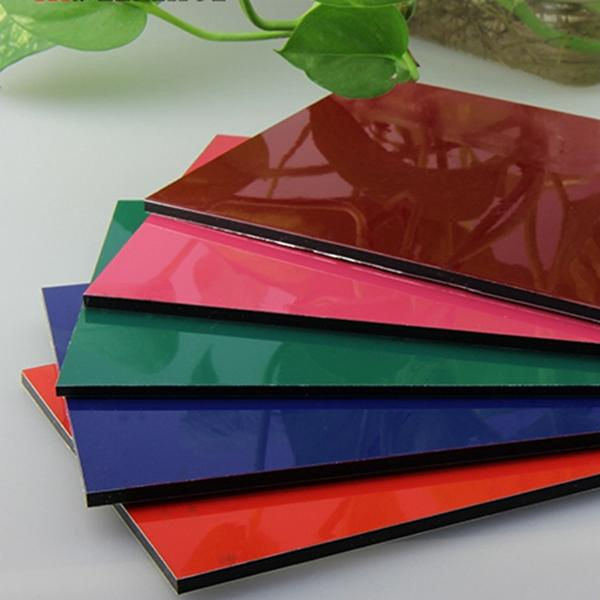

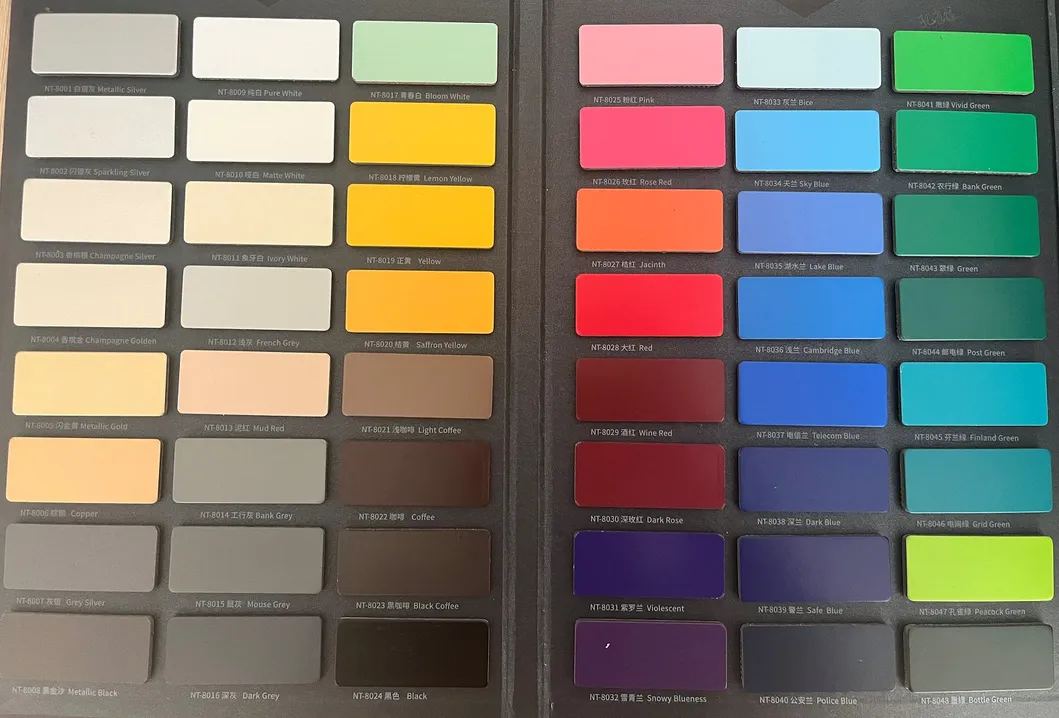

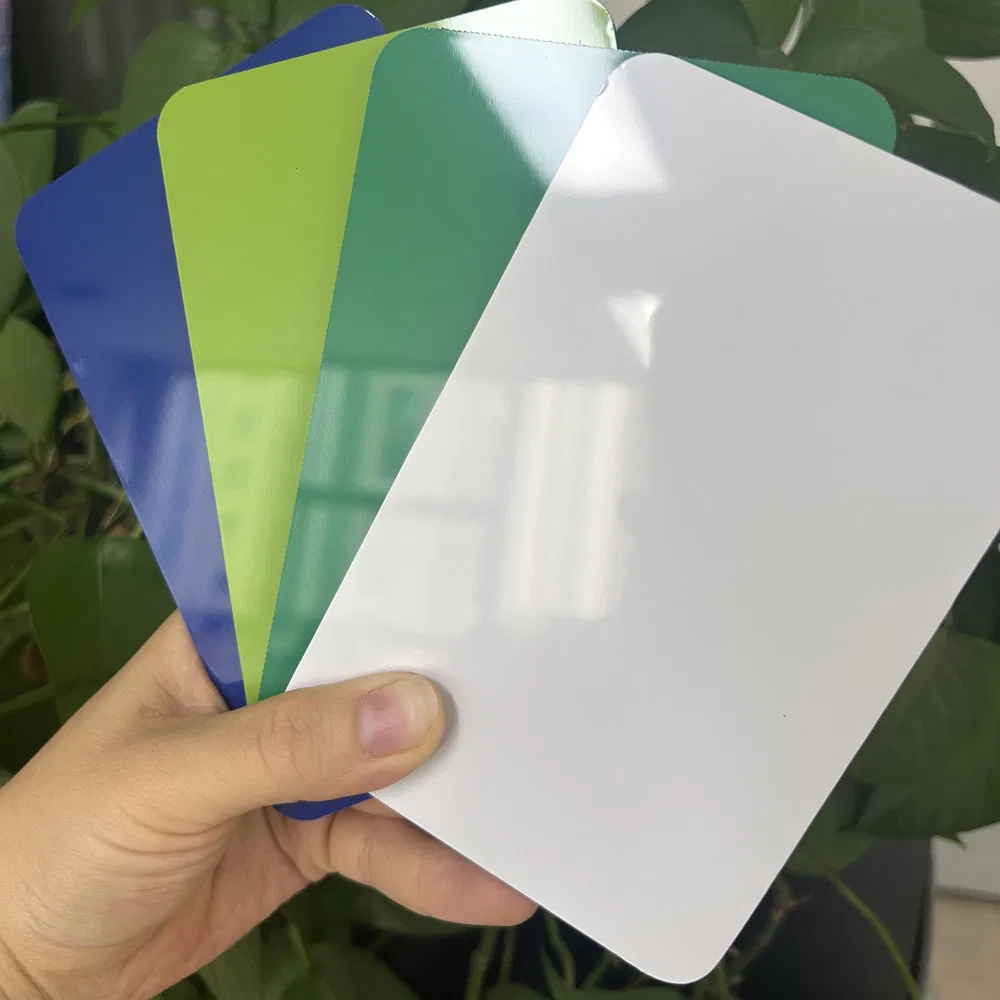

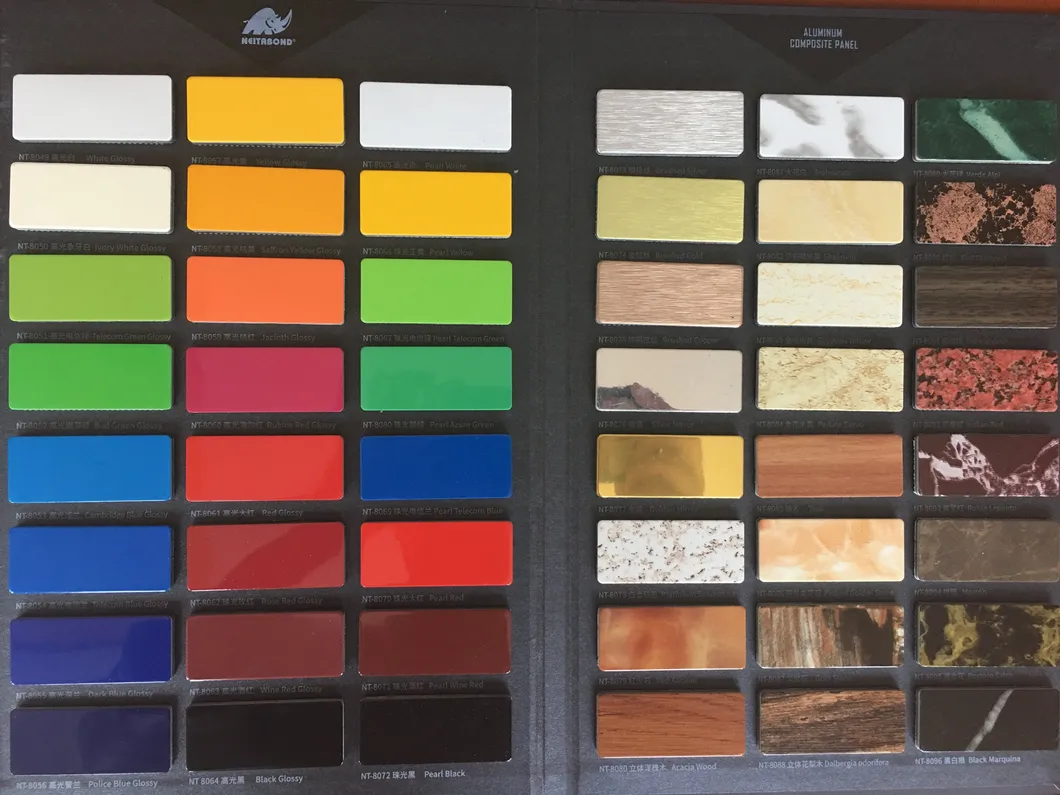

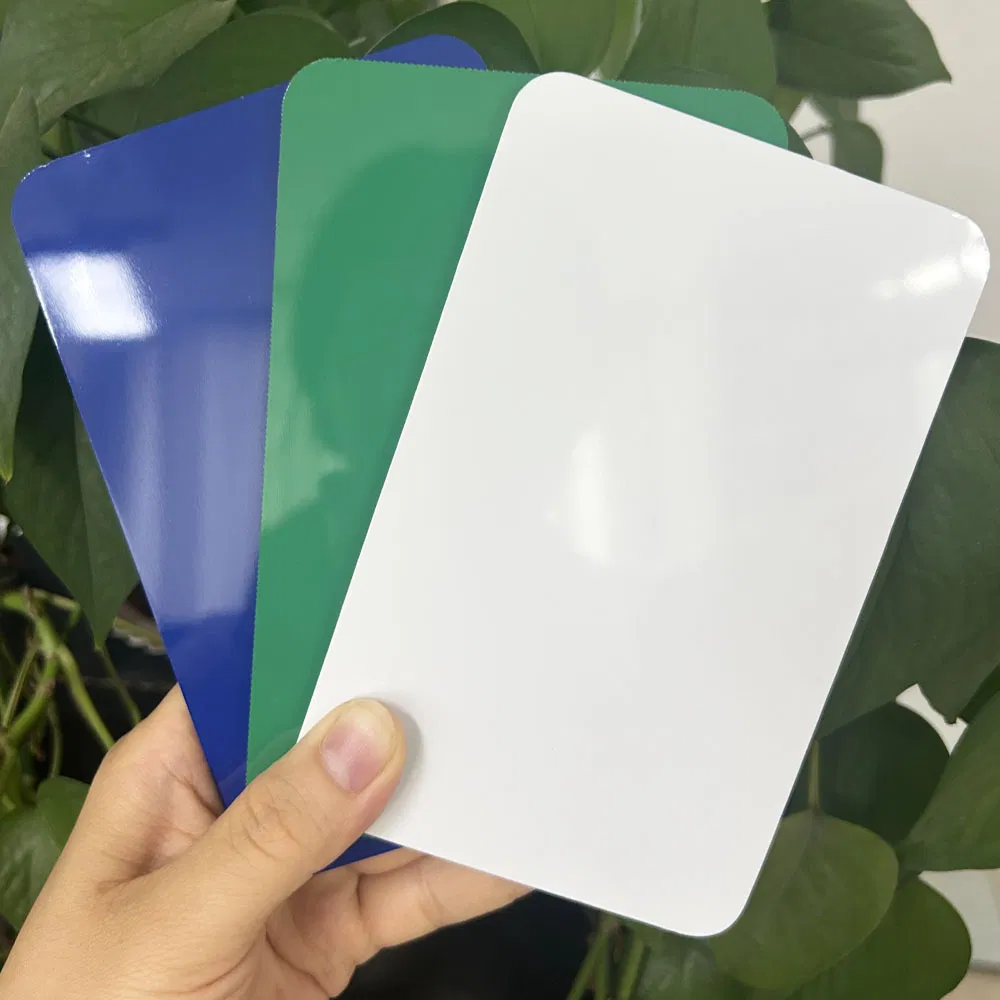

Available series include: Solid Color, Wood/Marble, High Glossy, and Spectra series. Special colors like RAL, Pantone, or customer samples can be matched.
| Paint Thickness | PE: 15-18um | PVDF: 23-28um | Warranty | PE: 7-10 years | PVDF: 15-20 years |
| Tolerance | Thickness: +/-0.2mm | Width: +/-2mm | Diagonal | +/-5mm |
Our products pass international standards including: REACH, RoHS, AAMA2605, EN13501, SGS, BV, ASTM-E84, and ISO certification.

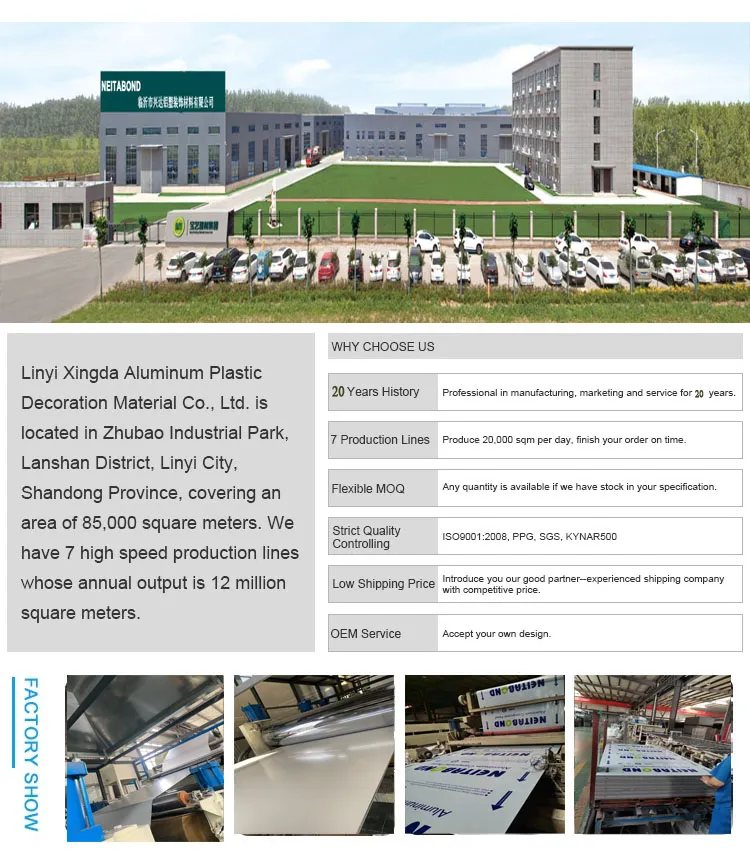

Production facilities include 7 advanced aluminium composite panel production lines, exporting to more than 85 countries since 2008.
