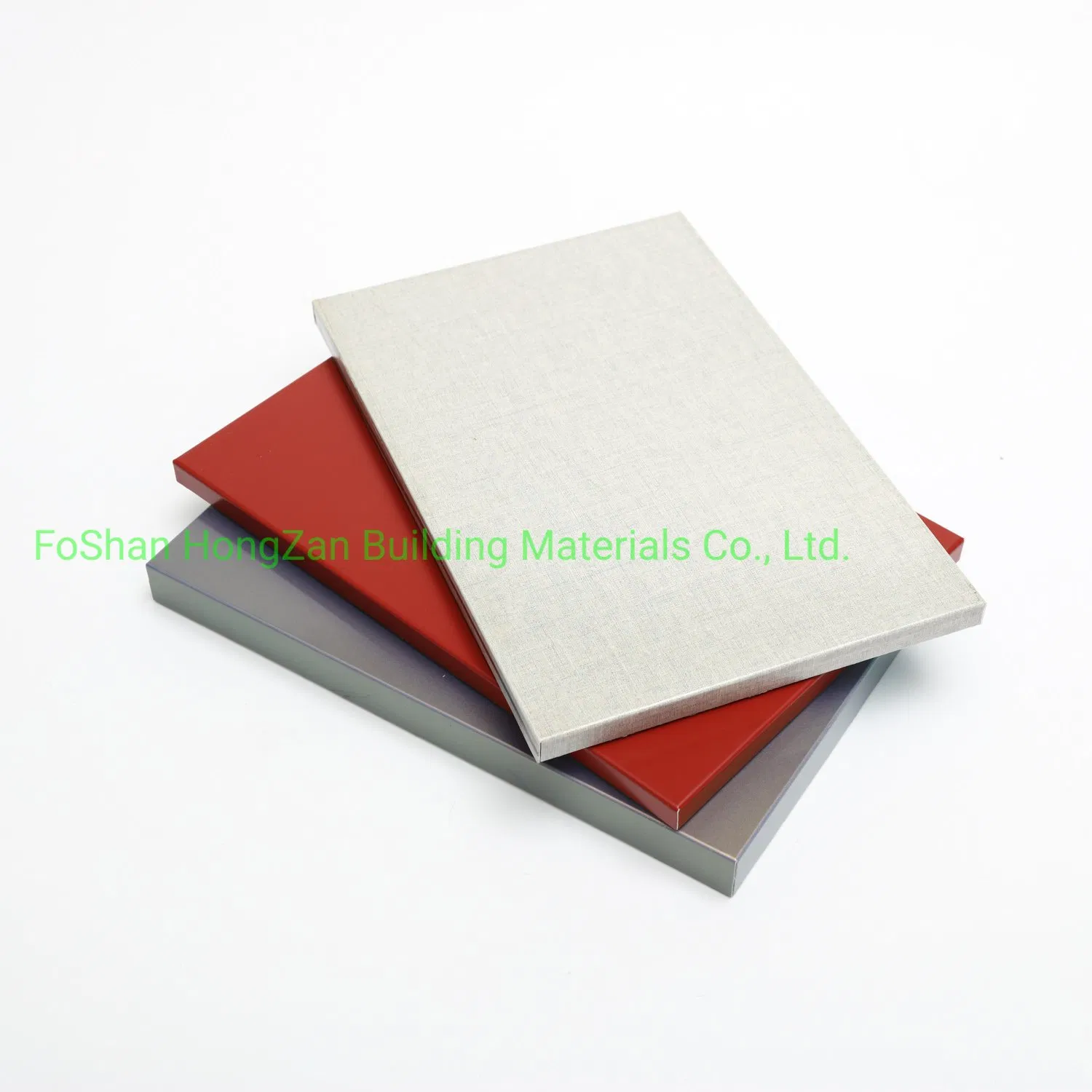

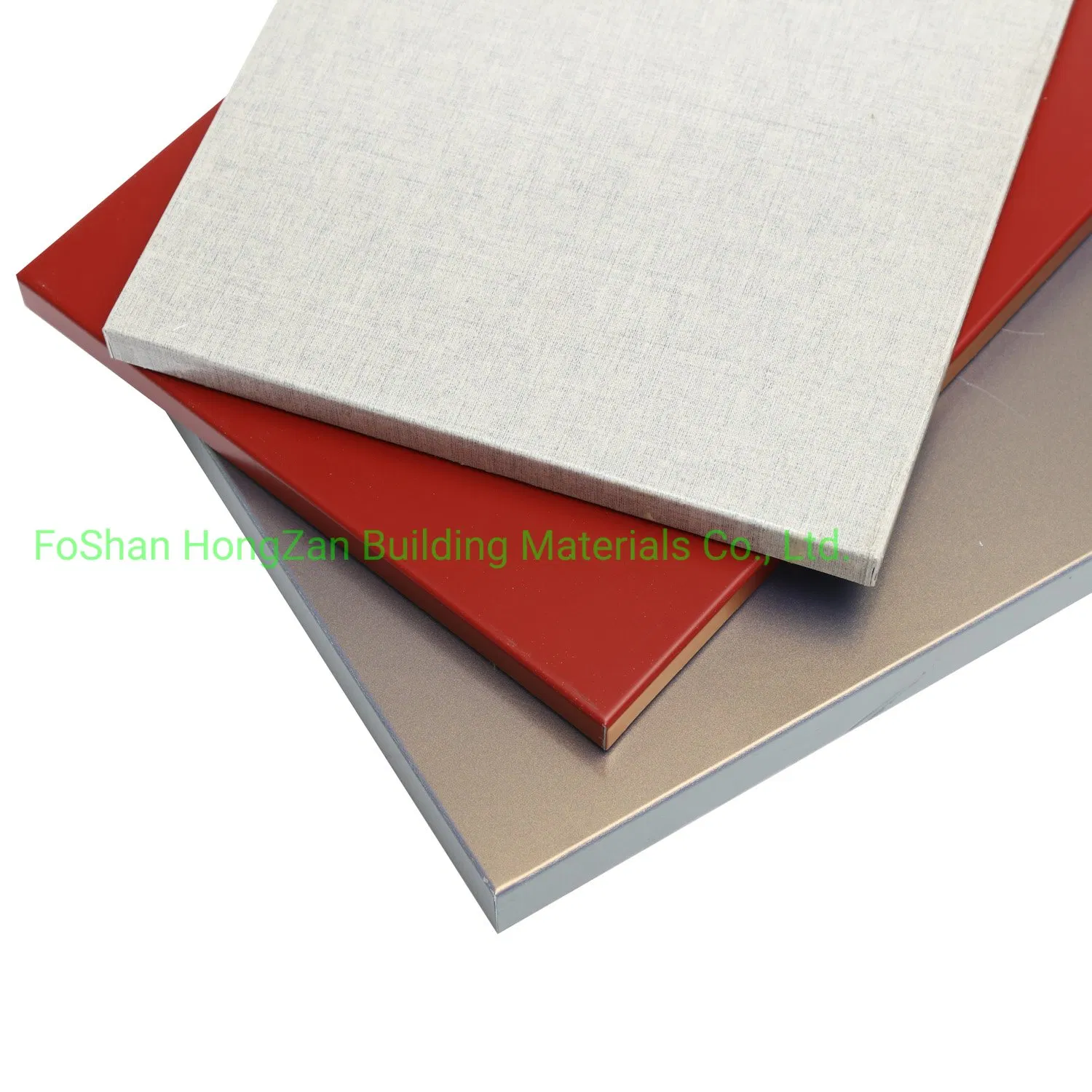

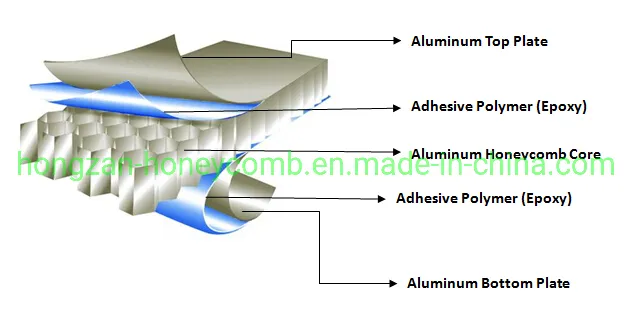

Aluminum honeycomb panels are premium environmental composite materials known for perfect strength, super flatness, and excellent insulation properties.
A. Ultra-Light Weight & High Rigidity: Honeycomb panels weigh only 1/5 of aluminum panels of the same rigidity. A 15mm panel weighs only 6kg per square meter.
B. Sound & Heat Insulation: Dividied cells block air flow and sound waves (20-30DB reduction), making it an ideal energy-saving material.
C. Superior Flatness: Continuous roller coating technology ensures color consistency and weather resistance for long-term outdoor use.
| Property | 20mm Thickness | 25mm Thickness |
|---|---|---|
| Weight (kg/m²) | 7.4 | 7.8 |
| Inertia Moment I (cm⁴/m) | 19.85 | 31.67 |
| Section Modulus W (cm³/m) | 19 | 24 |
| Rigidity E.I (KN cm²/m) | 139,000 | 2,217,000 |
| Tensile Strength | Rm ≥ 220 N/mm² | |
| Core Size | 1/4'' (6.3mm) | |

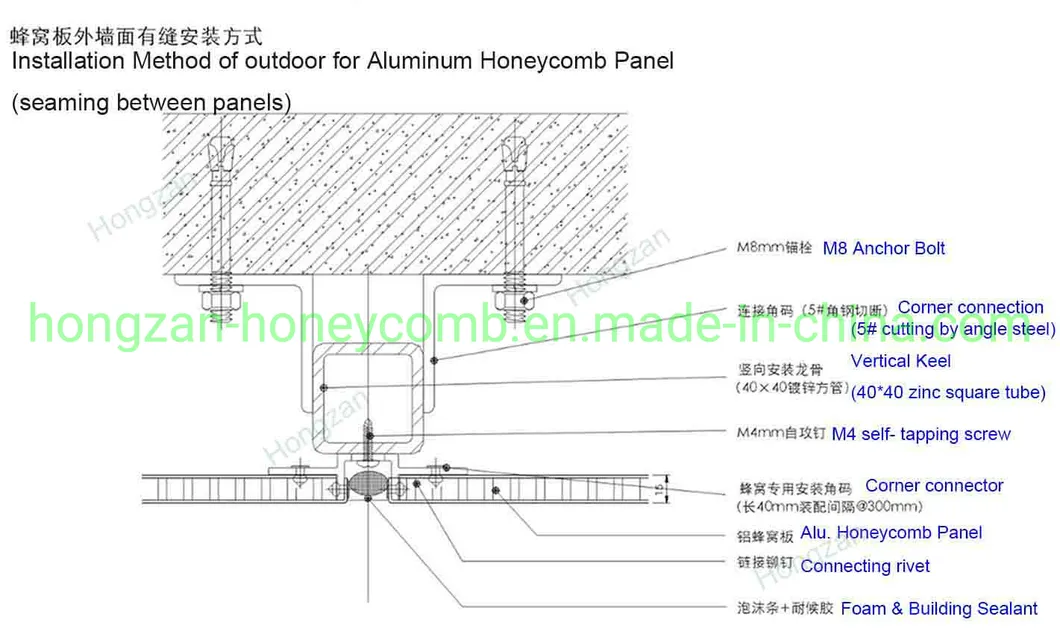

Type A: Standard Seaming Method

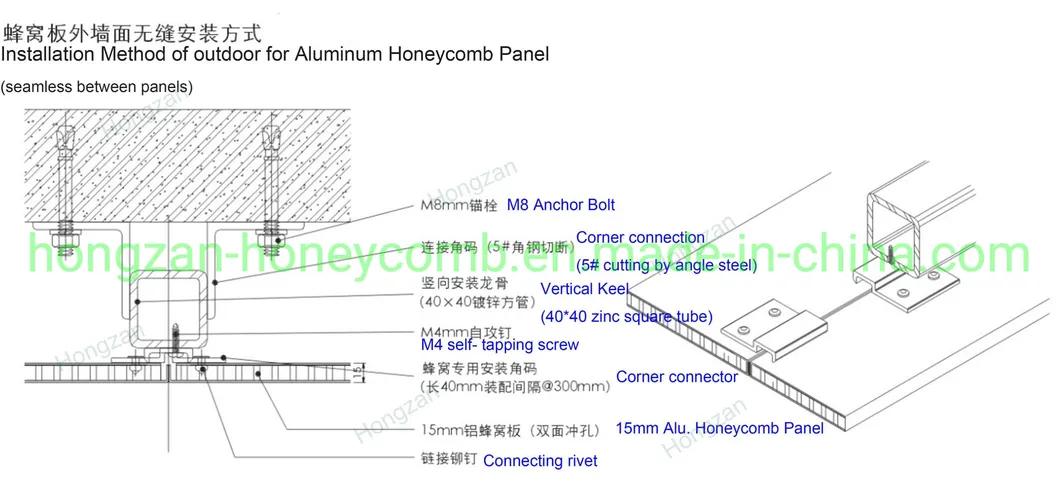

Type B: Standard Seamless Method
