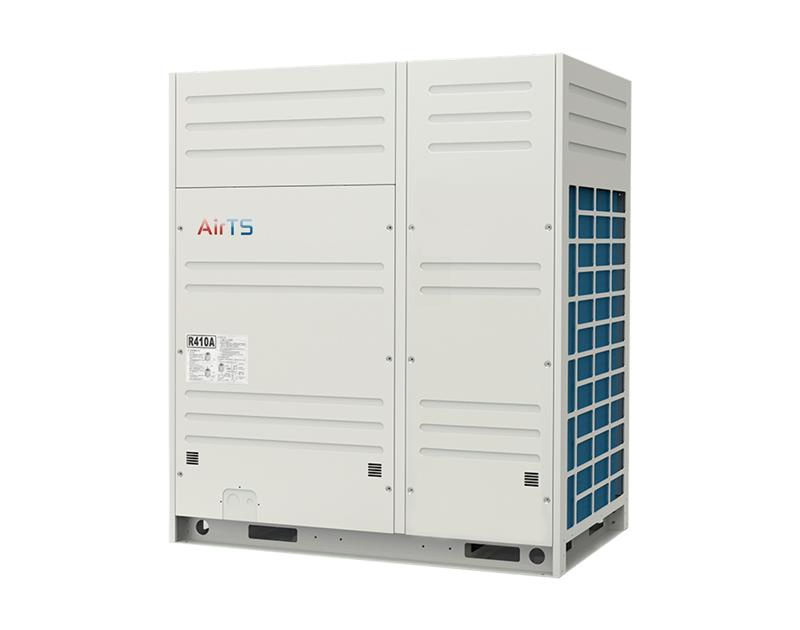

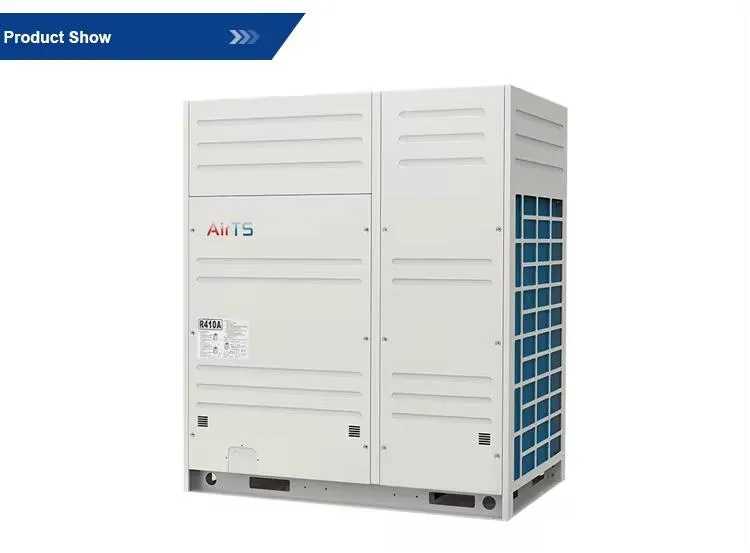

Airts Vrf HVAC System for High Ceiling and Open Space

1 / 5

Airts Vrf HVAC System for High Ceiling and Open Space

Customization:	Available
After-sales Service:	Long Term
Warranty:	One Year

Send Inquiry

Product Description

Basic Information

Model NO.

AirTS-AX

Type

Cabinet Air Conditioner

Air Tube Material

Galvanized Sheet

Operating Voltage

380/400 VAC

Mounting

Floor Standing

Certification

ISO, CE

Function

Cooling, Heating

Cold & Heat Source

R410A

Cooling Capacity

33.5 Kw

Heating Capacity

37.5 Kw

Dimensions

930*860*1690 mm

Lifetime

>20 years

★

Product Description

Key Features

Designed for buildings with height above 4 meters
Special indoor units for large and high ceiling spaces
Long air throw with uniform air distribution
R410A refrigerant, efficient and eco-friendly
Cooling and heating in one system
Ductless installation, flexible and cost-effective
Energy-saving inverter technology

Main Applications

Industrial workshops and manufacturing factories
Warehouses and logistics centers
Steel structure buildings
Exhibition halls and commercial large-spaces

⚙

Technical Excellence

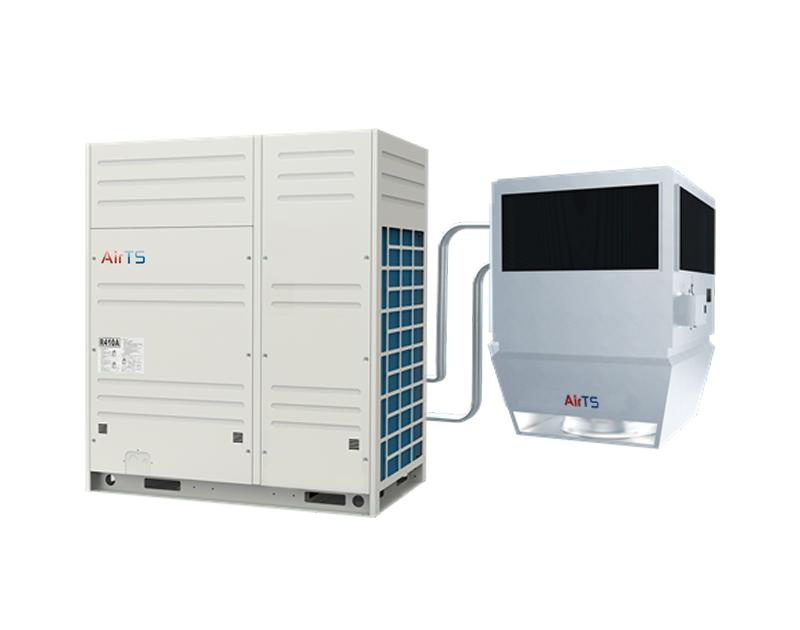

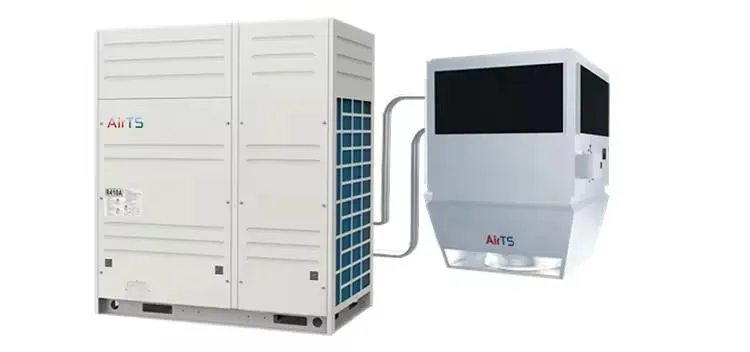

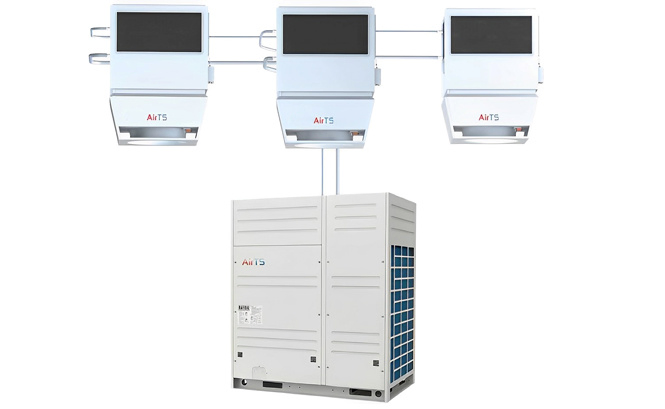

Working Principle: The VRF system (Variable Refrigerant Flow) connects one outdoor unit to several independent indoor units. It controls the compressor's cooling fluid circulation and the flow into various indoor heat exchangers to meet specific zone cooling and heating needs. The system adjusts the compressor speed and refrigerant flow automatically to operate more efficiently, reducing energy consumption during lighter use.

📊

Technical Parameters

Model Module	HP	Cooling (kW)	Heating (kW)	Airflow (m³/h)	Size (LxWxH mm)	APF
335AX	12	33.5	37.5	12000	930×860×1690	4.9
400AX	14	40	45	13980	1240×860×1690	4.9
450AX	16	45	50	13980	1240×860×1690	4.8
500AX	18	50.4	56	13980	1240×860×1690	4.7
560AX	20	56	63	25800	1500×860×1690	4.75
615AX	22	61.5	69	25800	1500×860×1690	4.7
730AX	26	73.5	81.5	27000	1900×860×1690	4.6
900AX	32	90	100	27000	1900×860×1690	4.5

🛠

Installation & Maintenance

No air ducts required, significantly saving overhead space and material costs.
Modular design allows for faster installation compared to traditional centralized systems.

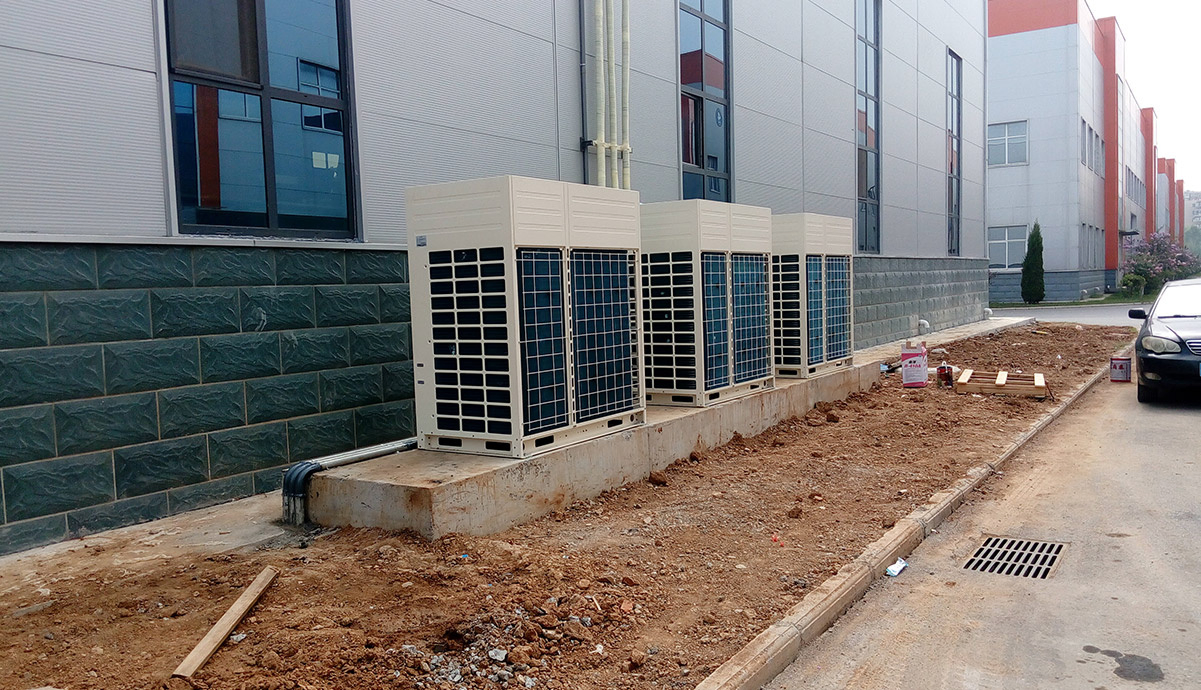

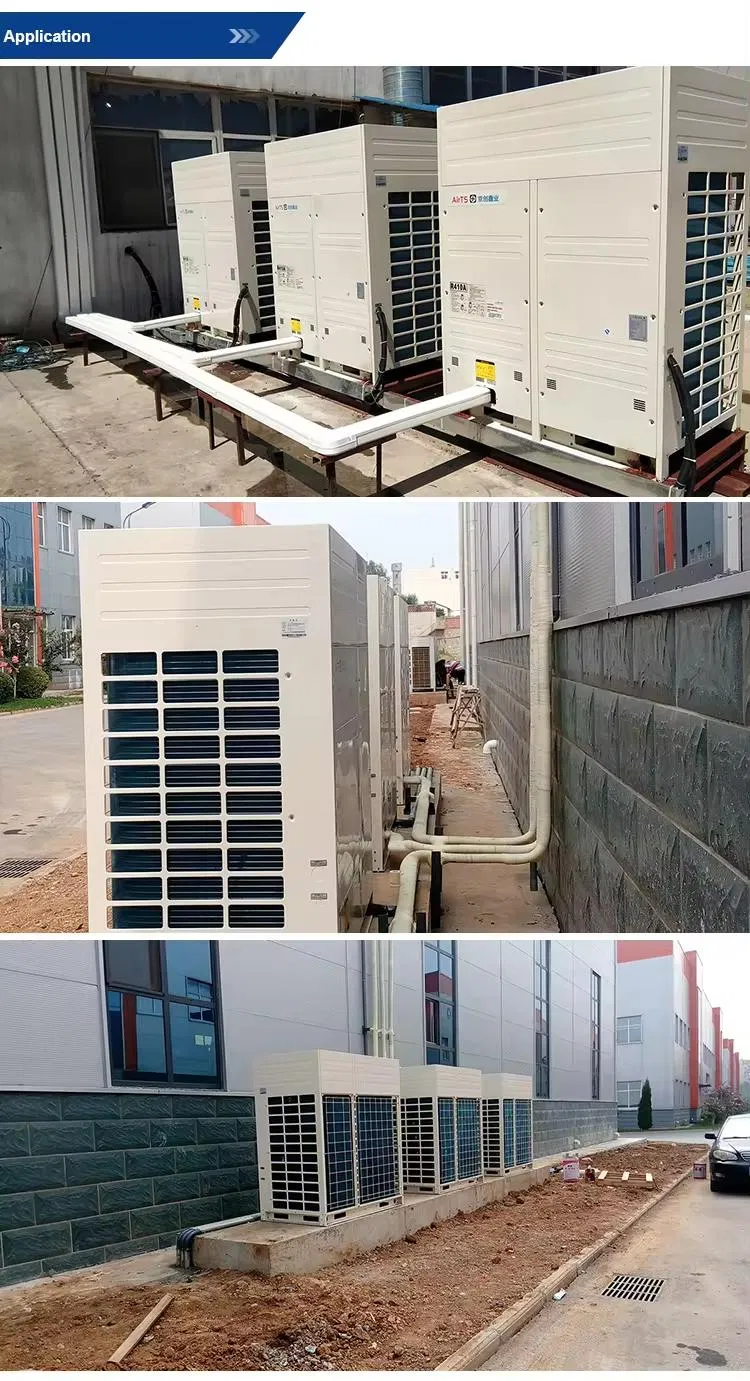

Outdoor units are typically installed on roofs or in open areas to save building footprint.
Easy access design for routine inspection and simplified filter maintenance.

Frequently Asked Questions

Is this system suitable for standard residential use?

No, this system is specifically engineered for large spaces with ceiling heights between 4 and 30 meters, such as factories and warehouses.

What are the benefits of a ductless VRF system?

It eliminates the need for bulky air ducts, reducing installation complexity, lowering construction costs, and preventing energy loss associated with ductwork.

Can the system operate in extreme temperatures?

Yes, the system is designed to operate in cooling mode from -5°C up to 56°C and in heating mode down to -5°C (standard range).

What type of refrigerant is used?

The system utilizes R410A refrigerant, which is an environmentally friendly, high-efficiency cooling medium.

Does the system support intelligent controls?

Yes, the system features wireless control, variable frequency adjustment, and can be integrated with Building Management Systems (BMS).

How does it ensure uniform temperature in large halls?

The high-airflow indoor units are designed for long air throw distances, ensuring that air reaches occupied zones even in buildings with very high ceilings.
