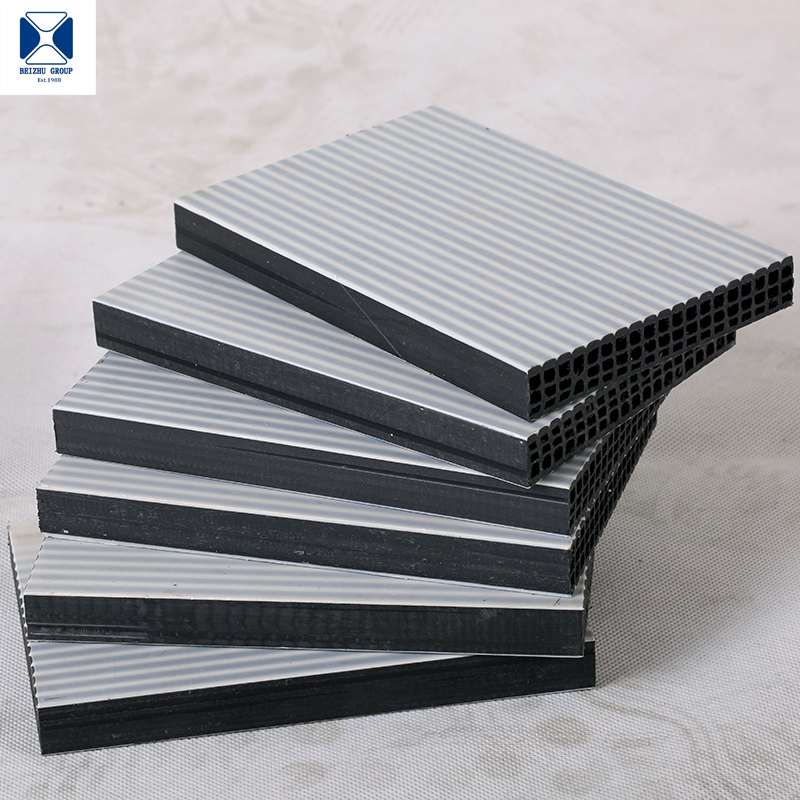

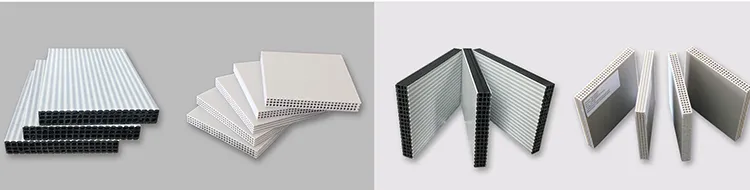

| STANDARD SIZE | THICKNESS | WEIGHT/PC | QTY/20FT | QTY/40HQ |
|---|---|---|---|---|
| 2440*1220MM | 12 MM | 21 KGS | 560 PCS | 1260 PCS |
| 2440*1220MM | 15 MM | 24 KGS | 450 PCS | 1026 PCS |
| 2440*1220MM | 18 MM | 28 KGS | 400 PCS | 900 PCS |
| 2440*1220MM | 20 MM | 30 KGS | 250 PCS | 800 PCS |
Note: Cutting and customized sizes are available.

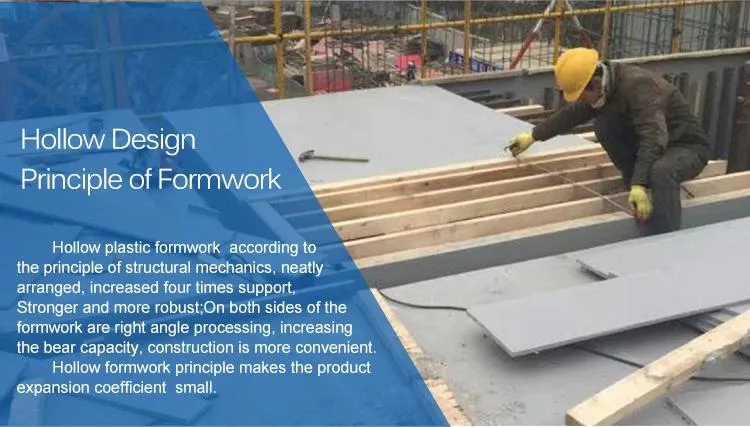

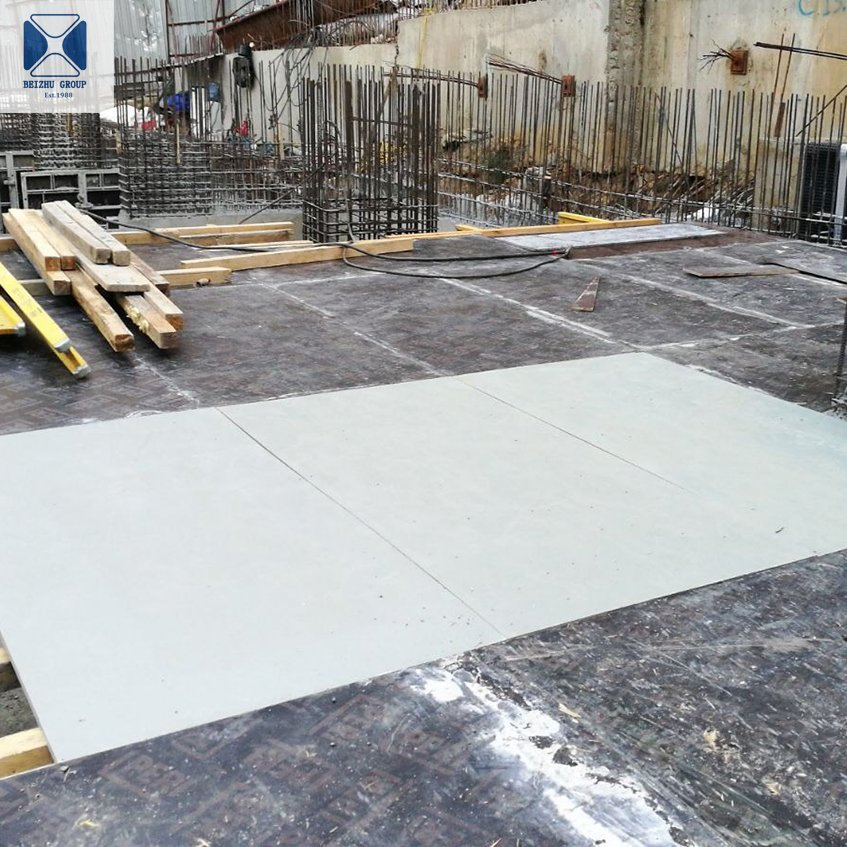

1. Use method is identical to wooden formwork; hollow plastic formwork and battens should be arranged in a cross shape.
2. No mold release agent is required before use.

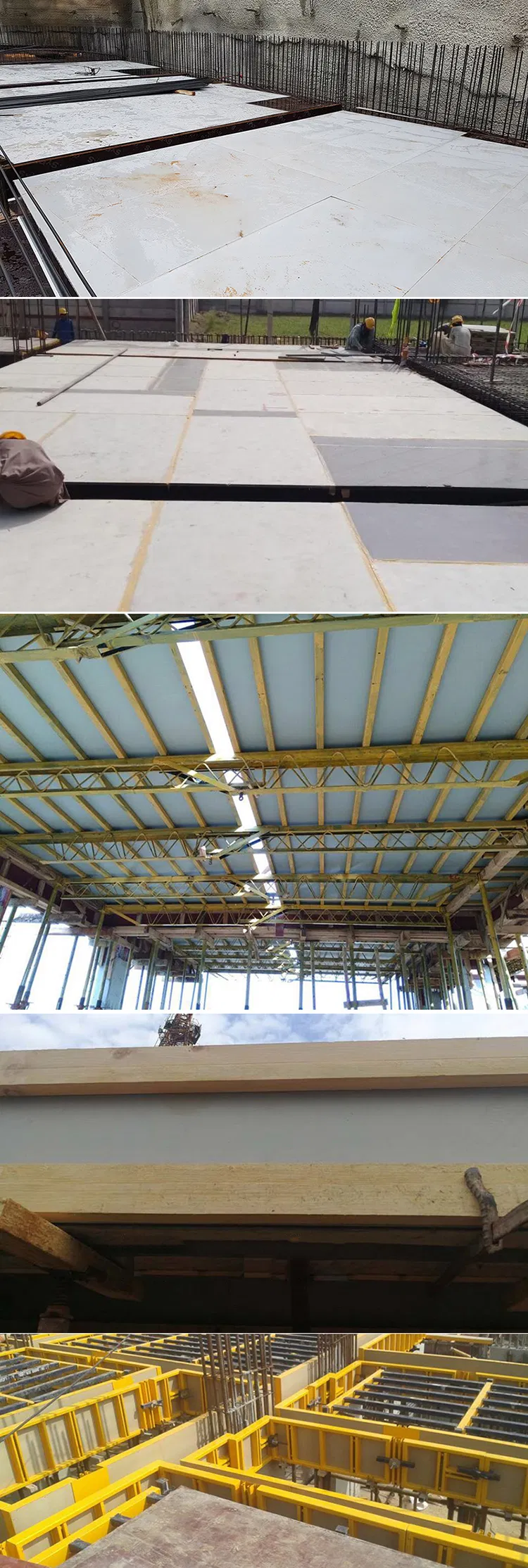

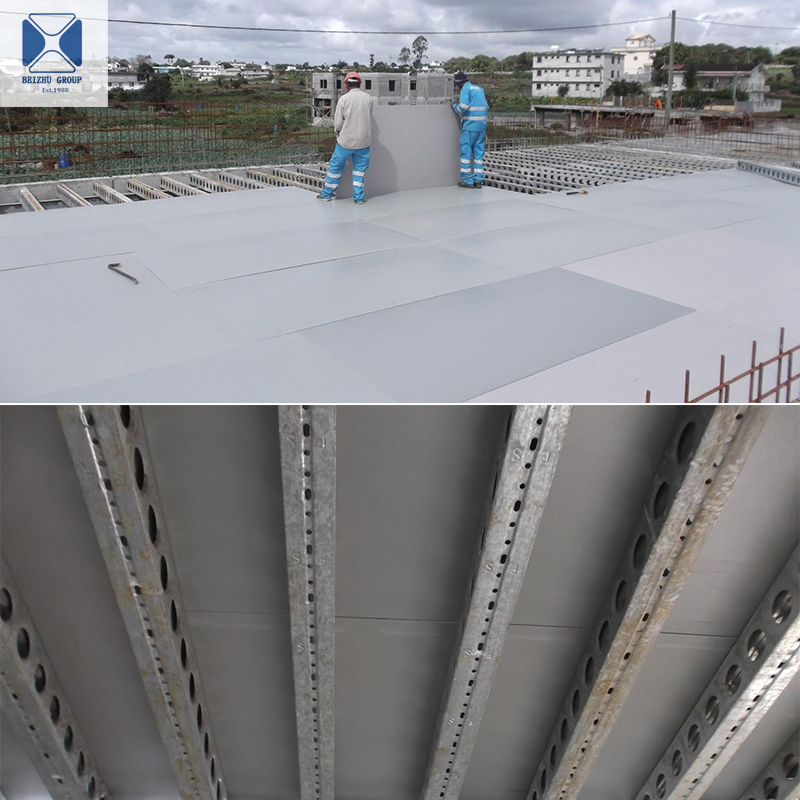

3. Timber Spacing: For 18mm thickness, use 350-400mm spacing for slabs <15cm thick, and 300-350mm for slabs >15cm. For shear walls 2800mm high, spacing should be 200-250mm.

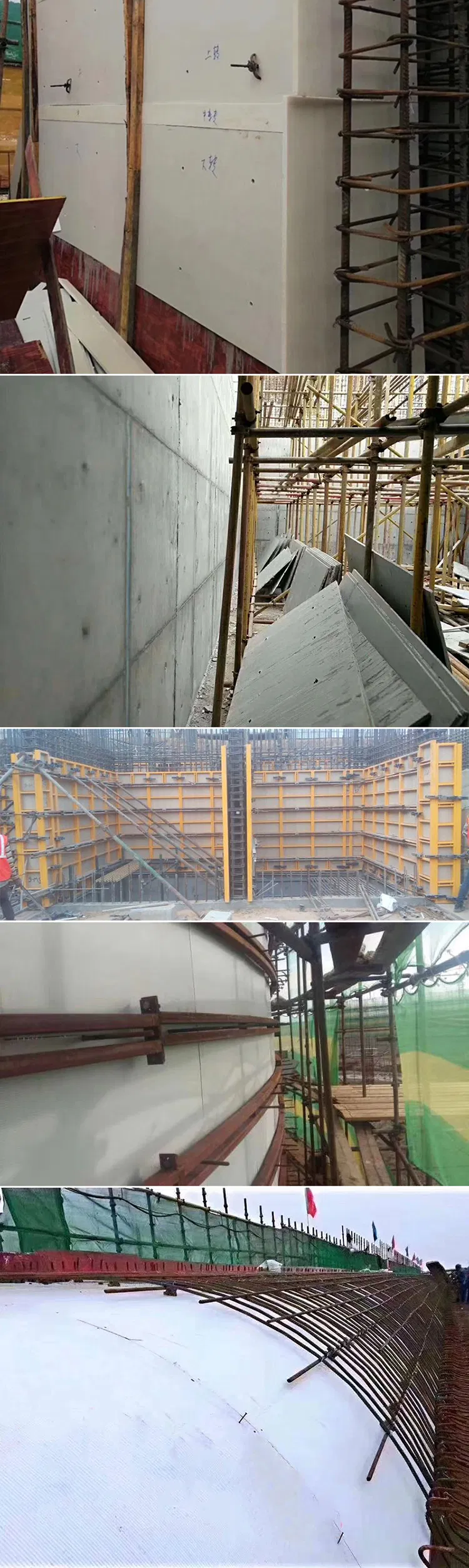

4. Assembly: Assemble formwork into whole pieces for shear walls before hoisting to ensure straightness and reduce labor.

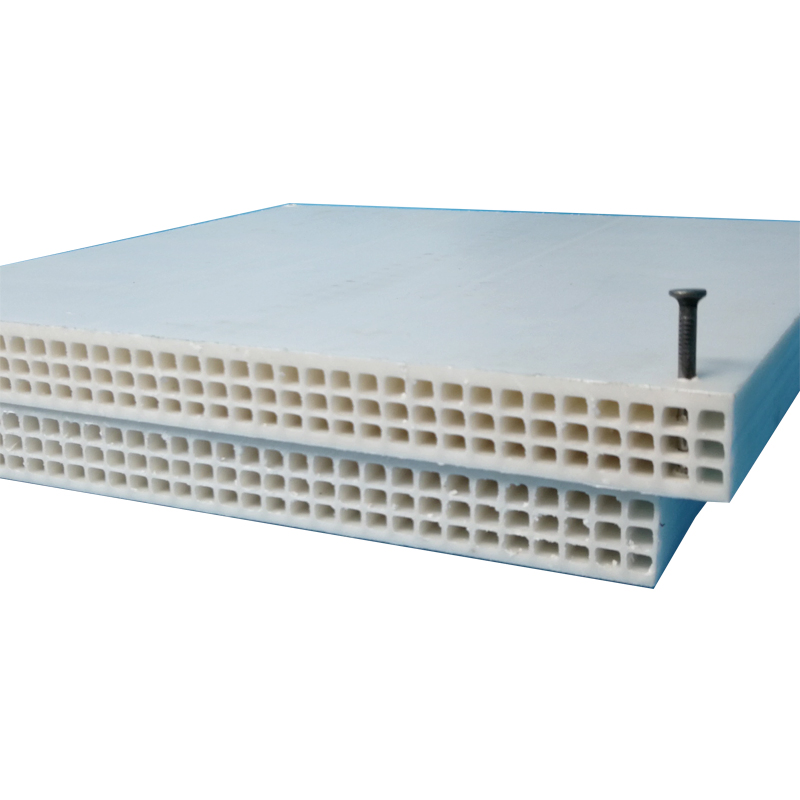

5. Nailing: Distance from edge should be 15-30mm; nail length 40-50mm.
6. Seams: Reserve a 15mm allowance for the beam bottom to ensure no slurry leakage.
7. Temperature: Avoid peak temperatures during mold matching. Reserve a 1-2mm gap if temperature differences exceed 5-10ºC.
8. Storage: Place formwork flat after releasing the mould.
Established in 2008, our facility covers 12,000 square meters with 5 advanced production lines and a daily capacity of 1,000 PCS. We specialize in construction plastic formwork, holding international quality certifications and serving global markets including Europe, Southeast Asia, and Africa.
