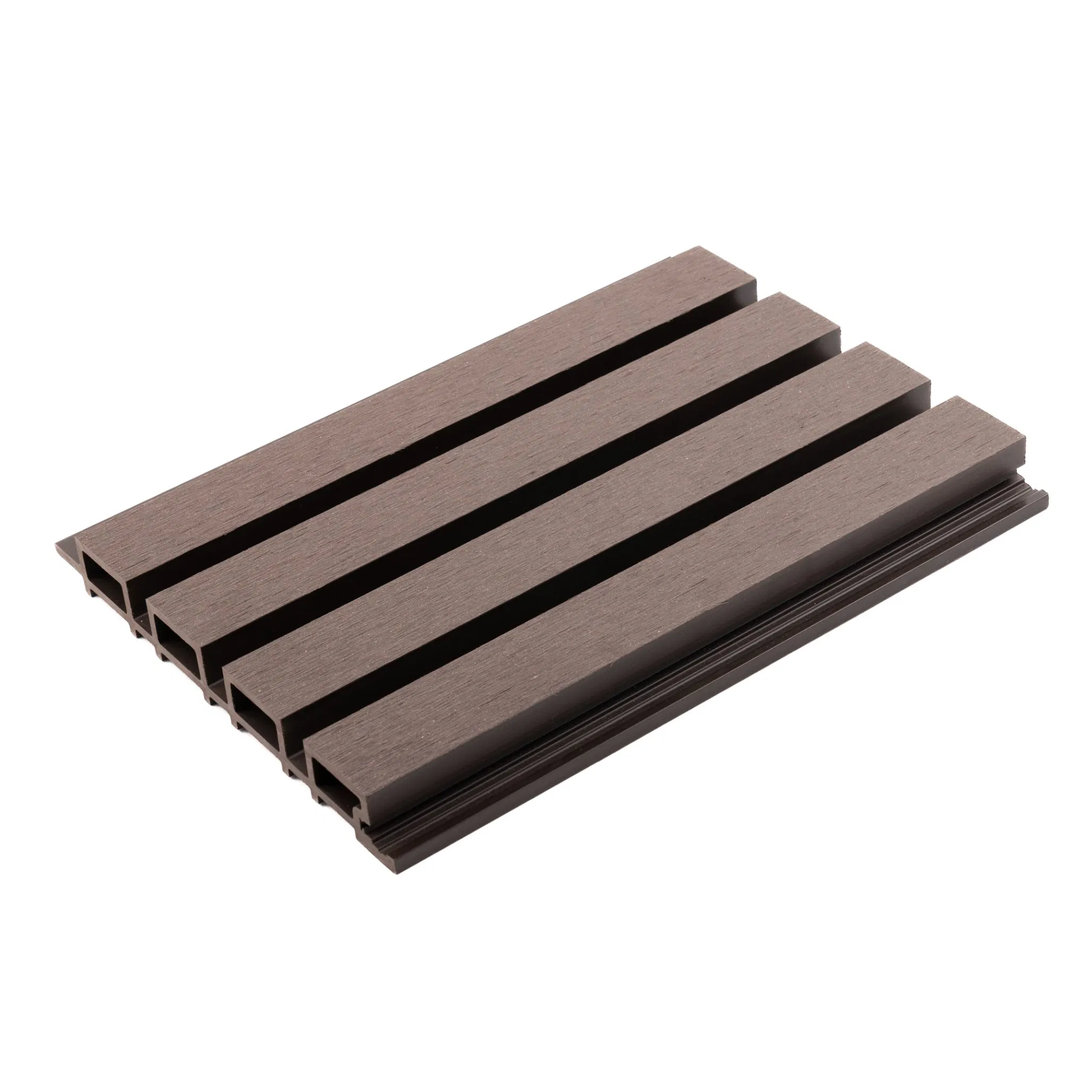

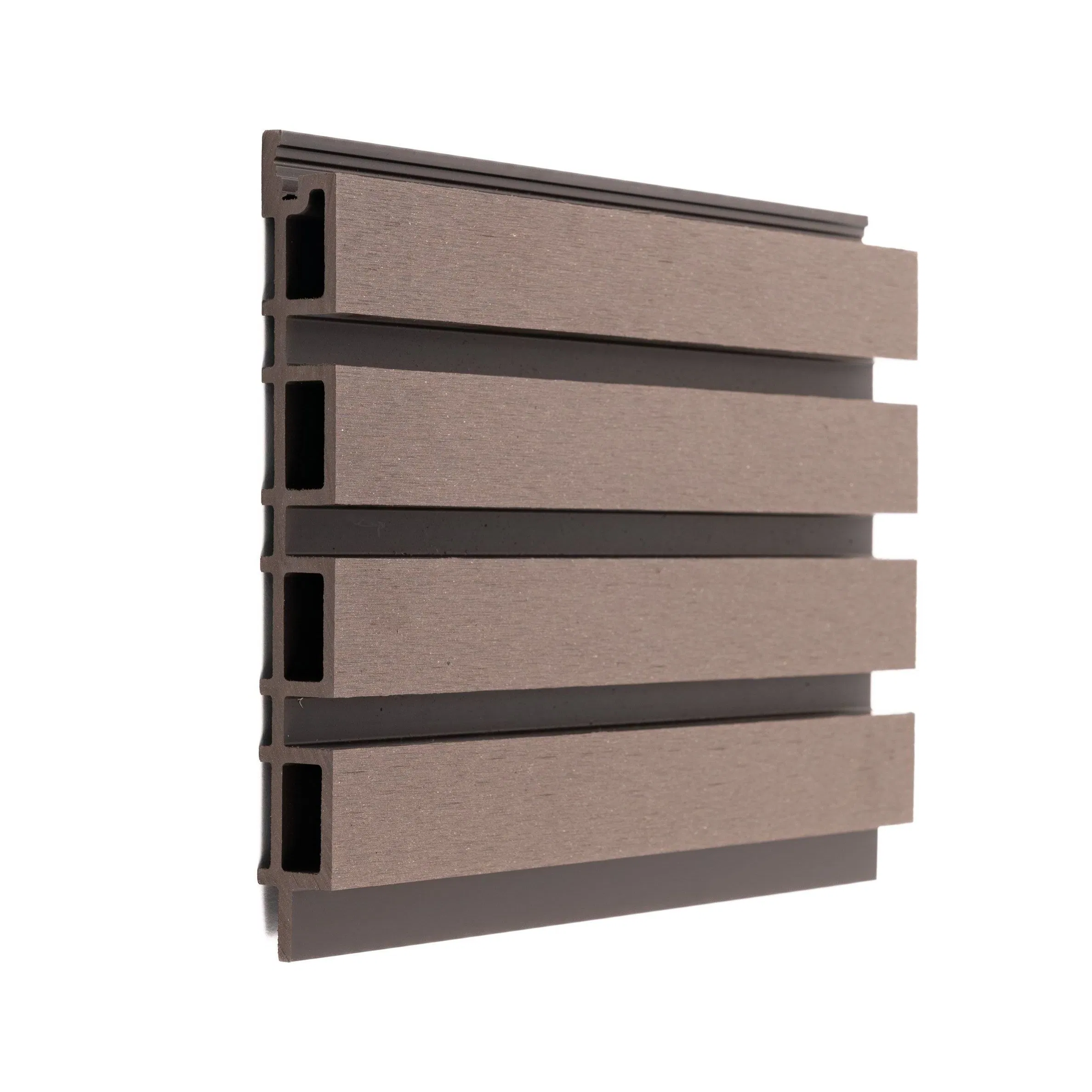

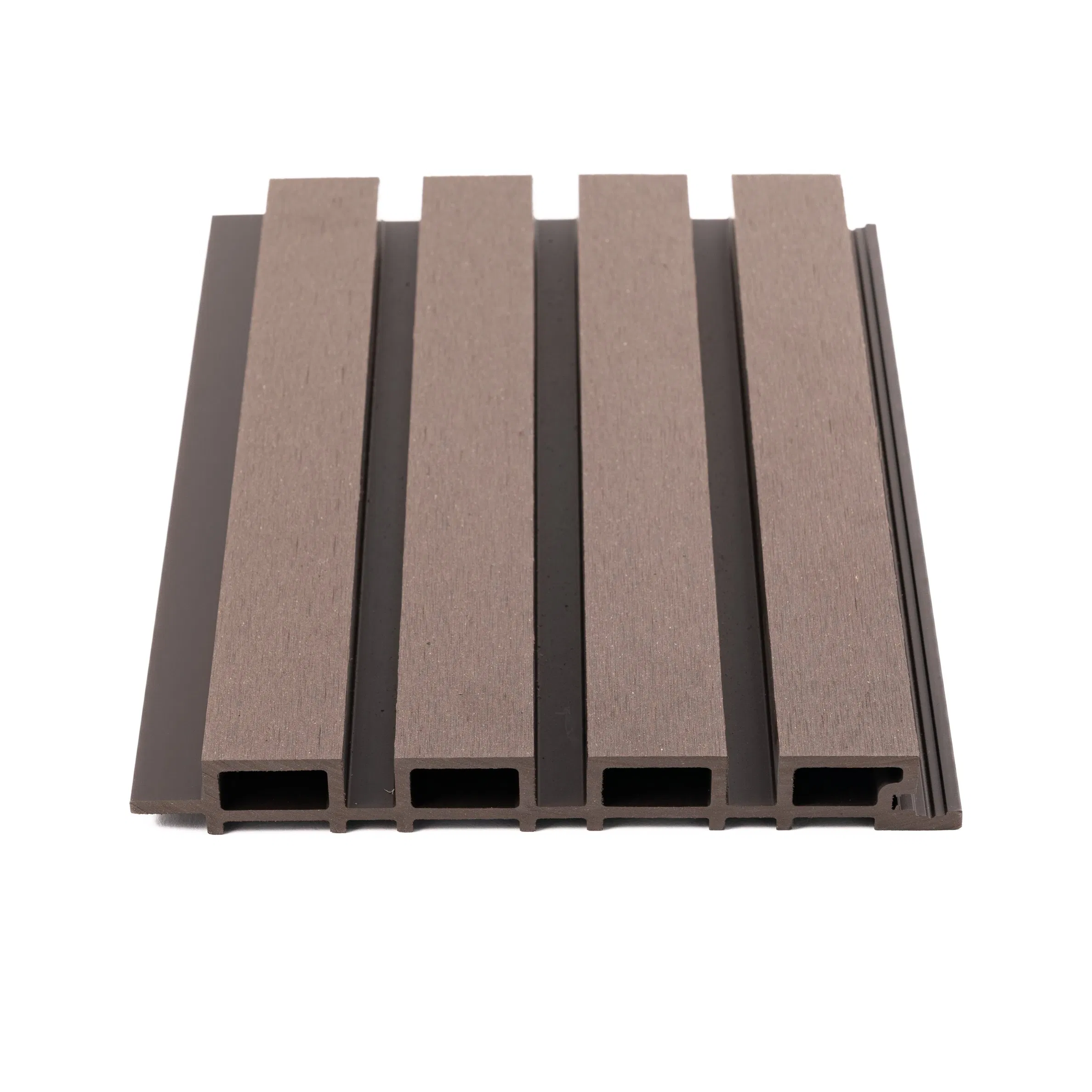

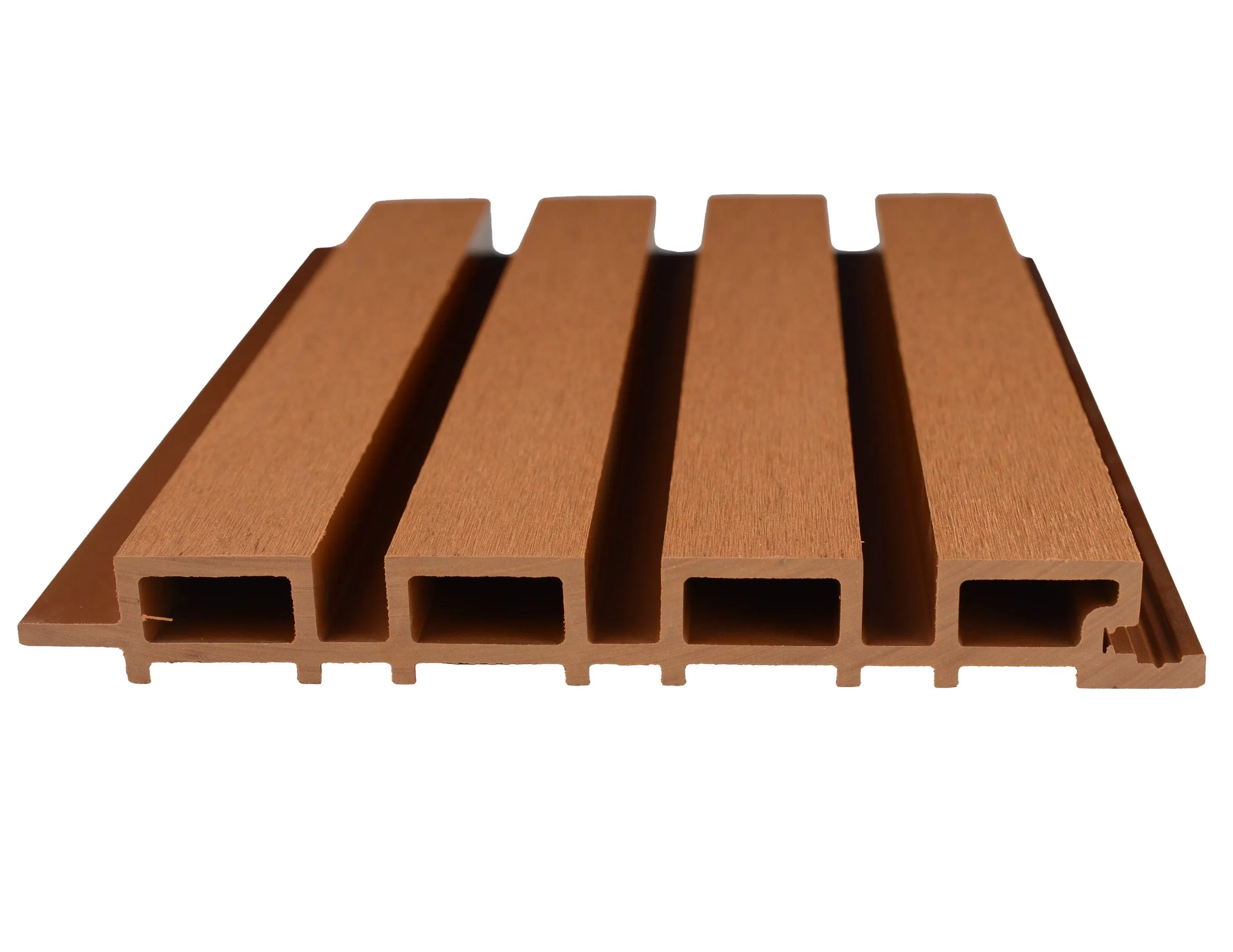

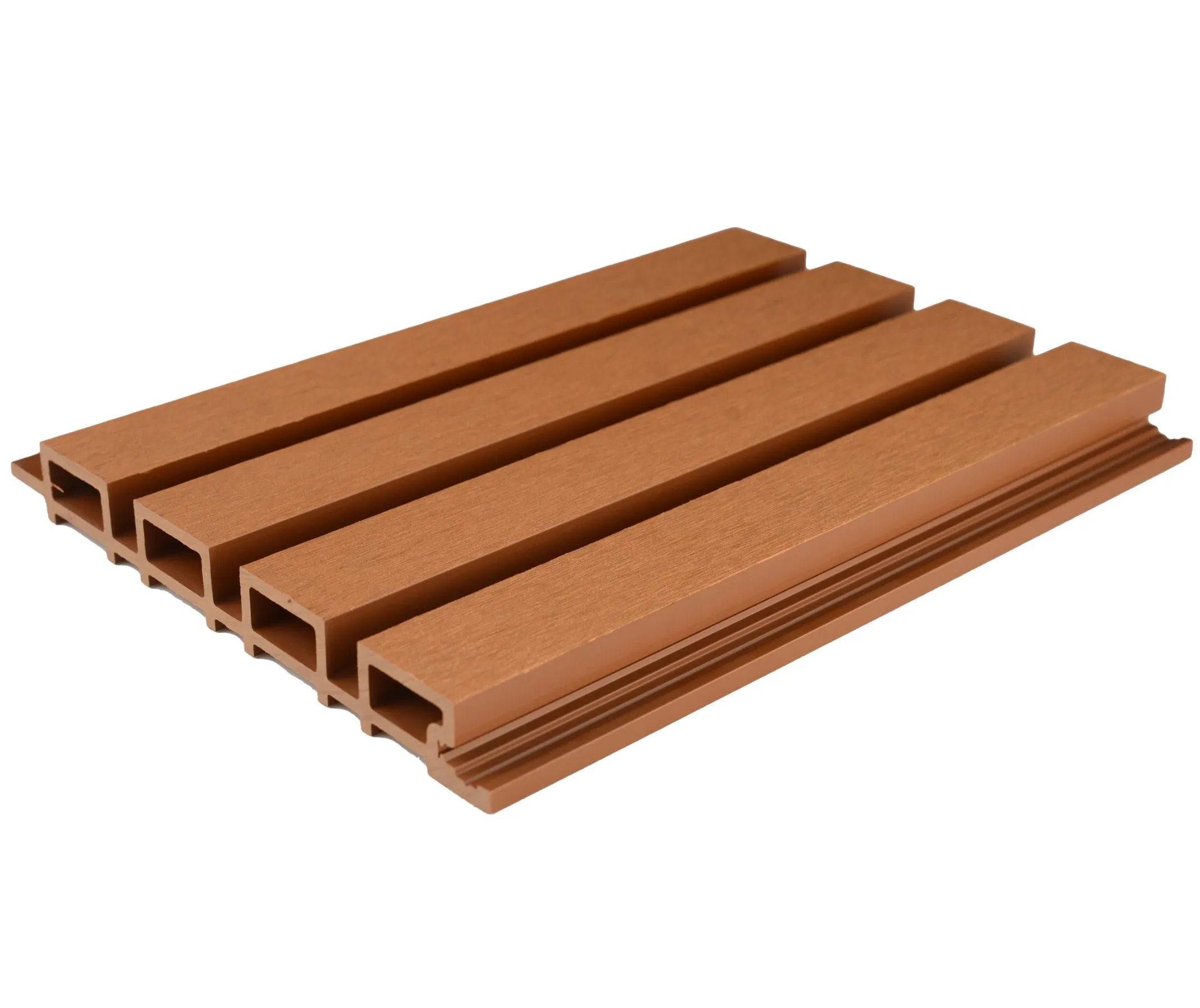

Easy to Install No-Maintenance Sanding Grooved Uncapped WPC Wall Cladding for Exterior 8"

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.FC-03 MaterialWPC (Wood Plastic Composite)
UsageOutdoor Cladding ProfileFluted / Hollow
SurfaceSanded / Smooth / 3D Embossed SeriesFlutedclad
Color OptionsTeak, Brown, Coffee, Gray, Charcoal, etc. StructureHollow (Square Cavities)
ProcessCo-Extruded Capped HS Code3925900000
Dimension219mm x 26mm x 2900mm Capacity20,000 tons/Year
High-Performance Composite Wall Cladding

Our composite wall cladding is engineered to enhance outdoor spaces by combining recycled materials with aesthetic beauty. Utilizing 95% environmentally friendly raw materials, it offers over ten surface treatments and 200+ color options. The FC-03 model features an elegant fluted profile with vertical grooves, delivering a modern architectural look for both interior accent walls and exterior façades.

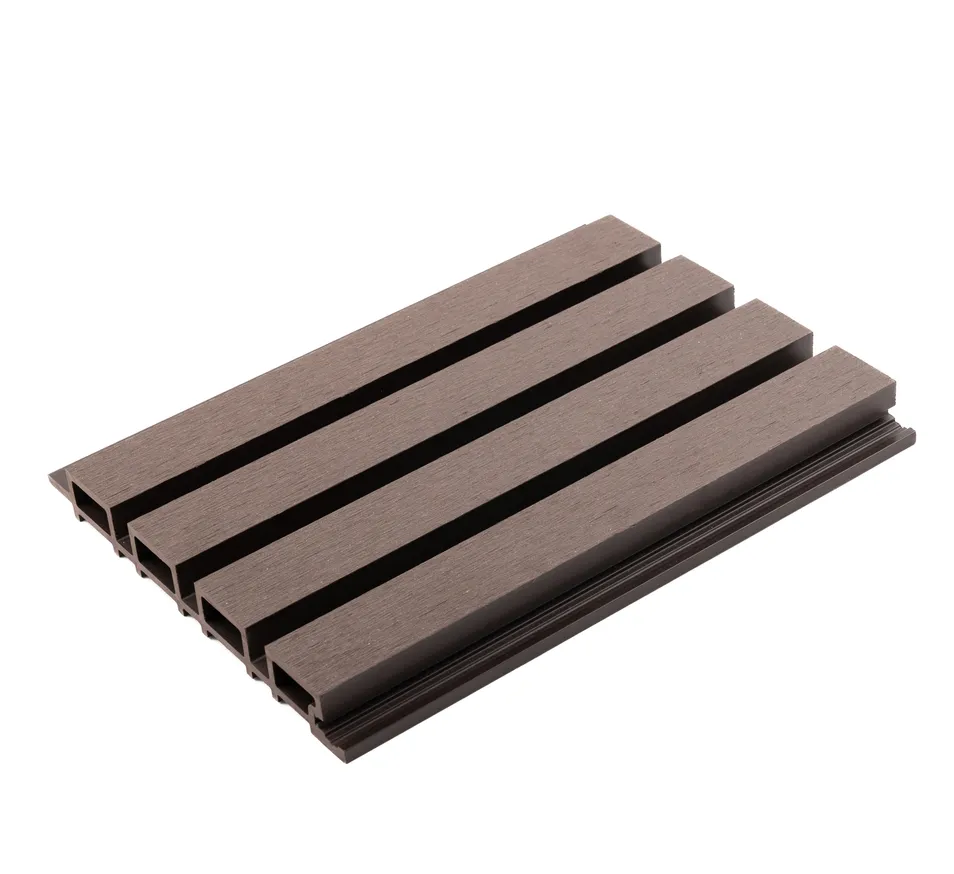

WPC Wall Cladding Details

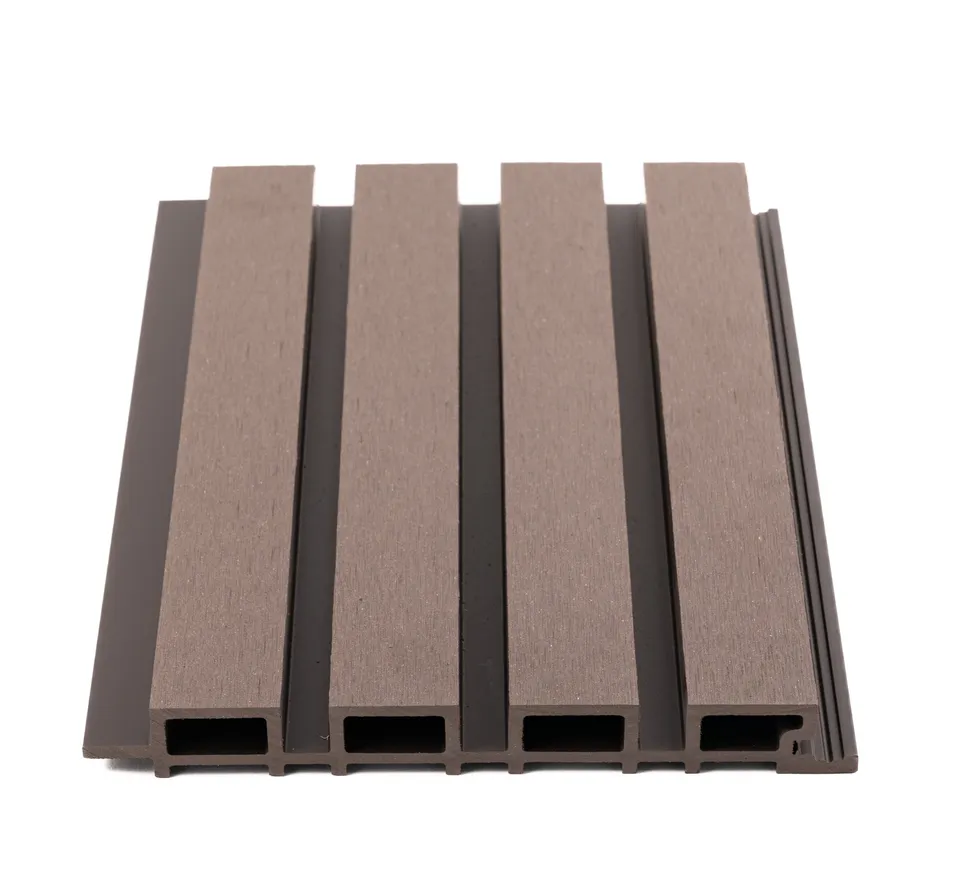

Fluted Wall Cladding Installation
Technical Specifications
Material & Size
  • Core: Wood Fiber + Recycled Plastic + Additives
  • Shell: HDPE Capped
  • Total Width: 219mm (Exposed Face: 200mm)
  • Thickness: 26mm
  • Weight: 8.555 kg per piece
  • Coverage: Approx. 1.724 pcs per m²
Performance Features
  • 100% Waterproof & Moisture-resistant
  • High UV resistance & Anti-fading technology
  • Termite-proof & Corrosion-resistant
  • Low maintenance: No painting or staining required
  • Environmentally compliant (RoHS standard)

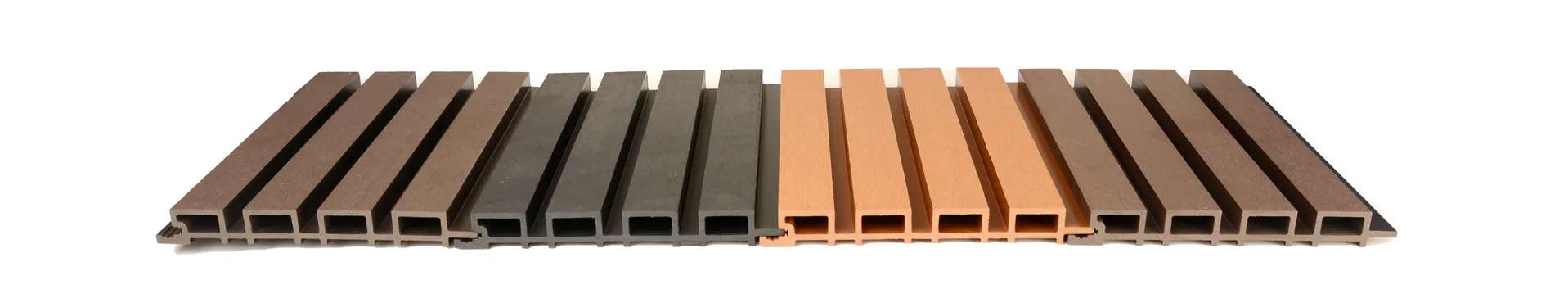

Technical Banner
Surface Texture Variations

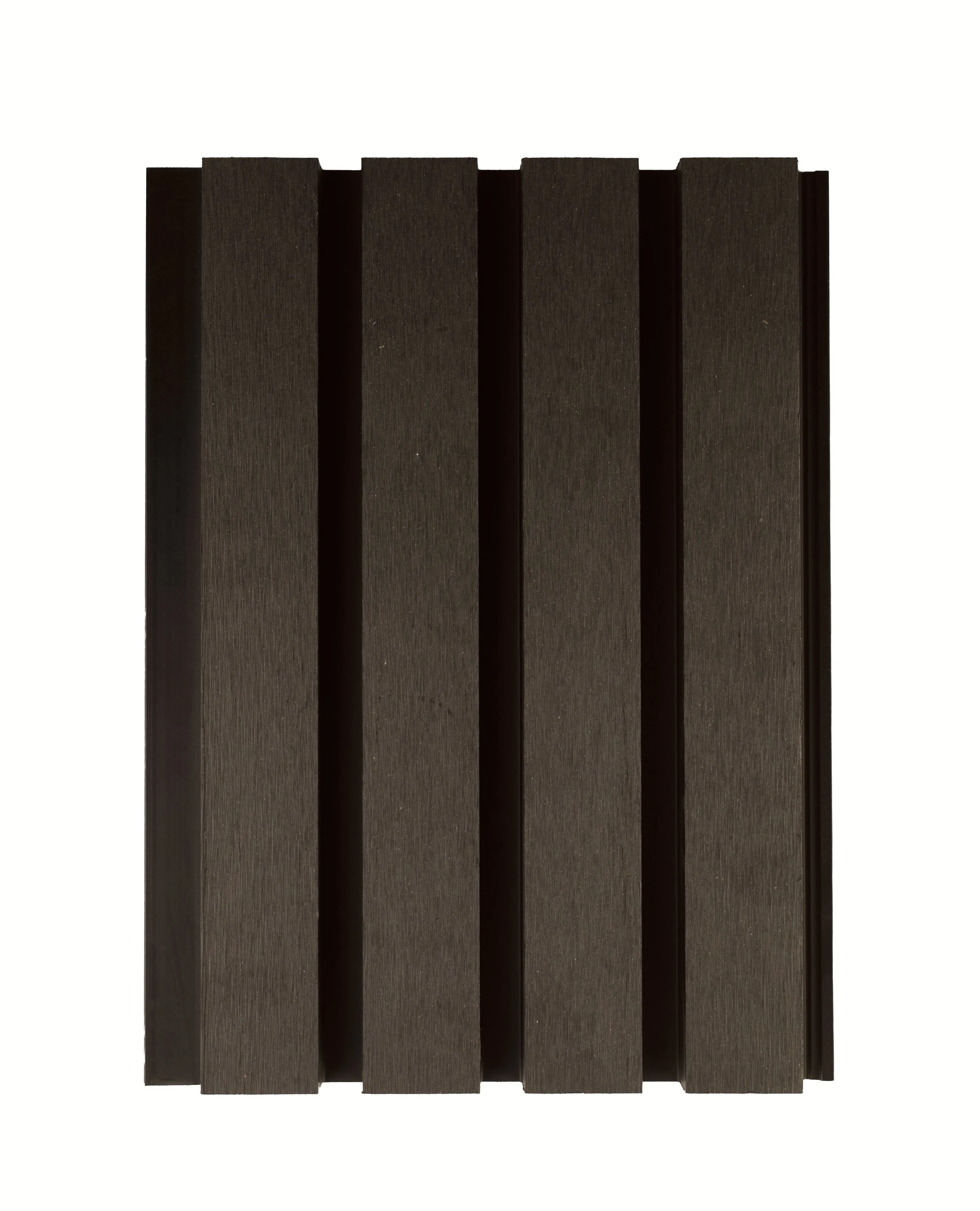

Face side 1

Option 1: Smooth Finish

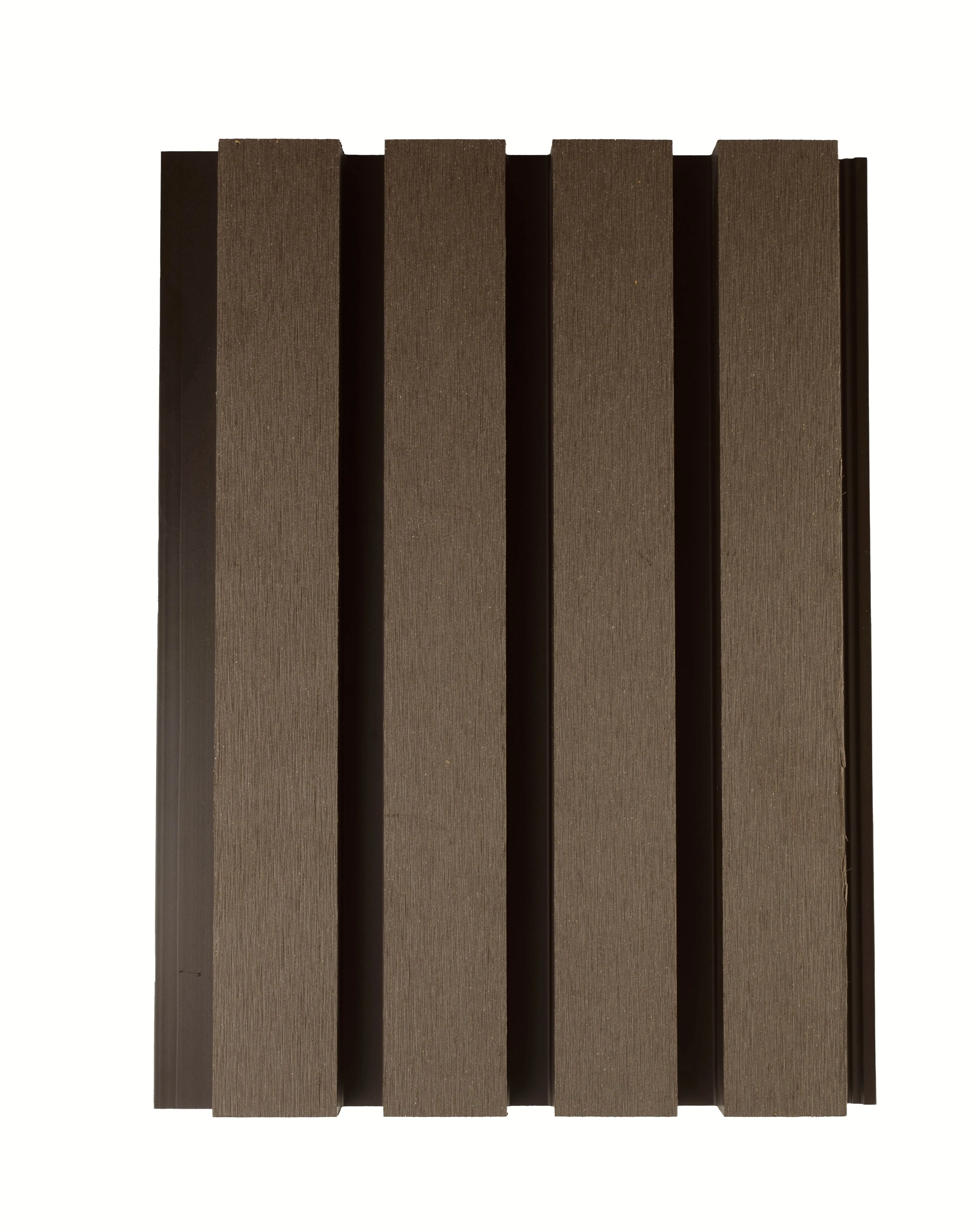

Face side 2

Option 2: Sanded Finish

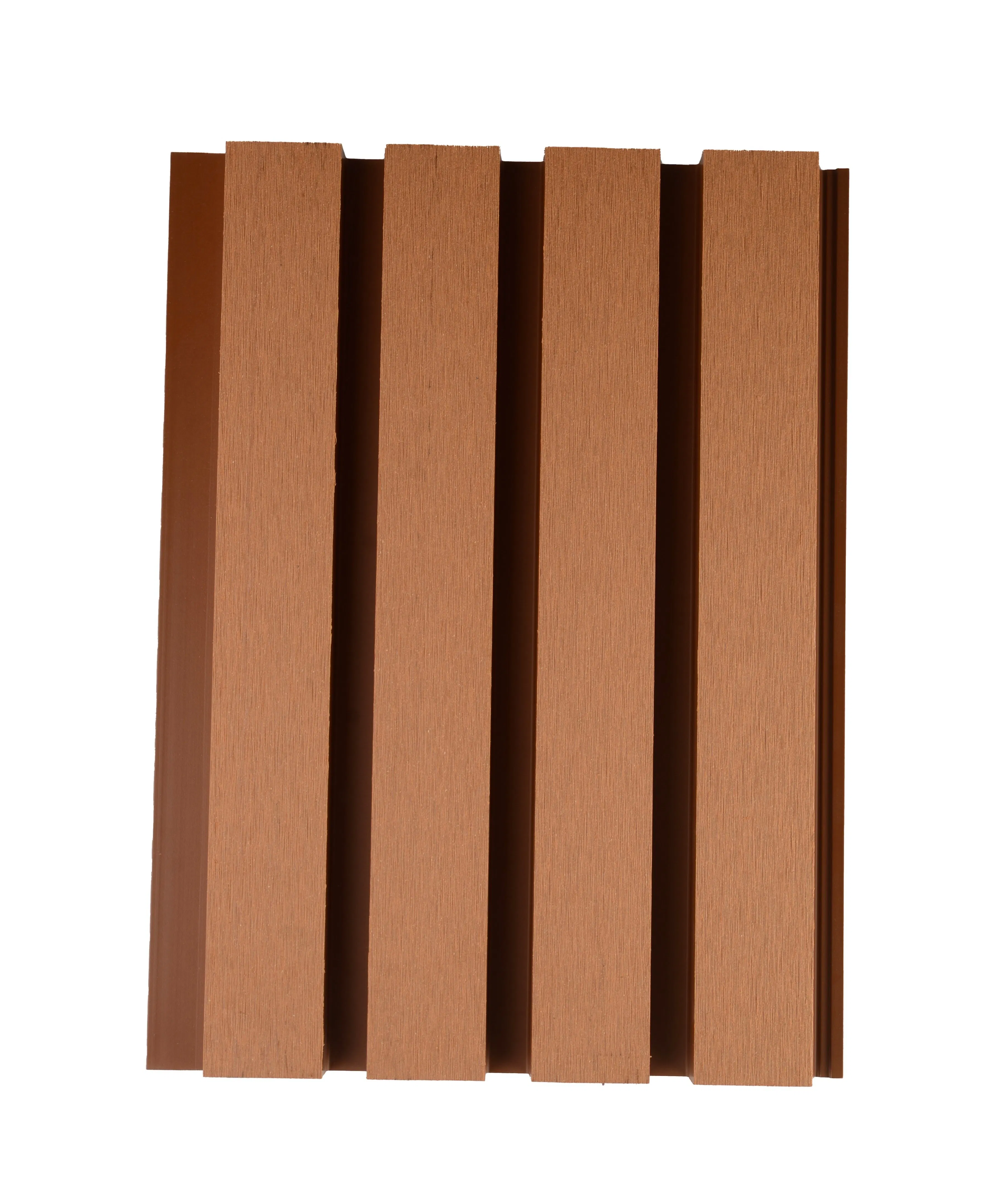

Face side 3

Option 3: Embossed Pattern

Installation & Design
Installation Video Cover
Key Installation Notes
  • Substructure: Ensure battens are level and straight.
  • Acclimation: Allow 24h outdoor exposure before fitting.
  • Expansion: Leave proper gaps for thermal movement.
  • Hidden Fasteners: Use specialized clips for a clean finish.
  • Cutting: Use fine-tooth blades, cutting from the back side.

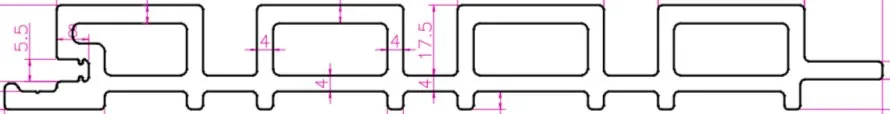

Dimensions
Inspiring Applications

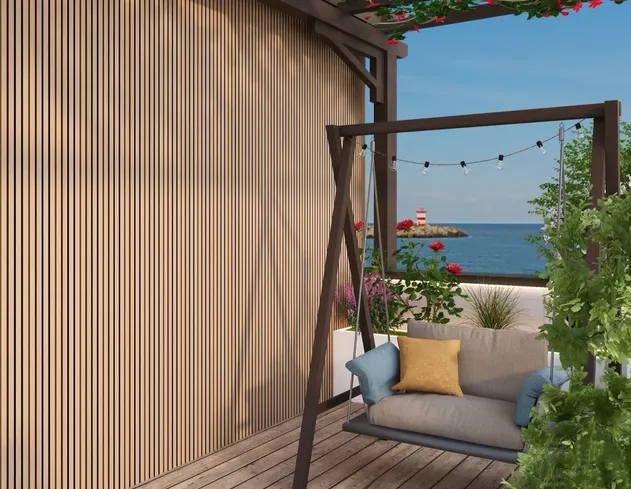

Residential Application

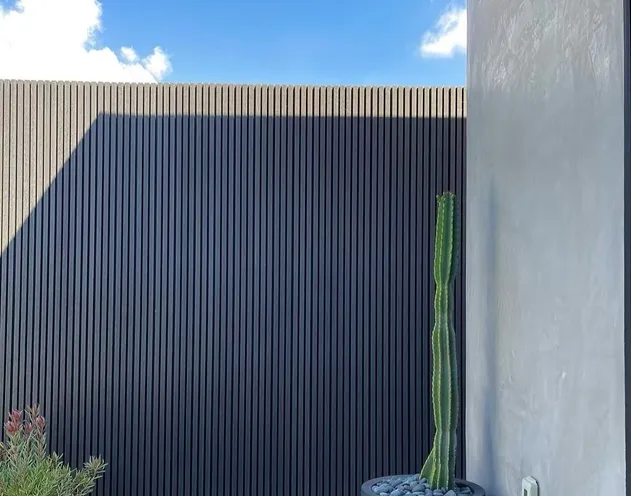

Commercial Application

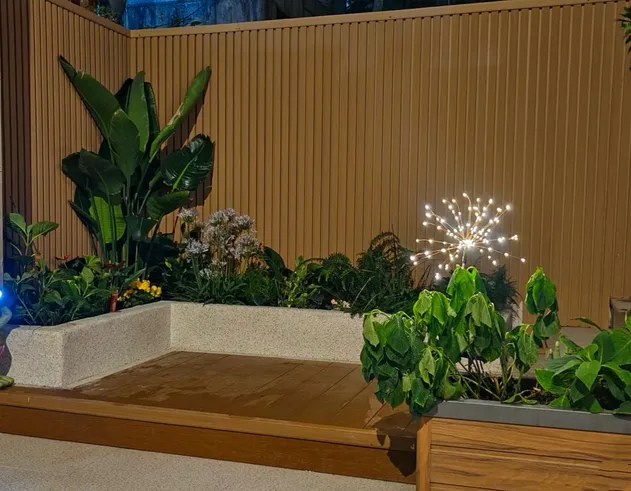

Modern Wall Facade
Quality Control & Process

Our manufacturing facility is certified to ISO 9001, CE, and ASTM standards. We export to over 50 countries, offering reliable WPC products backed by R&D innovation and rigorous quality control protocols.

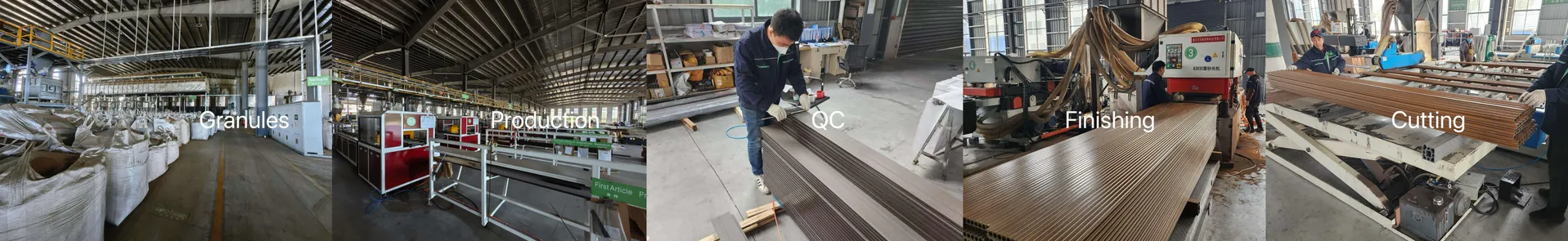

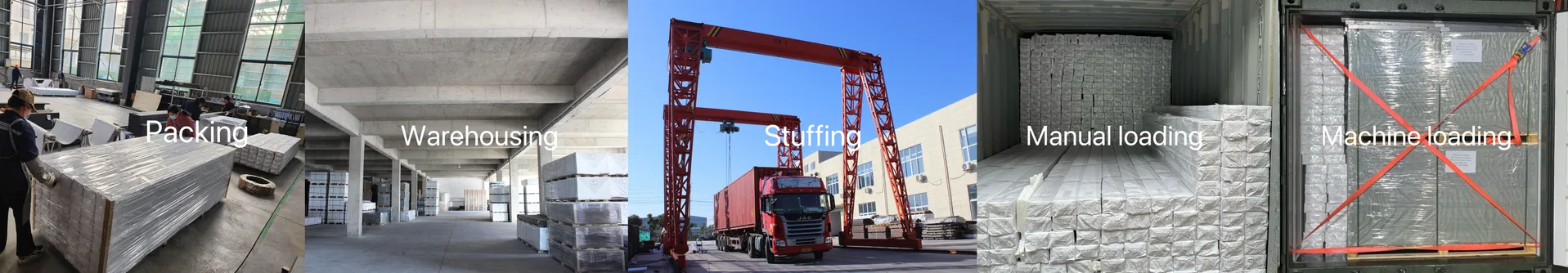

Process Flow 1 Process Flow 2
Frequently Asked Questions
What is the Minimum Order Quantity (MOQ) for trial orders?
The MOQ is 200 m² per color. Small trial orders or mixed models are acceptable to help you get started without significant upfront inventory.
What is the standard lead time for orders?
Standard models ship within 15–30 days per container. Customized units typically require 30–45 days. Priority production is available for urgent requirements.
Do you provide overseas after-sales support?
Yes. If products are damaged during shipment or do not meet specifications, we provide active cooperation and replacements in the subsequent shipment.
Which delivery ports are available?
We regularly ship from Shanghai, Lianyungang, and Qingdao. However, we can ship to any destination port worldwide through our ocean freight network.
Can I request customized panel lengths?
Absolutely. While we recommend 2.4M (8ft) or 2.9M (10ft) for maximum container efficiency, we can tailor lengths to meet your specific project requirements.
What documents are provided for international export?
We provide a full export package including the Commercial Invoice, Packing List, Bill of Lading, and Certificate of Origin (CO).
